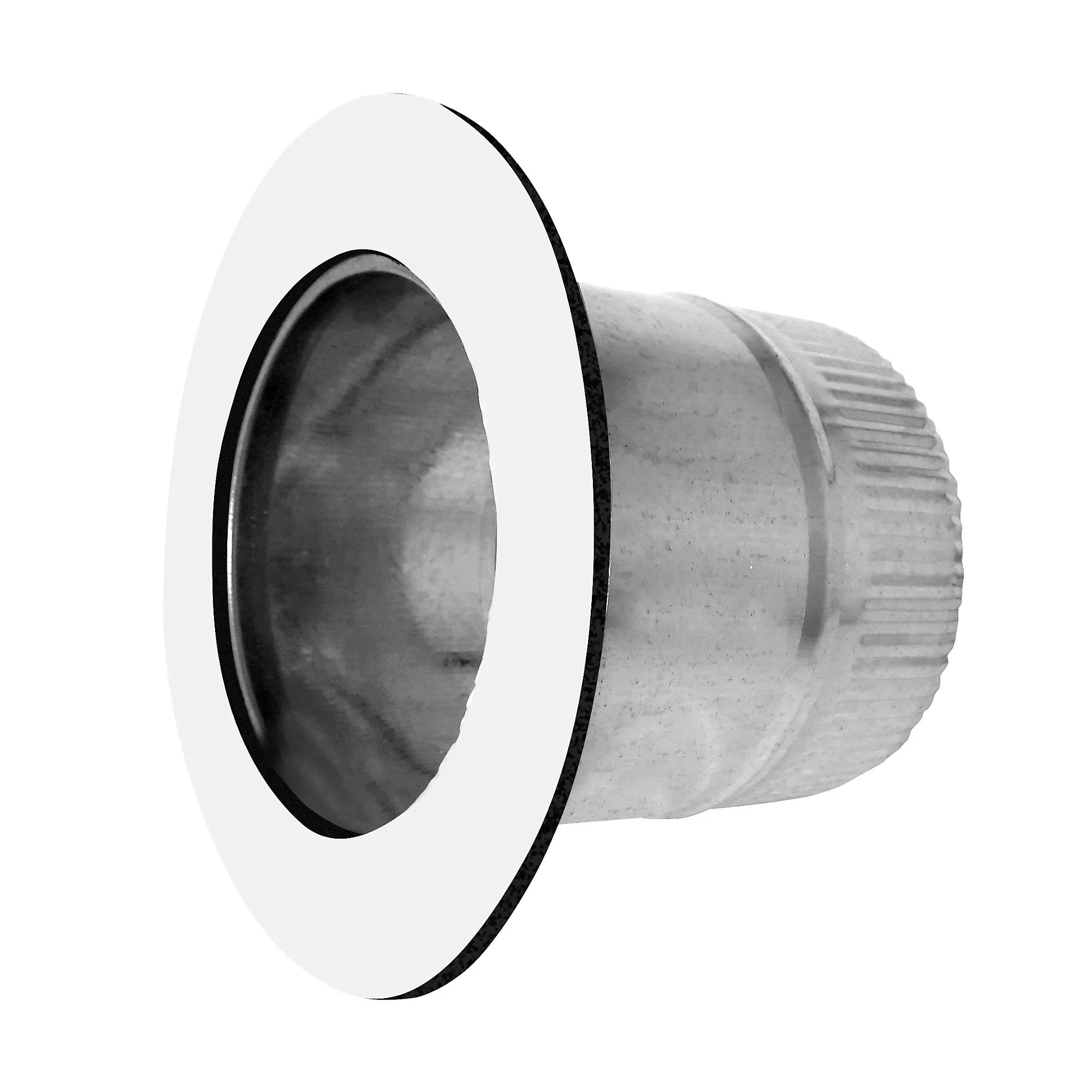

Southwark Metal ATT12 12 Inch Takeoff Collar Plain

Product Description

The Southwark Metal ATT12 offers a reliable solution for connecting branches of ductwork in HVAC systems. This 12 inch takeoff collar enables streamlined airflow management and is crafted from durable galvanized steel, ensuring longevity and performance.

• Features a high-tack neoprene foam gasket for superior sealing.
• Equipped with four pre-drilled screw holes for easy installation.
• Designed to withstand pressures up to 4 inches water gauge.

Product Highlights

Optimized for professional HVAC installations, the ATT12 is essential for efficient air distribution within both commercial and residential buildings. Its air-tite design minimizes air leakage, contributing to overall system efficiency.

Product Information

Standard Information

• MPN: ATT12
• Brand: Southwark Metal

Technical Specifications

• Gasket Dimensions: 9-3/4 inches diameter, 1-1/2 inches wide, 1/8 inches thick
• Crimp Length: 1-1/2 inches
• Tube Length: 5-3/4 inches
• Pressure Rating: 4 inches WG
• Finish: Hot Dip Galvanized
• Gauge: 28ga
• Weight: 1.446 lb
