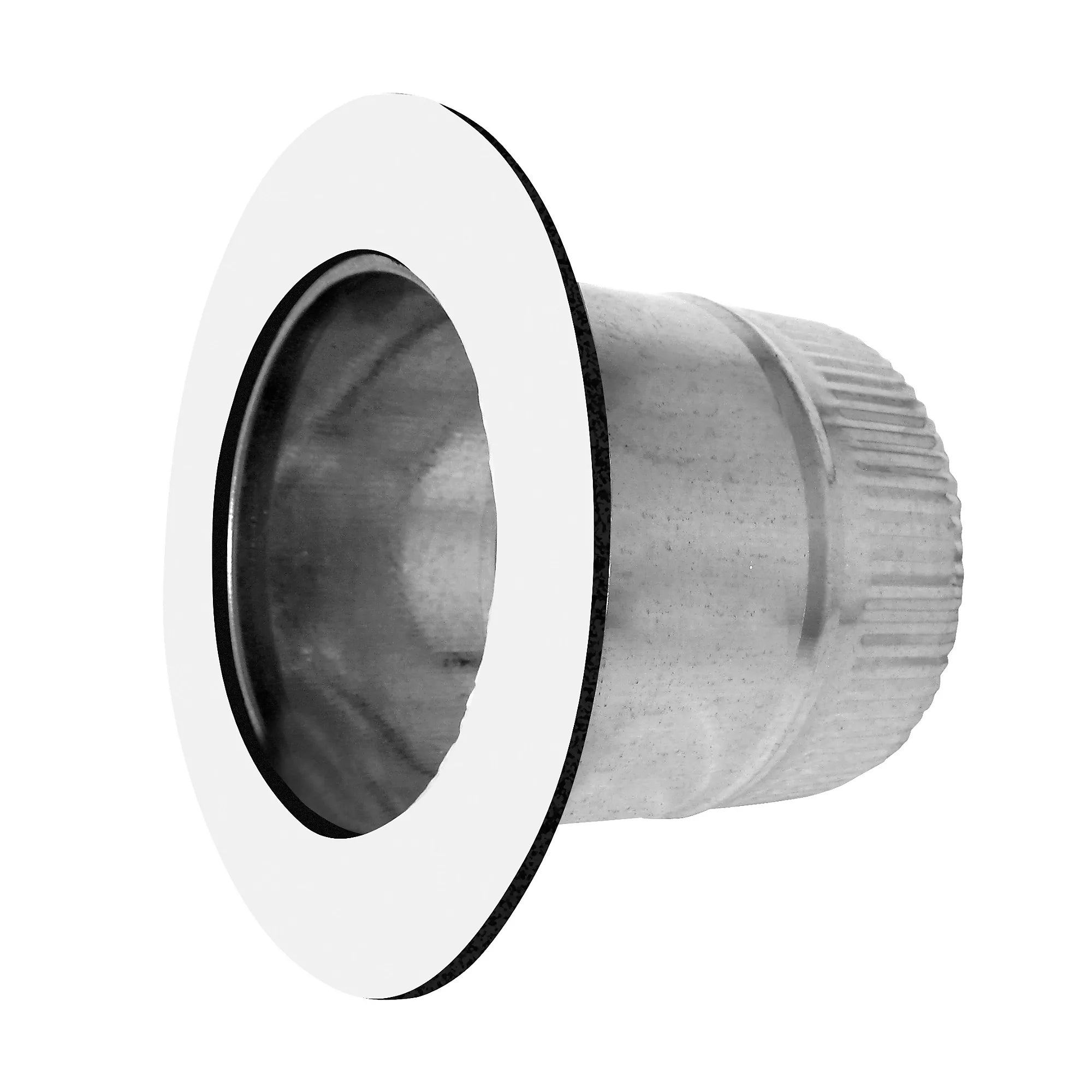

Southwark Metal ATT12 12 in Air-Tite Takeoff (12 in)

Product Description

Southwark Metal ATT12 is a 12-inch Air-Tite takeoff collar for connecting insulated flexible duct or round pipe to a flat surface. The collar is constructed of hot-dipped galvanized steel per ASTM A653 CS Type B and includes a 1-1/2 in. wide, 1/8 in. thick neoprene foam gasket (9-3/4 in. diameter), 1-1/2 in. crimp, 5-3/4 in. tube length, and a 4 in. WG pressure rating.

• Hot-dipped galvanized steel construction to ASTM A653 CS Type B
• 1-1/2 in. wide by 1/8 in. thick neoprene foam gasket; 9-3/4 in. gasket diameter
• 1-1/2 in. crimp length, 5-3/4 in. tube length, 4 in. WG pressure rating

Product Highlights

12 in airtight flanged takeoff collar with neoprene gasket for duct-to-surface connections

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: ATT12
• Country of Origin: United States

Technical Specifications

• Brand: Southwark Metal
• MPN: ATT12
• Product Name: 12 in Air-Tite Takeoff
• Diameter: 12 in
• Material: Hot-dipped galvanized steel per ASTM A653 CS Type B
• Gasket Width: 1-1/2 in
• Gasket Thickness: 1/8 in
• Gasket Diameter: 9-3/4 in
• Crimp Length: 1-1/2 in
• Tube Length: 5-3/4 in
• Pressure Rating: 4 in. WG
• Gauge: 28 ga
• Connection Type: Flanged
• Shape: Round
• Finish: Hot-dipped galvanized
• Series: ATT Series
• Weight: 2.0 lb
• Height: 6 in
• Length: 15 in
• Width: 15 in
• UPC: 099273528748
• Spec Sheet: https://pimmedia.winsupplyinc.com/pim/SPEC/112017/SOUTHWARK-METAL_ATT12_SMMATT12_SPEC.pdf
• Case Quantity: 12
