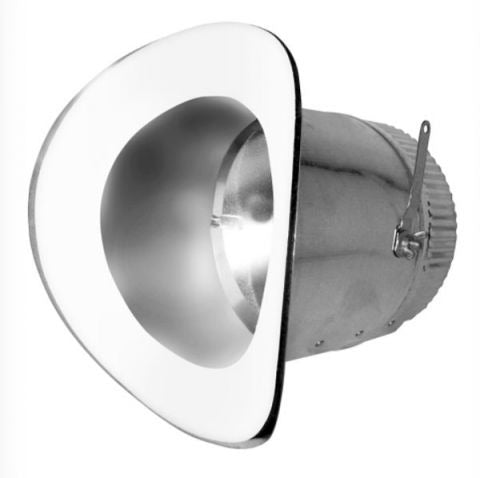

Southwark Metal ATDRP6 Saddle Take-Off With Damper (6 in)

Product Description

Southwark Metal ATDRP6 is a 6 in round Air-Tite saddle takeoff with an integrated damper for duct and venting applications. Constructed of 26 ga steel with a hot-dipped galvanized finish, it connects a 6 in round pipe to 7–12 in ductwork. The unit includes a two-quad damper with an 18 ga handle secured by a wingnut, a neoprene foam gasket, and an adjustable tube length of 6.5 to 14.75 in.

• 26 ga steel construction with hot-dipped galvanized finish
• Integrated two-quad damper with 18 ga handle secured by wingnut
• Fits 6 in round pipe and connects to 7–12 in duct; adjustable tube length 6.5 to 14.75 in; neoprene foam gasket

Product Highlights

Air-Tite saddle design for 6 in round ducts with neoprene gasket and adjustable tube length

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: ATDRP6

Technical Specifications

• Brand: Southwark Metal
• Manufacturer Part Number: ATDRP6
• UPC: 09927354116
• Series: ATDRP
• Type: Air-Tite round saddle takeoff with damper
• Material: Steel
• Gauge: 26 ga
• Finish: Hot-dipped galvanized
• Size: 6 in (fits 6 in round pipe)
• Fits Duct Range: Connects to 7-12 in ductwork
• Damper: Two-quad damper (26 ga)
• Damper Handle: 18 ga handle secured with wingnut
• Gasket: Neoprene foam, 1.5 in W x 1/8 in THK, adhesive-coated with four 1/8 in holes
• Tube Length: Adjustable 6.5 to 14.75 in
• Overlap: 1/2 in overlap with 1/8 in rivets
• Rivet Seam: RL-2 rivet seam
• Crimp: 1-1/4 in L crimp
• Weight: 2.0 lb
• Application: Residential and light commercial
• Standards: ACCA, SMACNA, NATE
• Packaging: EA (1) or BOX (12)
