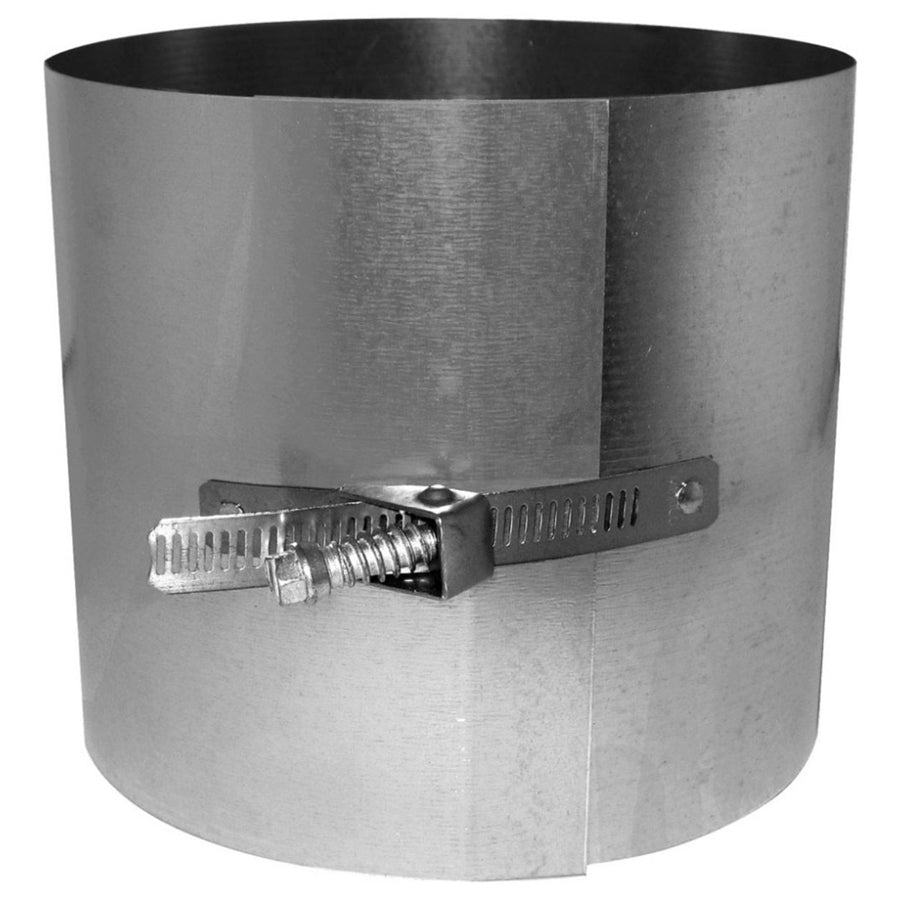

Southwark Metal 96-28GA_8IN Duct Draw Band 28 Gauge 8 Inch

Product Description

The SOUTHWARK METAL 96-28GA_8IN is a sheet metal duct draw band designed to create secure, pull-tight connections between round sheet metal duct sections. Constructed from hot dip galvanized steel at 28 gauge, this gear-clamp-style draw band is sized for 8-inch round ductwork. It is used in low-pressure forced-air distribution systems and is installed by HVAC technicians and sheet metal mechanics during new construction, system retrofits, or duct repair work. The galvanized finish provides corrosion resistance suitable for interior mechanical spaces.

This draw band is intended for use on 8-inch round sheet metal duct connections in residential and light commercial HVAC systems. It is suited for supply and return trunk-to-branch connections, duct collar tie-ins, and similar round-duct joining applications where a mechanically tight, code-acceptable closure is required. It conforms to ACCA and SMACNA applicable standards for sheet metal duct fabrication and assembly.

Key Features

• Hot dip galvanized steel construction resists corrosion in mechanical room and attic environments
• 28 gauge material thickness meets standard sheet metal duct fitting specifications
• Gear clamp draw band design provides uniform, even clamping pressure around the duct circumference
• Sized specifically for 8-inch round duct connections
• Meets ACCA and SMACNA applicable standards

Compatibility

Designed as a standard OEM-style draw band for 8-inch round sheet metal duct systems assembled per ACCA and SMACNA guidelines.

Installation Notes

Installation is performed by licensed HVAC technicians or sheet metal mechanics following SMACNA duct construction standards. Ensure the duct sections are fully seated before tightening the draw band to achieve an airtight joint. Mastic sealant or listed duct tape may be applied at the joint in accordance with local mechanical code requirements before or after clamping. Power down the air handling system before accessing duct connections in an active system.

Technical Specifications

• Size: 8 inches
• Material: Hot Dip Galvanized Steel
• Material Thickness: 28 Gauge
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 96-28GA_8IN
