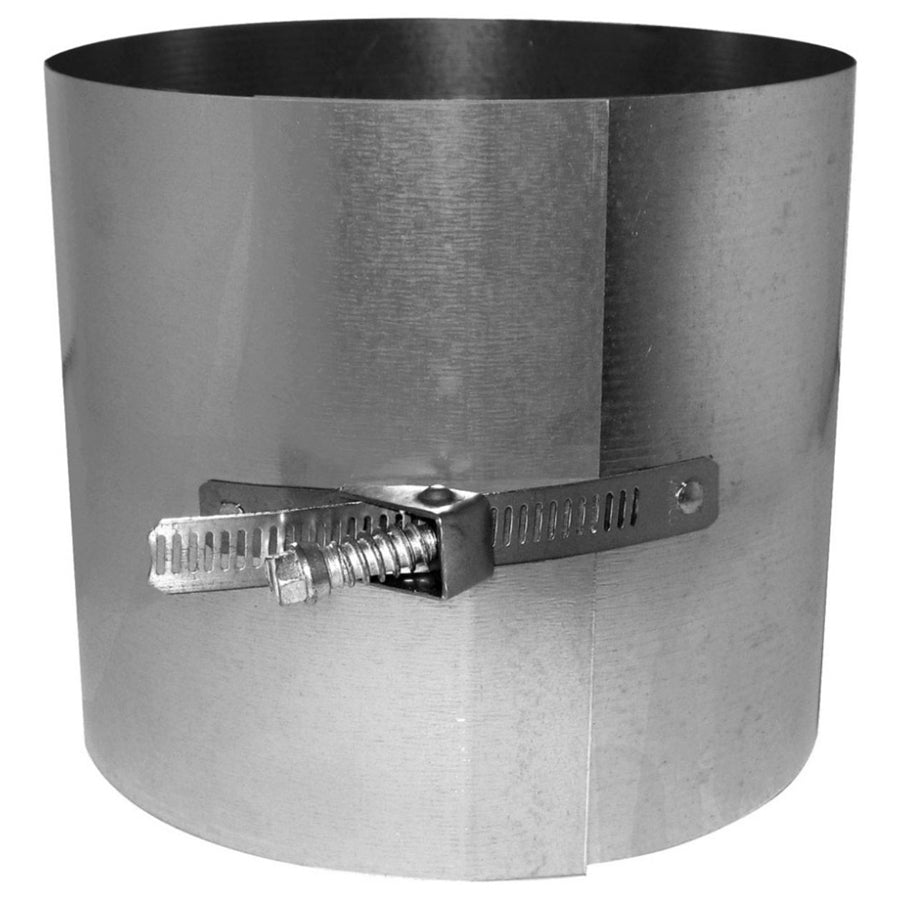

Southwark Metal 96-28GA_6IN Duct Draw Band 28GA 6 in

Product Description

The SOUTHWARK METAL 96-28GA_6IN is a 6-inch sheet metal duct draw band designed to create secure, airtight connections between round duct sections and fittings in low-pressure HVAC distribution systems. Fabricated from hot dip galvanized steel at 28 gauge, this gear-style clamp provides consistent clamping force around the duct circumference without deforming the duct wall. HVAC sheet metal mechanics and duct installers use draw bands like this one to pull duct joints together and lock them in place, reducing air leakage at connections. The galvanized finish resists corrosion in both conditioned and unconditioned spaces, including attics, crawl spaces, and mechanical rooms.

This draw band is suited for residential and light commercial ductwork installations where 6-inch round duct is used for branch runs, takeoffs, or trunk-to-branch transitions. It is appropriate for supply and return air applications in forced-air heating and cooling systems. Installers working to SMACNA and ACCA standards will find this fitting consistent with those guidelines for duct sealing and assembly practices.

Key Features

• 28 gauge hot dip galvanized steel construction for corrosion resistance in exposed and semi-exposed environments
• Gear clamp design provides even clamping force around the full duct circumference
• Sized for 6-inch round duct, a common branch run diameter in residential forced-air systems
• Meets applicable ACCA and SMACNA standards for duct assembly
• Compatible with standard slip-fit and drive-slip duct joints on round spiral and snap-lock duct

Compatibility

Designed as an OEM-style draw band for 6-inch round sheet metal duct systems assembled to SMACNA and ACCA standards in residential and light commercial forced-air HVAC applications.

Installation Notes

Draw bands are installed by HVAC sheet metal mechanics as part of duct system assembly. Power down the air handling unit and close the system before working on duct connections in live systems. Slide the draw band over the duct end before inserting the fitting, then tighten the gear clamp evenly to seat the joint without crushing the duct wall. Apply duct mastic or listed foil tape to the joint per SMACNA sealing class requirements before or after clamping depending on the sealing method used.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Material Thickness: 28 Gauge
• Size: 6 inches
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 96-28GA_6IN
