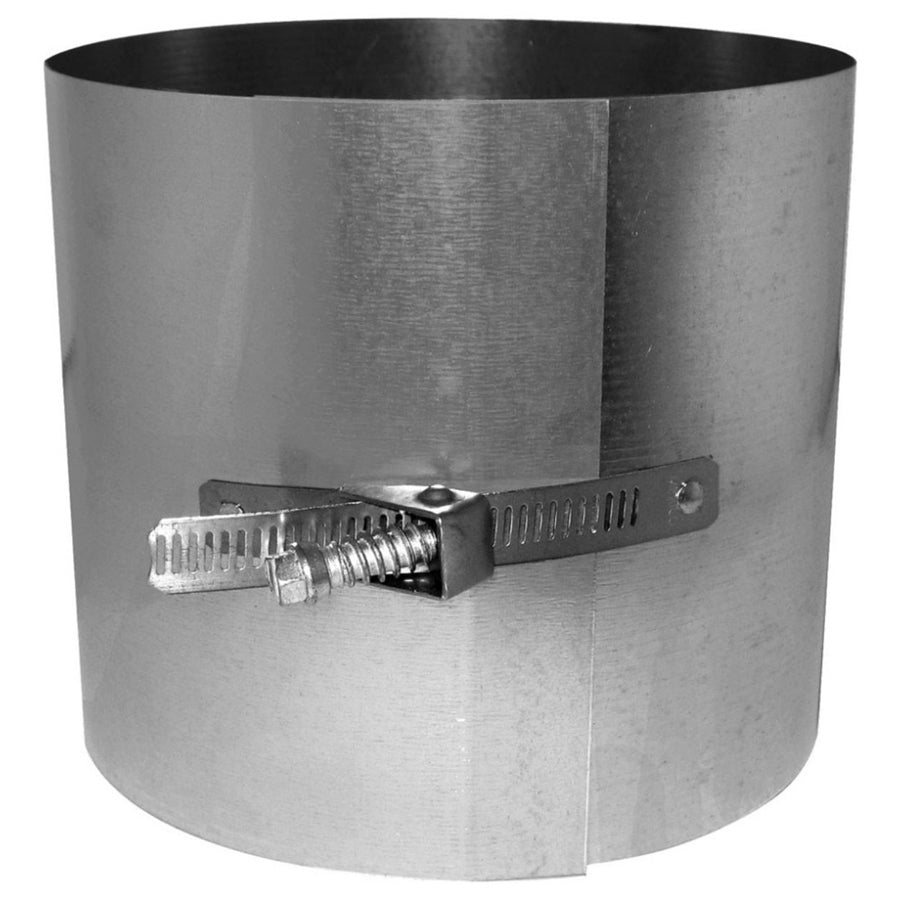

Southwark Metal 96-28GA_5IN Duct Draw Band 28 Gauge 5 Inch

Product Description

The SOUTHWARK METAL 96-28GA_5IN is a 5-inch sheet metal duct draw band designed to create secure, airtight connections between round duct sections in forced-air HVAC systems. Constructed from hot dip galvanized steel at 28 gauge, this gear-clamp-style draw band provides consistent clamping force around the duct collar, helping to maintain duct integrity and reduce air leakage at joints. It is installed by HVAC technicians during duct fabrication and system assembly in both new construction and retrofit applications. The galvanized finish resists corrosion in attic, crawlspace, and mechanical room environments where moisture exposure is common.

This draw band is suited for residential and light commercial HVAC ductwork where 5-inch round duct connections are required. Typical applications include branch takeoffs, trunk-to-boot transitions, and flex-duct collar connections in supply and return air systems. Compliance with ACCA and SMACNA standards makes it appropriate for installations where code-conforming duct construction is required by the authority having jurisdiction.

Key Features

• Hot dip galvanized steel construction resists corrosion in high-moisture environments
• 28 gauge material thickness provides strength without excess weight
• Gear clamp design delivers even clamping force around the full duct circumference
• Sized for 5-inch round duct connections
• Meets ACCA and SMACNA applicable standards for duct construction

Compatibility

Designed as an OEM-style duct fitting component for 5-inch round sheet metal ductwork in residential and light commercial forced-air HVAC systems built to ACCA and SMACNA standards.

Installation Notes

Installation is performed by licensed HVAC technicians or sheet metal workers during duct system assembly or repair. Power down the air handling unit and confirm the system is de-energized before working on duct connections. Seat the draw band fully over the duct joint before tightening to ensure even seating and an airtight seal. Follow local mechanical codes and SMACNA duct construction standards for joint sealing requirements, which may also require mastic or approved tape at the connection.

Technical Specifications

• Size: 5 inches
• Material: Hot Dip Galvanized Steel
• Material Thickness: 28 Gauge
• Type: Gear Clamp Draw Band
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 96-28GA_5IN
