Southwark Metal 96-28GA_12IN Duct Draw Band 28 Gauge 12 in

Product Description

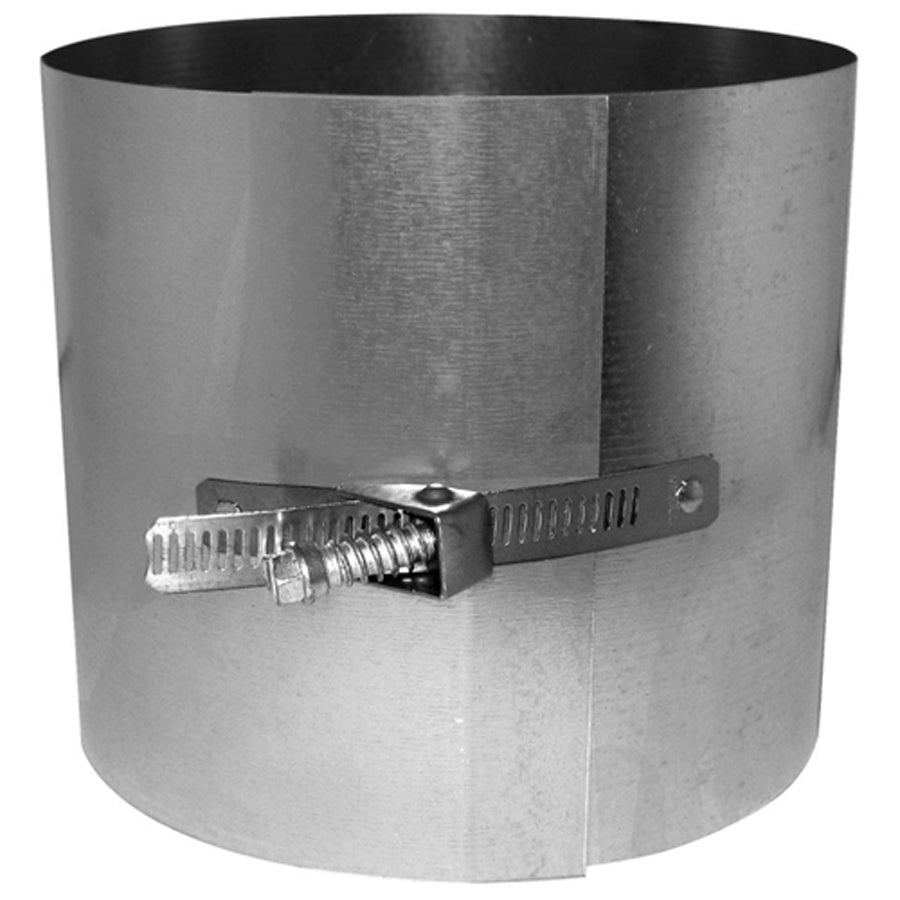

The SOUTHWARK METAL 96-28GA_12IN is a hot-dip galvanized steel sheet metal duct draw band sized for 12-inch diameter round ductwork. Draw bands provide a secure mechanical connection at duct joints, keeping sections properly seated and airtight during system operation. This band is fabricated from 28-gauge hot-dip galvanized steel, giving it corrosion resistance suited to both supply and return air duct systems. HVAC sheet metal installers and duct fabrication shops use this fitting in residential and light commercial forced-air systems where SMACNA and ACCA installation standards apply.

This draw band is intended for round sheet metal duct connections with a 12-inch diameter. It is commonly installed at duct-to-fitting transitions, trunk-to-branch connections, and other joints where a tight mechanical draw is required. The 28-gauge galvanized construction meets the material and thickness requirements referenced in SMACNA and ACCA ductwork standards, making it appropriate for new construction duct systems and retrofit or repair work on existing forced-air systems.

Key Features

• Hot-dip galvanized steel construction provides corrosion resistance for long-term duct system service
• 28-gauge material thickness meets SMACNA and ACCA applicable standards for sheet metal ductwork
• Sized for 12-inch diameter round duct connections
• Mechanical draw-band design creates a firm, secure joint between duct sections
• Compatible with standard round sheet metal duct fittings and trunk connections

Compatibility

Designed for use with 12-inch diameter round sheet metal ductwork. Meets applicable ACCA and SMACNA standards for sheet metal duct draw band connections in forced-air HVAC systems.

Installation Notes

Installation is typically performed by licensed sheet metal workers or HVAC installers following SMACNA duct construction standards. Ensure the duct joint is fully seated before tightening the draw band to achieve a proper seal. Sheet metal screws and approved duct sealant or mastic are commonly used in conjunction with draw bands at joints per SMACNA guidelines. Always de-energize the air handling system before working on connected duct sections.

Technical Specifications

• Material: Hot Dipped Galvanized Steel
• Material Thickness: 28 Gauge
• Size: 12 inches Diameter
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 96-28GA_12IN
