Southwark Metal 96-28GA_10IN Duct Draw Band 28 Gauge 10 Inch

Product Description

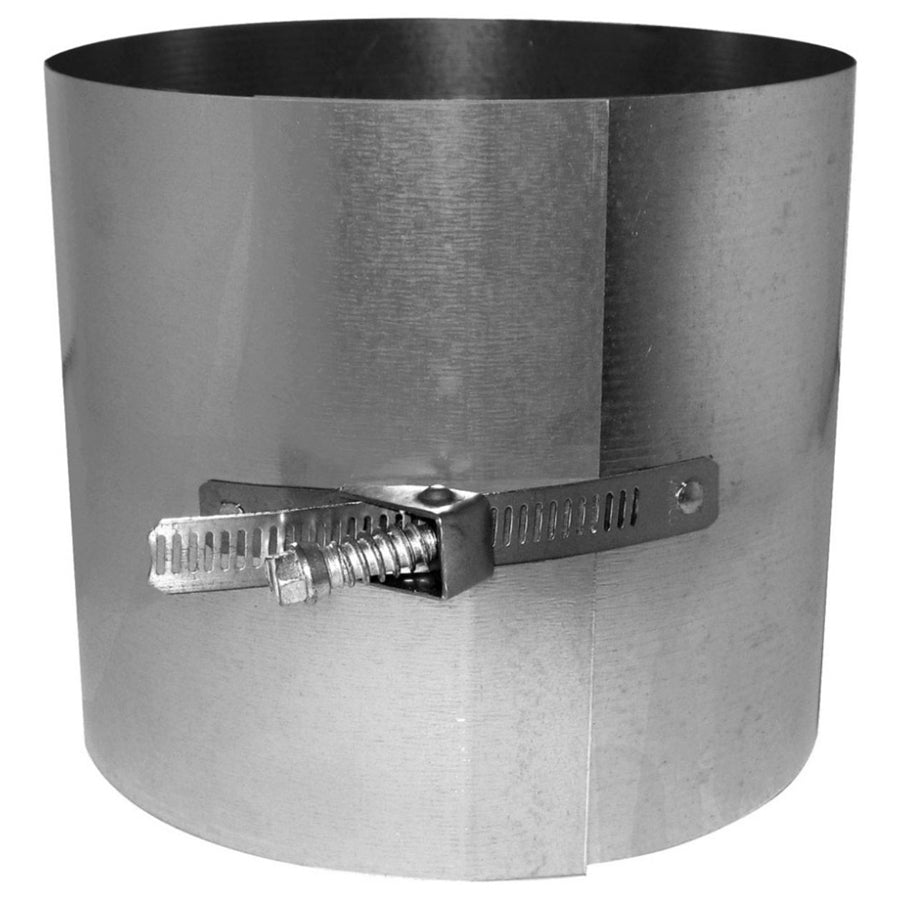

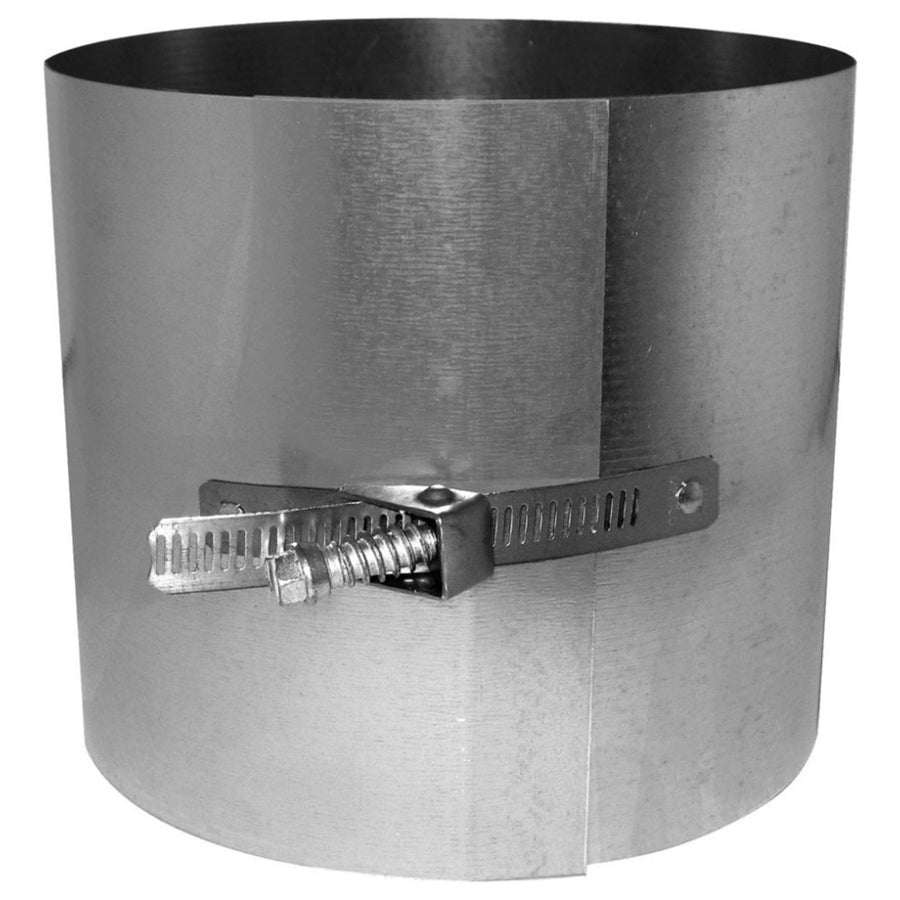

The SOUTHWARK METAL 96-28GA_10IN is a 10-inch sheet metal duct draw band designed to secure round sheet metal ductwork connections in forced-air HVAC systems. Constructed from hot-dip galvanized steel at 28 gauge, this gear-clamp-style draw band creates a tight, uniform seal around duct joints and collar connections. The galvanized finish resists corrosion in both conditioned and unconditioned spaces, including attics, crawlspaces, and mechanical rooms. HVAC sheet metal mechanics and duct installers rely on draw bands like this one to meet SMACNA and ACCA duct construction and installation standards on residential and light commercial projects.

This draw band is suited for round duct connections where a secure, code-compliant mechanical fastening method is required. It is used in forced-air heating, cooling, and ventilation duct systems during new construction and retrofit installation. The 10-inch nominal size fits standard 10-inch round sheet metal duct collars and fittings. Installation typically follows SMACNA and ACCA guidelines for duct sealing and joining, making it appropriate for both residential and light commercial duct assemblies.

Key Features

• Hot-dip galvanized steel construction for corrosion resistance in unconditioned and conditioned spaces
• 28 gauge material thickness meets SMACNA duct construction standards for draw band applications
• 10-inch nominal size fits standard round sheet metal duct and fittings
• Gear-clamp style design provides uniform clamping force around the duct joint circumference
• Meets ACCA and SMACNA applicable standards for duct installation

Compatibility

Designed as an OEM-style mechanical fastener for use with 10-inch round sheet metal ductwork in residential and light commercial forced-air HVAC systems constructed to SMACNA and ACCA standards.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal mechanics. The duct system should be depressurized and the air handler or furnace powered down before making duct connections. Draw bands are typically installed in conjunction with duct sealant or mastic per SMACNA installation guidelines. Follow all local mechanical codes and ACCA/SMACNA standards for duct joint fastening requirements.

Technical Specifications

• Size: 10 inches
• Material: Hot Dip Galvanized Steel
• Material Thickness: 28 Gauge
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 96-28GA_10IN
