Southwark Metal 91_10X10 Sheet Metal Duct Box 10x10

Product Description

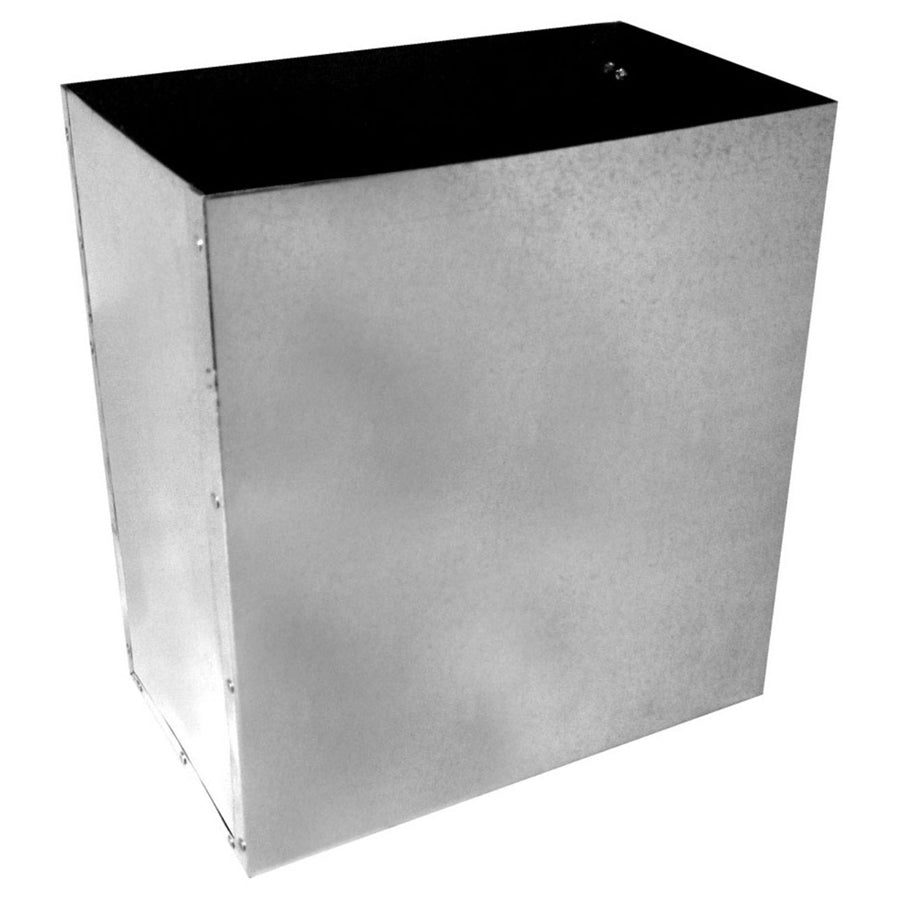

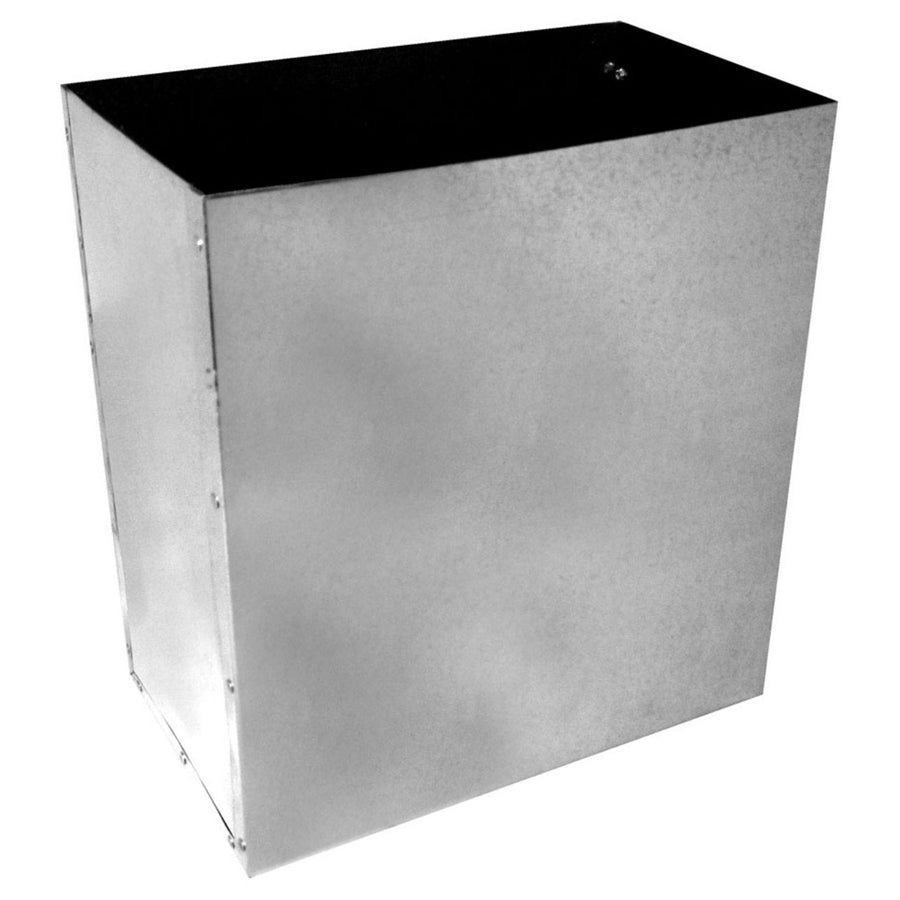

The SOUTHWARK METAL 91_10X10 is a sheet metal duct box designed for floor register applications in residential and light commercial HVAC systems. Fabricated from hot dip galvanized steel, this duct box provides a durable, corrosion-resistant transition point between the supply duct and the floor register opening. The box measures 10 inches by 10 inches with an 11-inch depth, making it well suited for standard floor register cutouts. HVAC installers and sheet metal contractors use this type of duct box to terminate supply runs cleanly at finished floor level.

This duct box is used in forced-air heating and cooling systems where supply air is delivered through floor registers. It fits into standard floor framing cavities and accepts a 10 inch by 10 inch floor register. Typical installations occur in new construction and retrofit projects where a neat, code-compliant supply air termination is required at the floor plane. Manufactured to ACCA and SMACNA standards, it is appropriate for residential and light commercial ducted system applications.

Key Features

• Hot dip galvanized steel construction for corrosion resistance in duct environments
• 10 inch by 10 inch opening matches standard floor register sizing
• 11-inch depth accommodates typical floor joist cavity installations
• Manufactured to ACCA and SMACNA applicable standards
• Designed for floor register supply air termination in forced-air systems

Compatibility

Designed as an OEM-style sheet metal duct box for use with 10 inch by 10 inch floor registers in residential and light commercial forced-air HVAC systems built to ACCA and SMACNA standards.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal contractor. Shut down the air handling system before connecting or sealing the duct box into the supply trunk or branch run. Seal all joints with UL-listed duct sealant or approved metal tape per SMACNA guidelines to minimize air leakage. Ensure the box is properly supported and that the floor register opening is cut to the correct dimensions before securing the unit in place.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Opening Size A: 10 inches x 10 inches
• Opening Size B: 10 inches x 10 inches
• Depth: 11 inches
• Type: Floor Register Duct Box
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 91_10X10
