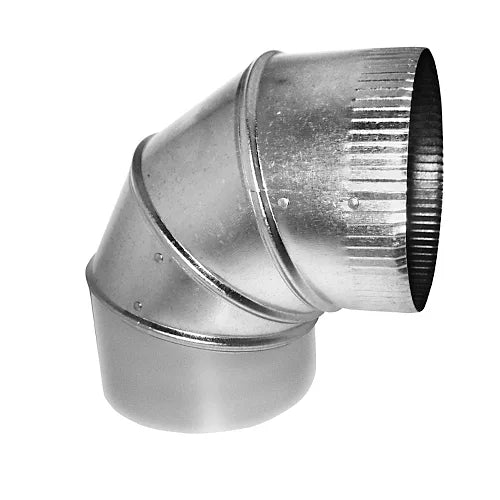

Southwark Metal 901426 90 Degree Adjustable Elbow 14 Inches 26 Gauge

Product Description

The Southwark Metal 901426 is a 90 degree adjustable elbow designed for round duct systems in residential and commercial HVAC installations. This fitting measures 14 inches in diameter and is fabricated from 26 gauge hot dipped galvanized steel that meets ASTM A653 CS Type B standards. The galvanized coating provides corrosion resistance, making this elbow suitable for supply and return air applications where long service life is expected. HVAC technicians and sheet metal contractors rely on this type of fitting to redirect airflow at a 90 degree angle within ductwork runs, navigating around structural obstacles such as beams, joists, and walls. The round shape ensures consistent airflow with minimal turbulence at the bend point. The crimped male connection end allows the fitting to slide into adjacent duct sections, while the straight female connection end receives the next duct segment. This four-piece assembly spans the 3 inches through 20 inches size range and includes a 1 inch crimp length for a secure joint. The 1/2 inch overlap on the female end is designed for riveting using 1/8 inch rivets, giving installers a reliable mechanical fastening option. At 4.5 pounds, the 901426 is manageable for a single technician to handle during installation. It ships as a single unit and is manufactured in the USA. This fitting is a standard component in forced air heating and cooling systems, makeup air units, and ventilation systems where 14 inch round ductwork is specified. HVAC pros working with larger diameter duct runs will find this elbow straightforward to install with standard sheet metal tools.

• 26 gauge hot dipped galvanized steel construction per ASTM A653 CS Type B for corrosion resistance and durability
• Crimped male connection and straight female connection for easy integration into existing 14 inch round ductwork systems
• 1/2 inch overlap for riveting with 1/8 inch rivets and 1 inch crimp length for a secure, airtight joint

Product Highlights

The Southwark Metal 901426 delivers a reliable 90 degree turn in 14 inch round duct systems using heavy-duty galvanized steel construction and a straightforward four-piece assembly that installs with standard HVAC sheet metal techniques.

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 901426

Technical Specifications

• Diameter: 14 inches
• Bend Angle: 90 degrees
• Gauge: 26 GA
Material: Galvanized Steel
• Material Standard: ASTM A653 CS Type B
• Connection Type: Crimped Male and Straight Female
• Crimp Length: 1 inch
• Overlap for Riveting: 1/2 inch
• Rivet Size: 1/8 inch
• Assembly: 4-piece
• Shape: Round
• Weight: 4.56 pounds
• Height: 17.5 inches
• Length: 17.5 inches
• Width: 14 inches
• Galvanized Coating: Yes
• Country of Origin: USA
• UOM: EA
• UPC: 099274524701
