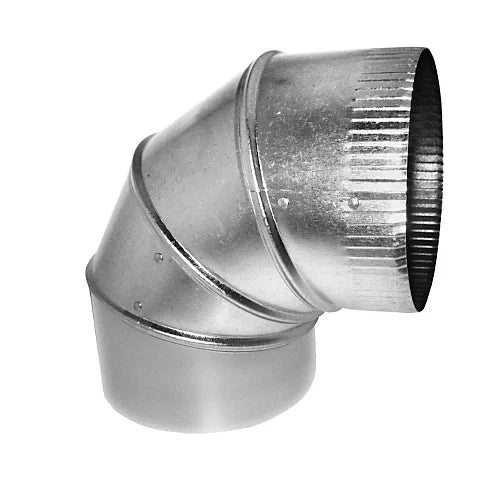

Southwark Metal 901028A 10 Inch 90 Degree Round Galvanized Steel Duct Elbow 28 Gauge

Product Description

The Southwark Metal 901028A is a 10 inch round galvanized steel duct elbow designed for 90 degree turns in sheet metal ductwork systems. This fitting is built for HVAC installers, sheet metal contractors, and mechanical contractors who need a reliable, code-compliant elbow for residential and light commercial air distribution work. The 901028A is fabricated from 28 gauge galvanized steel, giving it the rigidity and corrosion resistance required for long-term performance in forced air heating and cooling systems. The galvanized coating protects the steel from rust and moisture, which is especially important in unconditioned spaces such as attics, crawl spaces, and mechanical rooms. At 10 inches in diameter, this elbow is a common size used in main trunk branch takeoffs and larger supply or return duct runs. The 90 degree bend angle allows installers to make sharp directional changes in duct routing while maintaining consistent airflow through the system. Proper elbow selection directly impacts system efficiency and static pressure, and the 901028A delivers a clean, tight fit that minimizes air leakage at connections. This fitting is manufactured in the United States and sold individually, making it easy to order exact quantities needed for a job. Southwark Metal has been a trusted name in sheet metal duct products for decades, and the 901028A reflects that commitment to quality fabrication and consistent dimensional accuracy. HVAC technicians and sheet metal workers rely on Southwark fittings for predictable fit-up and straightforward installation on the job site.

• 10 inch round duct elbow with a 90 degree bend angle for directional changes in HVAC ductwork
• Fabricated from 28 gauge galvanized steel for strength and long-term corrosion resistance
• Made in the USA and sold individually for precise job site quantity control

Product Highlights

The Southwark Metal 901028A delivers a durable, accurately fabricated 90 degree elbow for 10 inch round ductwork, built from galvanized steel for lasting performance in residential and commercial HVAC installations.

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 901028A

Technical Specifications

• Diameter: 10 inches
• Bend Angle: 90 Degrees
• Gauge: 28 GA
• Shape: Round
• Material: Galvanized Steel
• Galvanized Coating: Yes
• Adjustable: No
• Height: 13.75 inches
• Length: 13.5 inches
• Width: 10 inches
• Weight: 2.47 pounds
• Country of Origin: USA
• Unit of Measure: Each
• Prop 65: Yes
