Southwark Metal 78_14X12X12 Duct Wye Branch 14x12x12

Product Description

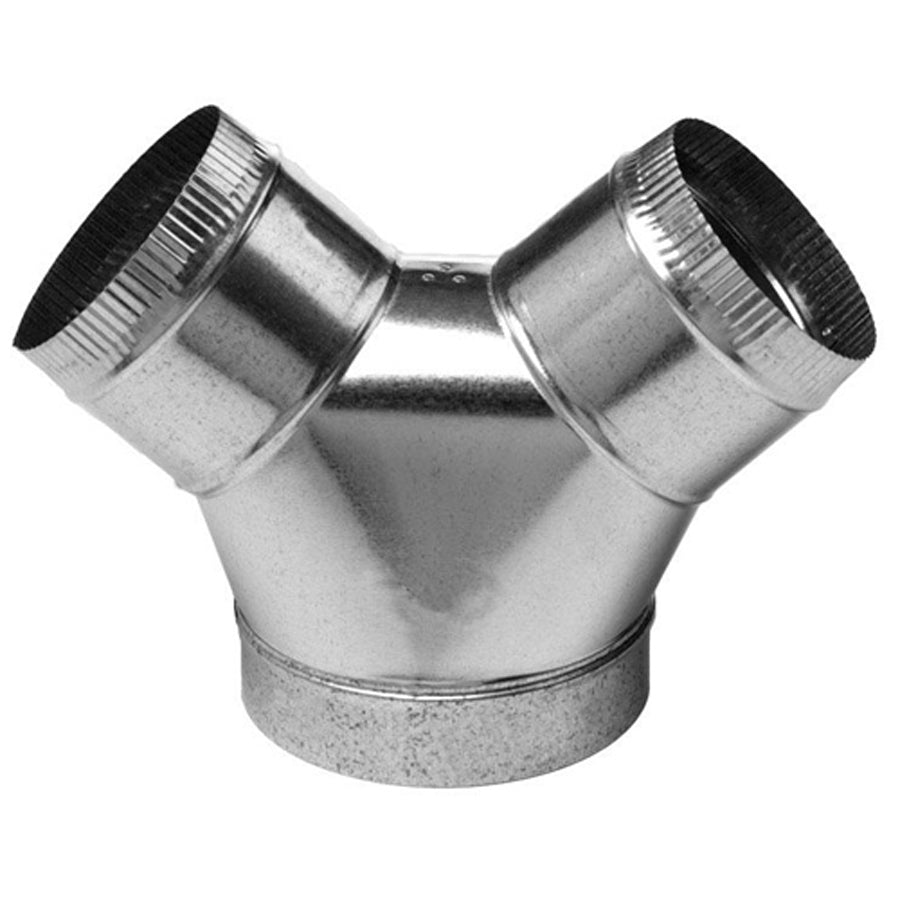

The SOUTHWARK METAL 78_14X12X12 is a round sheet metal duct wye branch fitting used to split a single trunk duct into two branch runs in residential and light commercial HVAC duct systems. Constructed from hot-dipped galvanized steel, it provides corrosion resistance suitable for supply and return air applications. The fitting measures 14 inches on the main trunk with two 12-inch branch outlets. HVAC installers and sheet metal contractors use this type of wye branch when airflow must be divided at a junction point while maintaining round duct continuity throughout the system.

This wye branch fitting is suited for forced-air heating and cooling distribution systems where round ductwork is specified. It is a common component in new construction and retrofit installations that follow ACCA and SMACNA duct fabrication and performance standards. The 14-inch by 12-inch by 12-inch configuration handles trunk-to-branch transitions in systems where balanced airflow across two zones or outlets is required. Sheet metal contractors and HVAC mechanics install this fitting during rough-in or duct modification work.

Key Features

• Hot-dipped galvanized steel construction for corrosion resistance in air distribution environments
• Round duct configuration with 14-inch main and dual 12-inch branch outlets
• Meets ACCA and SMACNA applicable standards for duct fittings
• Wye branch geometry supports balanced airflow splitting versus abrupt tee fittings
• Compatible with standard round spiral and snap-lock duct systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for round sheet metal duct systems requiring a 14-inch by 12-inch by 12-inch wye branch junction, fabricated to ACCA and SMACNA standards.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal contractor. Shut down the air handling unit and confirm the system is de-energized before cutting into or modifying existing ductwork. Seal all joints with UL 181-listed duct sealant or approved metal foil tape per local mechanical code requirements. Support the fitting independently per SMACNA hanger spacing guidelines to prevent stress on adjacent duct connections.

Technical Specifications

• Material: Hot Dipped Galvanized Steel
• Type: Round
• Main Size: 14 inches
• Branch Size: 12 inches x 12 inches
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 78_14X12X12
