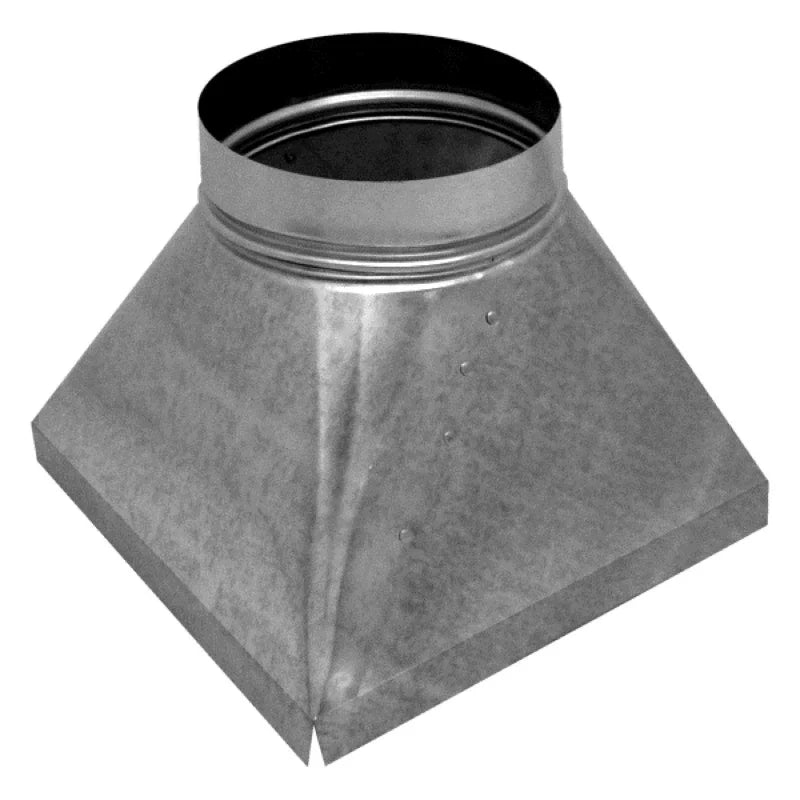

Southwark Metal 73C101614 Square to Round Transition 16x10x12

Product Description

The SOUTHWARK METAL 73C101614 is a square to round transition outlet used in sheet metal ductwork systems to connect a rectangular plenum or boot opening to a round duct collar. It measures 16 inches wide by 10 inches in length by 12 inches in height and weighs 2 pounds. This fitting is a standard component in forced-air HVAC distribution systems where the supply or return air path shifts from a rectangular configuration to a round duct run. HVAC sheet metal installers and duct fabricators use this transition during new construction rough-ins and duct modification work.

This transition outlet is suited for residential and light commercial forced-air systems where a rectangular starting collar or plenum tap needs to feed into a round trunk or branch duct. It is commonly installed at the air handler, furnace, or fan coil outlet, or at any point in the duct system requiring a geometry change. The 16 by 10 inch rectangular opening and the corresponding round outlet make it a practical fitting for standard residential duct layouts.

Key Features

• Transitions from a rectangular 16 x 10 inch opening to a round duct collar
• Compact profile at 12 inches tall keeps installation depth manageable in tight mechanical spaces
• Lightweight at 2 pounds for easier handling and overhead installation
• Sheet metal construction provides durability suited to forced-air duct applications
• Standard fitting geometry compatible with common residential duct installation practices

Compatibility

Designed as an OEM-style sheet metal fitting for use in residential and light commercial forced-air duct systems requiring a square or rectangular to round transition at a 16 x 10 inch opening.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal workers following applicable mechanical codes. Shut down the air handler or furnace and de-energize the system before beginning ductwork modifications. Secure the fitting with sheet metal screws and seal all joints with UL 181-rated mastic or foil tape to maintain system static pressure and air quality. Avoid over-crimping the collar, which can restrict airflow and reduce system efficiency.

Technical Specifications

• Width: 16 inches
• Length: 10 inches
• Height: 12 inches
• Weight: 2 pounds

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 73C101614
