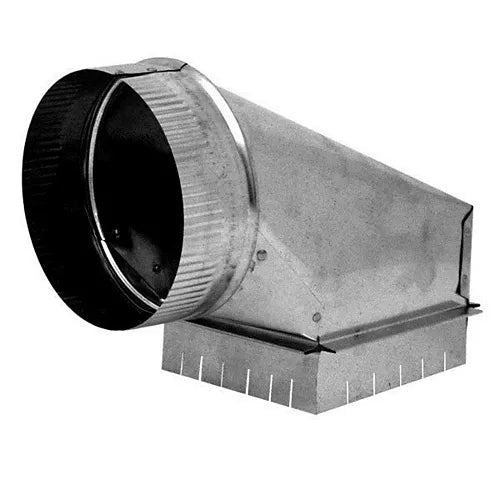

Southwark Metal 62FGL6 Fiberglass Top Takeoff with Raised Back 6 Inches 1.5 Inches Ductboard

Product Description

The Southwark Metal 62FGL6 is a 6 inches fiberglass top takeoff with a raised back, designed for use with 1.5 inches ductboard systems. This fitting is a key component in residential and light commercial HVAC duct distribution systems. It connects a main trunk duct to a branch run, directing conditioned air to individual rooms or zones. HVAC installers and sheet metal contractors rely on top takeoff fittings like this one to create clean, efficient branch connections without cutting into the side of the main duct. The raised back design provides added clearance and improved airflow transition from the trunk to the branch line. This makes it a practical choice in tight ceiling or floor joist cavities where standard fittings may not fit cleanly. The 62FGL6 is manufactured from hot dipped galvanized steel meeting ASTM A653 CS Type B standards. Galvanized steel resists corrosion and holds up well in both humid and dry environments, making it suitable for attic, basement, and crawl space installations. At 30 gauge, the metal is lightweight yet rigid enough to maintain its shape during installation and long-term operation. The collar measures 6 inches in diameter and includes a 2 inches collar length, making it compatible with standard 6 inches round duct or flex duct connectors. The fitting also features a 1 inches rise, which helps transition smoothly from a flat ductboard surface to the branch collar. Dimensions are approximately 10.5 inches in length, 7.25 inches in height, and 6 inches in width. It ships as a single unit and is made in the USA. Prop 65 compliance is noted for California installations.

• Fits 6 inches round branch duct or flexible duct connections off ductboard trunk systems
• Hot dipped galvanized steel per ASTM A653 CS Type B for corrosion resistance and long service life
• Raised back design with 1 inches rise and 2 inches collar length for clean, low-profile installation

Product Highlights

The Southwark Metal 62FGL6 delivers a reliable, code-compliant top takeoff solution for 6 inches ductboard branch connections. Its galvanized 30 gauge construction and raised back profile make it a dependable choice for professional HVAC duct fabrication and installation.

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 62FGL6

Technical Specifications

• Diameter: 6 inches
• Gauge: 30 GA
• Material: Galvanized Steel
• Galvanized Coating: Yes
• Flanged: Yes
• Collar Length: 2 inches
• Rise: 1 inches
• Length: 10.5 inches
• Width: 6 inches
• Height: 7.25 inches
• Weight: 1 pound
• Country of Origin: USA
• Unit of Measure: EA
• Prop 65: Yes
