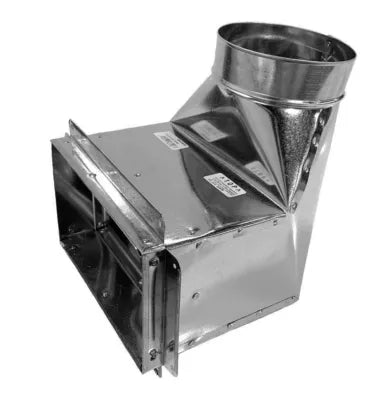

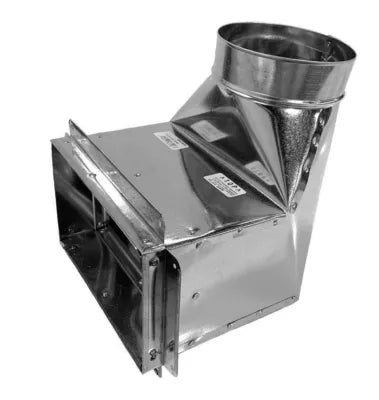

Southwark Metal 59fudd8148 90 Degree Ceiling Boot 8x14x8

Product Description

The SOUTHWARK METAL 59fudd8148 is a 90-degree ceiling boot with an outboard double drywall flange, designed for residential and light commercial HVAC duct systems. This fitting transitions airflow from a vertical duct run to a horizontal ceiling register opening, making it a standard component in forced-air supply distribution. The unit ships as a complete UL-approved assembly, which simplifies inspection and confirms it meets fire and safety standards at the point of installation. It measures 8 inches by 14 inches by 8 inches, fitting common residential supply trunk and branch layouts. HVAC sheet metal installers and mechanical contractors work with this type of fitting on new construction and retrofit duct jobs.

This ceiling boot is suited for supply air distribution in residential and light commercial forced-air systems. The outboard double drywall flange seats flush against finished ceiling surfaces, making it appropriate for drywall ceiling applications where a clean register border is required. The 8-inch by 14-inch face opening accommodates standard rectangular register grilles of that size. It is typically installed during rough-in on new builds or during duct modification work in existing structures.

Key Features

• 90-degree boot configuration transitions vertical duct to horizontal ceiling plane
• Outboard double drywall flange provides a flush finish against drywall ceilings
• UL-approved assembly meets fire and safety listing requirements
• 8 inches x 14 inches x 8 inches sizing fits common residential supply layouts
• CRD construction supports standard rectangular diffuser and grille mounting

Compatibility

Designed as an OEM-style sheet metal fitting for residential and light commercial forced-air supply duct systems requiring a 90-degree ceiling boot with a double drywall flange at an 8-inch by 14-inch by 8-inch dimension.

Installation Notes

This fitting is installed by licensed sheet metal workers or HVAC mechanical contractors in accordance with SMACNA duct construction standards and applicable local mechanical codes. Power down the air handling unit and close the system dampers before connecting or repositioning any duct sections. Secure the boot to the duct trunk with sheet metal screws and seal all joints with UL-listed mastic or foil tape to maintain system pressure and meet energy code requirements. Verify the flange seats flush against the finished ceiling surface before fastening the register grille.

Technical Specifications

• Angle: 90 degrees
• Flange Type: Outboard Double Drywall Flange
• Assembly Listing: UL Approved
• Dimensions: 8 inches x 14 inches x 8 inches
• Unit of Measure: Each

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 59fudd8148
