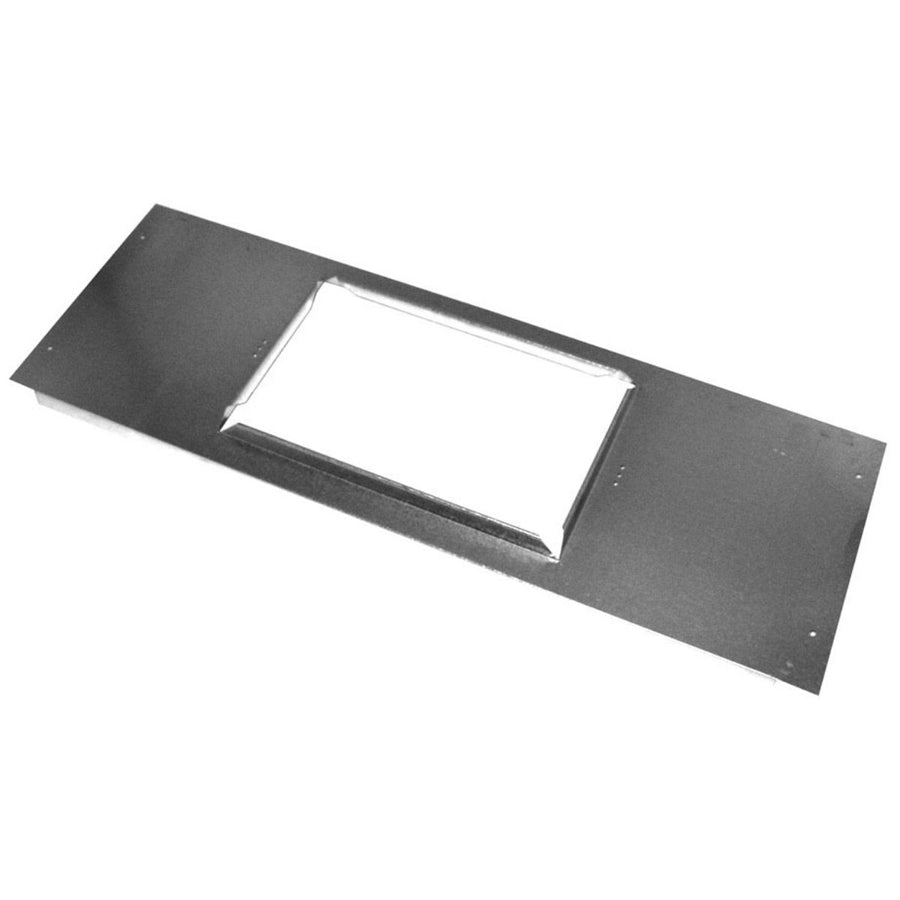

Southwark Metal 31PF-24GA_6X12 Duct Plaster Frame 24GA 6x12

Product Description

The SOUTHWARK METAL 31PF-24GA_6X12 is a sheet metal duct plaster frame boot rail designed for return air applications in residential and light commercial HVAC duct systems. Fabricated from hot dip galvanized steel at 24 gauge, this plaster frame provides a rigid, corrosion-resistant border around a duct boot opening where drywall or plaster finishes meet the register face. HVAC installers and sheet metal contractors use this component to create a clean, stable transition between the duct termination and the finished wall or ceiling surface. It meets applicable ACCA and SMACNA standards for duct construction quality and dimensional consistency.

This plaster frame is sized at 6 inches by 12 inches, making it suited for standard return air boot openings in residential duct systems. It is typically installed during rough-in or finish stages of HVAC ductwork where a flush, plaster-ready border is required around the boot. Sheet metal mechanics and HVAC installation crews incorporate this frame into new construction and renovation projects where drywall or plaster finishes are applied directly up to the register opening.

Key Features

• Hot dip galvanized steel construction resists corrosion in attic, crawlspace, and interior wall cavities
• 24 gauge material thickness provides structural rigidity for a clean finished opening
• 6 inch by 12 inch frame size fits standard return air boot terminations
• Meets ACCA and SMACNA applicable standards for sheet metal duct fabrication
• Designed for return air duct applications in residential and light commercial systems

Compatibility

Designed as an OEM-style sheet metal component for return air duct boot openings in residential and light commercial HVAC duct systems built to ACCA and SMACNA standards.

Installation Notes

Installation is performed by licensed sheet metal mechanics or HVAC technicians following SMACNA duct construction guidelines. Power down the air handler and close any associated dampers before working inside the duct system. Secure the frame to the boot and surrounding framing using appropriate sheet metal fasteners, and verify the frame sits flush before applying drywall or plaster finish. Cut edges may be sharp — use appropriate hand protection during handling and installation.

Technical Specifications

• Frame Size: 6 inches x 12 inches
• Material: Hot Dip Galvanized Steel
• Material Thickness: 24 Gauge
• Type: Return Air
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 31PF-24GA_6X12
