Southwark Metal 31_24X8 Duct Register Frame 24x8 Return Air

Product Description

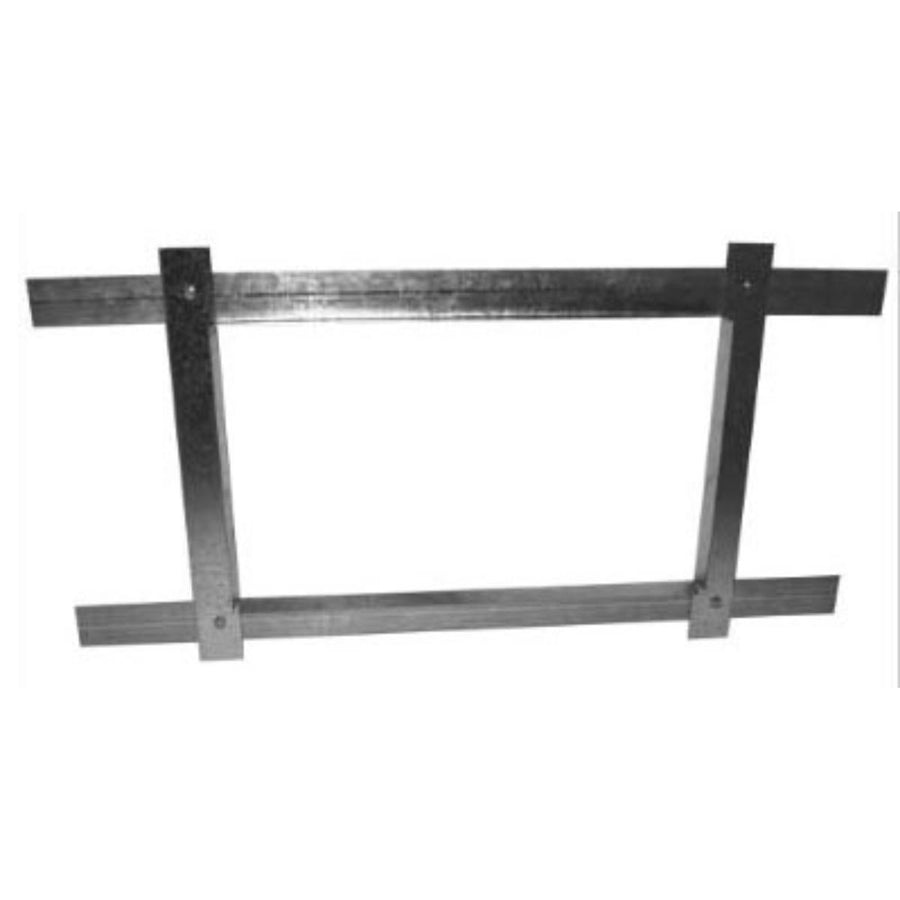

The SOUTHWARK METAL 31_24X8 is a hot-dip galvanized steel duct register frame sized at 24 inches by 8 inches, designed for return air applications in forced-air HVAC systems. The frame provides a clean, rigid transition between the duct opening and the wall, floor, or ceiling surface, holding the register or grille securely in place. Fabricated from hot-dip galvanized steel, it resists corrosion in typical residential and light commercial environments. HVAC installers and sheet metal contractors use this frame as a standard component when finishing duct rough-ins. It conforms to ACCA and SMACNA standards, making it appropriate for work that must meet recognized industry guidelines.

This frame is suited for return air installations in residential and light commercial forced-air systems. It fits standard 24-inch by 8-inch duct openings and works with matching return air grilles of the same nominal size. Common install locations include wall cavities, floor boots, and ceiling drops where a finished frame is required to complete the duct termination. Sheet metal contractors and HVAC technicians typically install this component during the rough-in or trim-out phase of a new installation or replacement project.

Key Features

• Hot-dip galvanized steel construction for corrosion resistance
• 24 inches by 8 inches frame size fits standard nominal duct openings
• Return air application — provides rigid grille support at the duct termination
• Meets ACCA and SMACNA applicable standards
• Suitable for wall, floor, or ceiling return air installations

Compatibility

Designed as an OEM-style sheet metal register frame for use with standard 24-inch by 8-inch return air grilles in residential and light commercial forced-air duct systems.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal contractor. The air handling system should be powered down and the disconnect locked out before cutting or modifying duct openings. Frame should be secured per SMACNA sheet metal installation guidelines using appropriate fasteners for the substrate. Verify the grille or register selected for use with this frame matches the nominal 24-inch by 8-inch opening.

Technical Specifications

• Frame Size: 24 inches x 8 inches
• Material: Hot Dip Galvanized Steel
• Type: Return Air
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 31_24X8
