Southwark Metal 31_10X6 Duct Register Frame 10x6 Return Air

Product Description

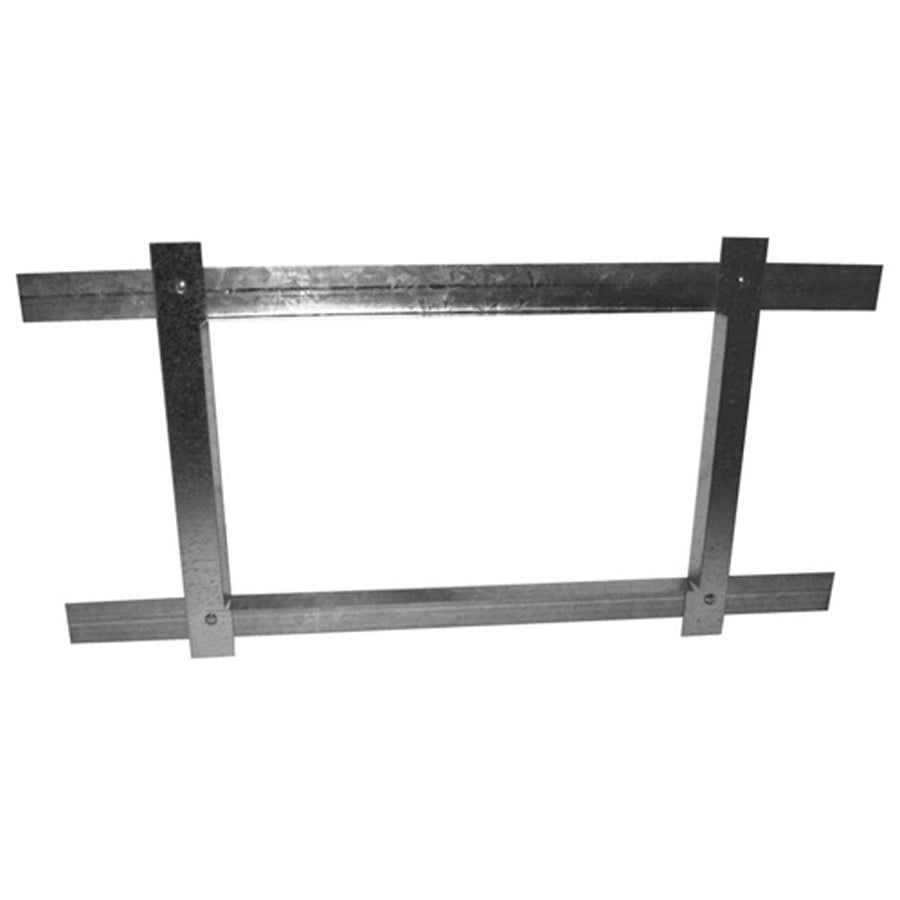

The SOUTHWARK METAL 31_10X6 is a sheet metal duct register frame designed for return air applications in forced-air HVAC systems. Constructed from hot-dipped galvanized steel, this frame provides a durable, corrosion-resistant border for duct openings at wall, floor, or ceiling terminations. The frame measures 10 inches in length by 6 inches in width, sized to accept a standard 10 x 6 register or grille. HVAC installers and sheet metal contractors use this type of frame to finish rough duct openings and provide a secure mounting surface for grilles in residential and light commercial ductwork installations.

This duct register frame is suited for return air duct terminations in residential and light commercial forced-air systems. It is installed at the point where a return air duct meets a wall, floor, or ceiling surface, providing structure and a finished edge for grille attachment. The 10 x 6 inch size is a common dimension in residential return air layouts. Sheet metal contractors and HVAC technicians install this frame as part of new construction ductwork or replacement work during system retrofits and renovations.

Key Features

• Hot-dipped galvanized steel construction for corrosion resistance in return air duct environments
• Frame size: 10 inches length by 6 inches width, a standard residential return air dimension
• Designed for return air duct termination applications
• Meets ACCA and SMACNA applicable standards for sheet metal duct fabrication
• Compatible with standard 10 x 6 return air grilles and registers

Compatibility

Designed as an OEM-style sheet metal duct component for use with standard 10 x 6 return air grilles and registers in residential and light commercial forced-air HVAC ductwork systems.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal contractors. Power down the air handling system before working on any duct termination point. The frame is fastened to the duct opening using sheet metal screws or drive cleats per SMACNA duct construction standards. Verify grille or register fit against the frame opening before final attachment.

Technical Specifications

• Frame Length: 10 inches
• Frame Width: 6 inches
• Material: Hot-Dipped Galvanized Steel
• Type: Return Air
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 31_10X6
