Southwark Metal 28RL_4X10X6 Pipe Boot 4x10 Left 6 in

Product Description

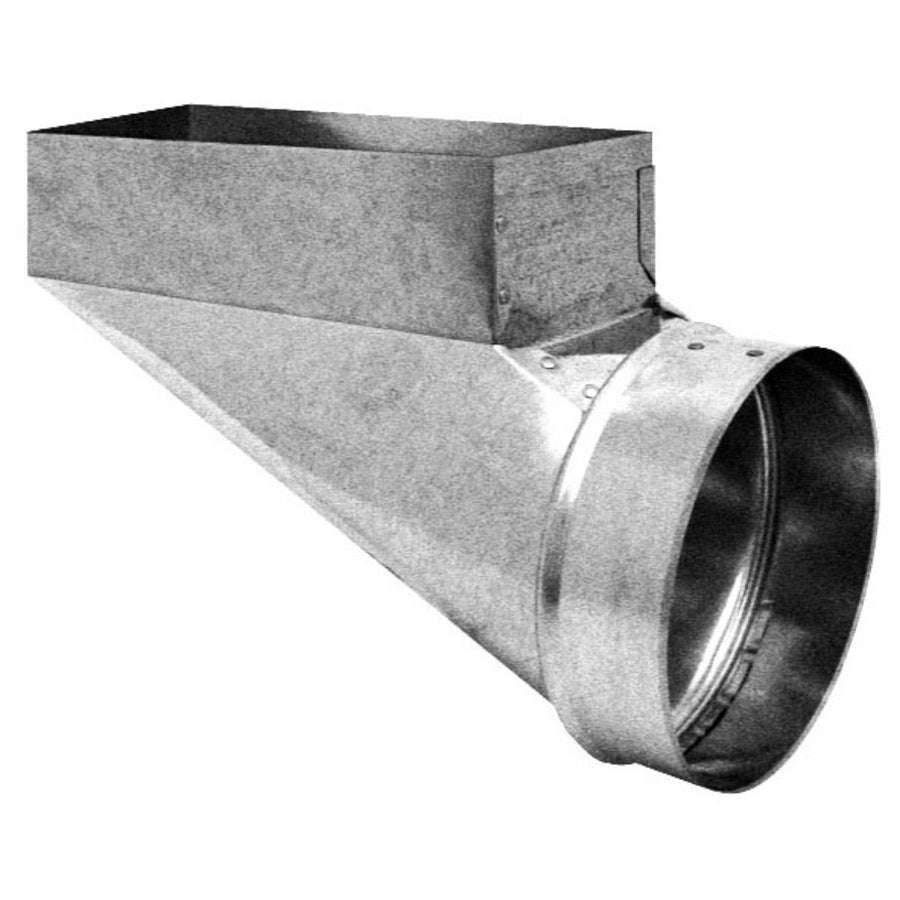

The SOUTHWARK METAL 28RL_4X10X6 is a left-hand offset sheet metal pipe boot designed to transition a round duct into a floor or ceiling register opening. Constructed from hot dip galvanized steel, this boot connects a 6-inch diameter round pipe to a 4-inch by 10-inch rectangular register opening with the collar offset to the left end. The galvanized finish resists corrosion in typical residential duct system environments. HVAC sheet metal installers use this fitting in forced-air distribution systems where the duct run requires a directional offset at the final register connection point.

This pipe boot is used in residential and light commercial forced-air HVAC systems where round branch ducts terminate at floor, wall, or ceiling register boxes. The left-end offset orientation allows the round collar to align with duct runs that approach the register box from the right side, making it well suited for installations where a straight or right-hand boot would conflict with framing or adjacent structure. Installers working to SMACNA or ACCA duct fabrication standards will find this fitting consistent with those guidelines.

Key Features

• Left-end offset collar orientation for right-approach duct runs
• Hot dip galvanized steel construction for corrosion resistance in duct system applications
• 4-inch by 10-inch rectangular register opening matches standard residential register sizes
• 6-inch diameter round collar connects directly to standard round branch duct
• Fabricated to ACCA and SMACNA applicable standards

Compatibility

Designed as an OEM-style sheet metal fitting for residential and light commercial forced-air duct systems requiring a left-hand offset transition from 6-inch round duct to a 4-inch by 10-inch register opening.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal workers. Power down the air handling system before fitting or securing any duct components. The boot should be secured with sheet metal screws and sealed with UL 181-rated foil tape or mastic sealant at all joints per SMACNA ductwork installation guidelines. Verify register opening dimensions and round duct diameter before installation to confirm fitment.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Register Opening (Size A): 4 inches x 10 inches
• Round Collar Diameter (Size B): 6 inches
• End Direction: Left
• Type: Register
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 28RL_4X10X6
