Southwark Metal 28R_2-1/4X12X5 Duct End Boot 2.25x12 to 5 in

Product Description

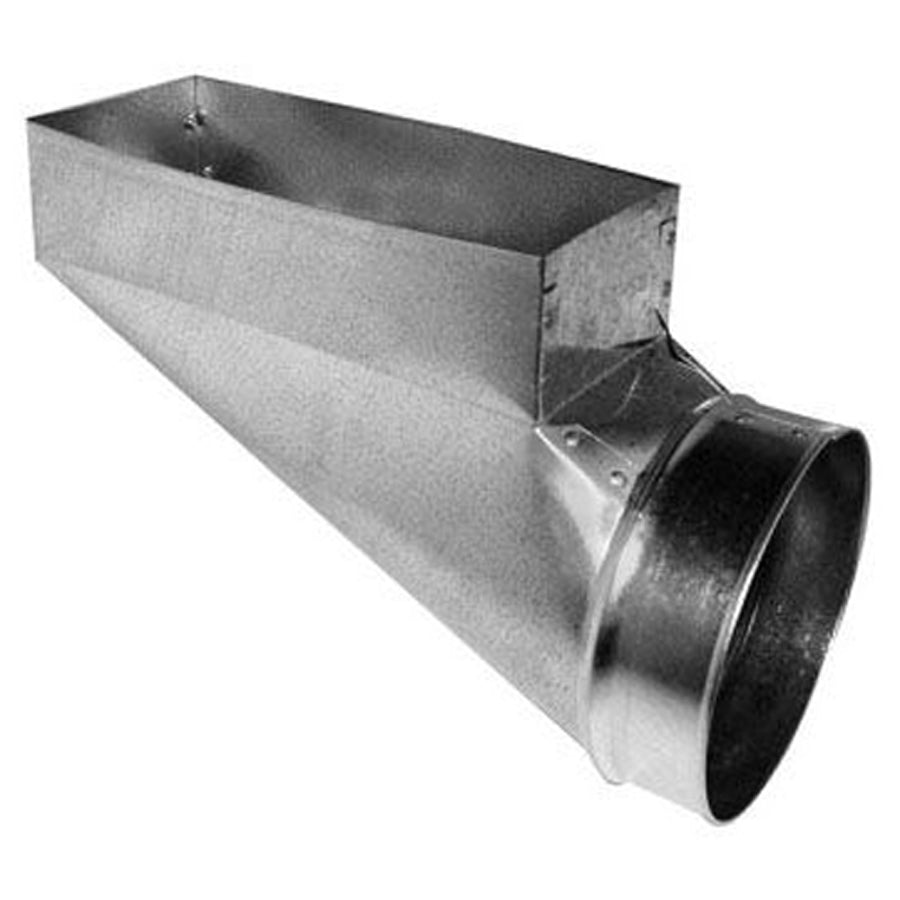

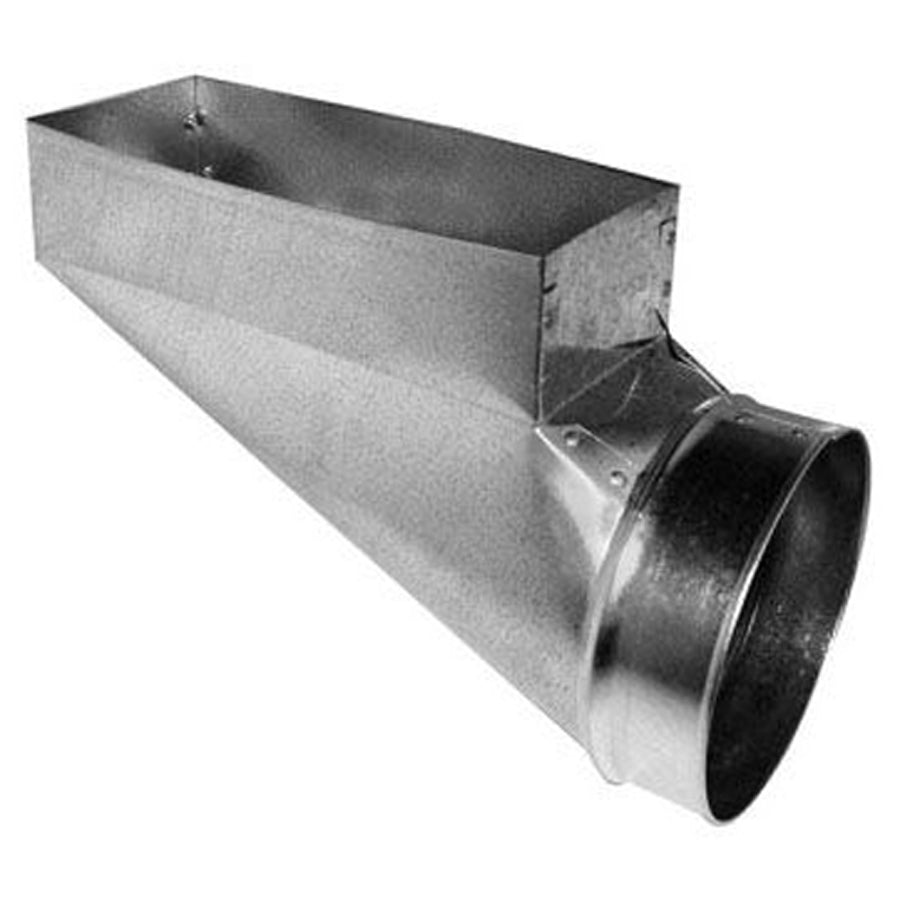

The SOUTHWARK METAL 28R_2-1/4X12X5 is a rectangular-to-round sheet metal duct end boot designed to transition from a flat rectangular duct opening to a round collar for register or grille connection. Fabricated from hot dipped galvanized steel, this boot offers corrosion resistance suited to residential and light commercial duct systems. The rectangular inlet measures 2.25 inches by 12 inches, and the round outlet is 5 inches in diameter. The center end direction means the round collar exits from the center of the boot face. Licensed HVAC technicians and sheet metal installers use this fitting to terminate supply air runs at floor, ceiling, or wall register locations.

This boot is a standard fitting used in residential forced-air HVAC systems and light commercial ducted supply applications. It connects to a 5-inch round branch duct on one end and accepts a floor or wall register at the 2.25-inch by 12-inch opening. It is well suited for new construction and retrofit installations where a rectangular register boot is required to terminate a round branch line. The center exit orientation is common in floor boot applications where the round duct enters straight up through the subfloor or wall cavity.

Key Features

• Rectangular inlet measures 2.25 inches by 12 inches to accept standard register sizes
• Round outlet is 5 inches in diameter for direct connection to 5-inch round branch duct
• Center end direction aligns the round collar to the center of the boot face
• Hot dipped galvanized steel construction provides corrosion resistance for long service life
• Meets ACCA and SMACNA applicable standards for residential and commercial duct fabrication
• Register-type boot accepts standard flat register or grille at the face opening

Compatibility

Designed as an OEM-style replacement and new-installation fitting compatible with 5-inch round branch ducting and standard 2.25-inch by 12-inch floor or wall registers in residential forced-air systems built to ACCA and SMACNA standards.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal installer in accordance with SMACNA duct construction standards and local mechanical codes. Power down the air handling unit and close the system disconnect before beginning any duct work. Secure the round collar to the branch duct using sheet metal screws and approved duct sealant or mastic to ensure an airtight connection. Do not use the register face opening as a structural support point for the boot during installation.

Technical Specifications

• Material: Hot Dipped Galvanized Steel
• Inlet Size (Size A): 2.25 inches x 12 inches (rectangular)
• Outlet Size (Size B): 5 inches diameter (round)
• End Direction: Center
• Type: Register, Rectangular to Round
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 28R_2-1/4X12X5
