Southwark Metal 27R_4X14X6 Duct Boot 4x14x6 Straight

Product Description

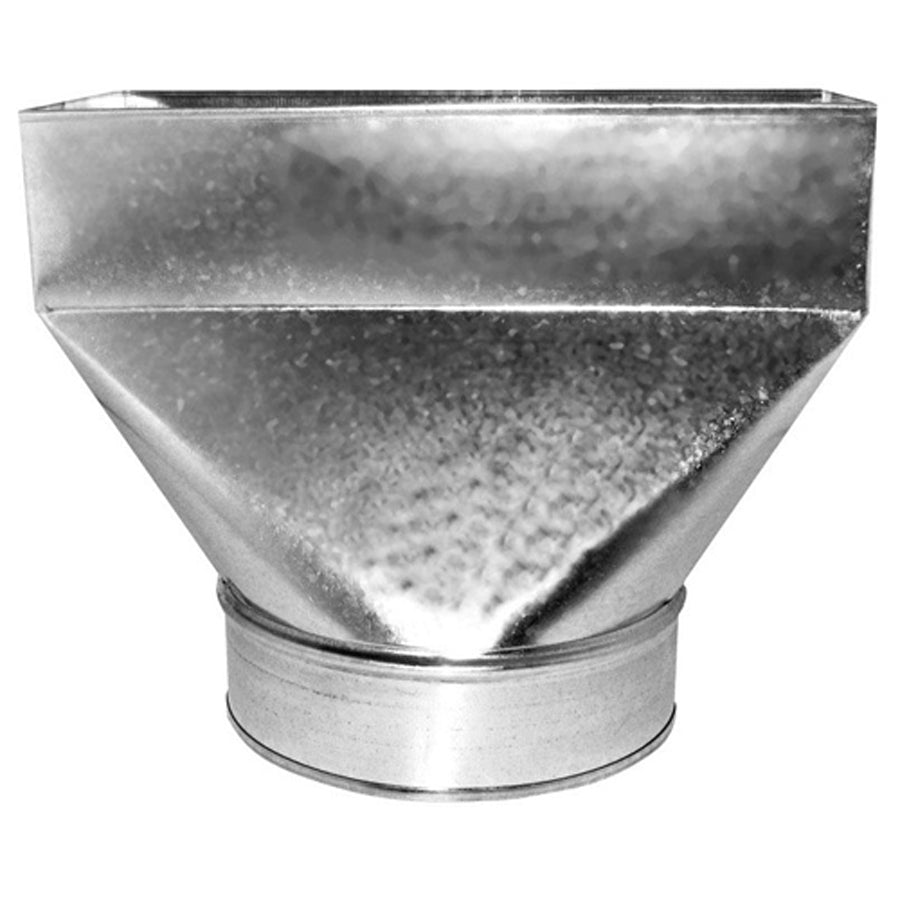

The SOUTHWARK METAL 27R_4X14X6 is a straight rectangular-to-round sheet metal duct boot designed for connecting rectangular duct runs to round collar register openings in residential and light commercial HVAC air distribution systems. Fabricated from hot-dipped galvanized steel, this boot transitions a 4 x 14 inch rectangular face to a 6 inch round collar. It is sized for standard floor, wall, or ceiling register applications and is built to ACCA and SMACNA standards. Licensed HVAC technicians and sheet metal contractors install this fitting as part of supply-air distribution trunk and branch layouts.

This duct boot fits into supply-air branch runs where a rectangular register opening meets a round branch duct. The 4 x 14 inch face accommodates a standard register grille, while the 6 inch round collar connects to a matching round branch duct or flexible duct. Typical installations include residential forced-air systems with floor or wall register drops, as well as light commercial applications requiring SMACNA-compliant sheet metal fittings.

Key Features

• Hot-dipped galvanized steel construction for corrosion resistance in HVAC air distribution service
• Straight rectangular-to-round transition — 4 x 14 inch rectangular face to 6 inch round collar
• Meets ACCA and SMACNA applicable standards for sheet metal duct fittings
• Compatible with standard 4 x 14 inch floor or wall register grilles
• 6 inch round collar connects directly to round branch duct or flexible duct connector

Compatibility

Designed as an OEM-style sheet metal fitting for residential and light commercial forced-air HVAC duct systems using 4 x 14 inch register openings with 6 inch round branch duct connections, installed per ACCA and SMACNA guidelines.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal contractor. Shut down the air handling unit and isolate the duct section before cutting or fitting. Secure the boot to the register box rough opening and seal all seams with UL-listed duct sealant or metal foil tape in compliance with local mechanical codes and SMACNA duct construction standards. Do not use cloth duct tape as the sole sealing method.

Technical Specifications

• Material: Hot Dipped Galvanized Steel
• Rectangular Face Size (Size A): 4 inches x 14 inches
• Round Collar Diameter (Size B): 6 inches
• Type: Register, Straight, Rectangular to Round
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 27R_4X14X6
