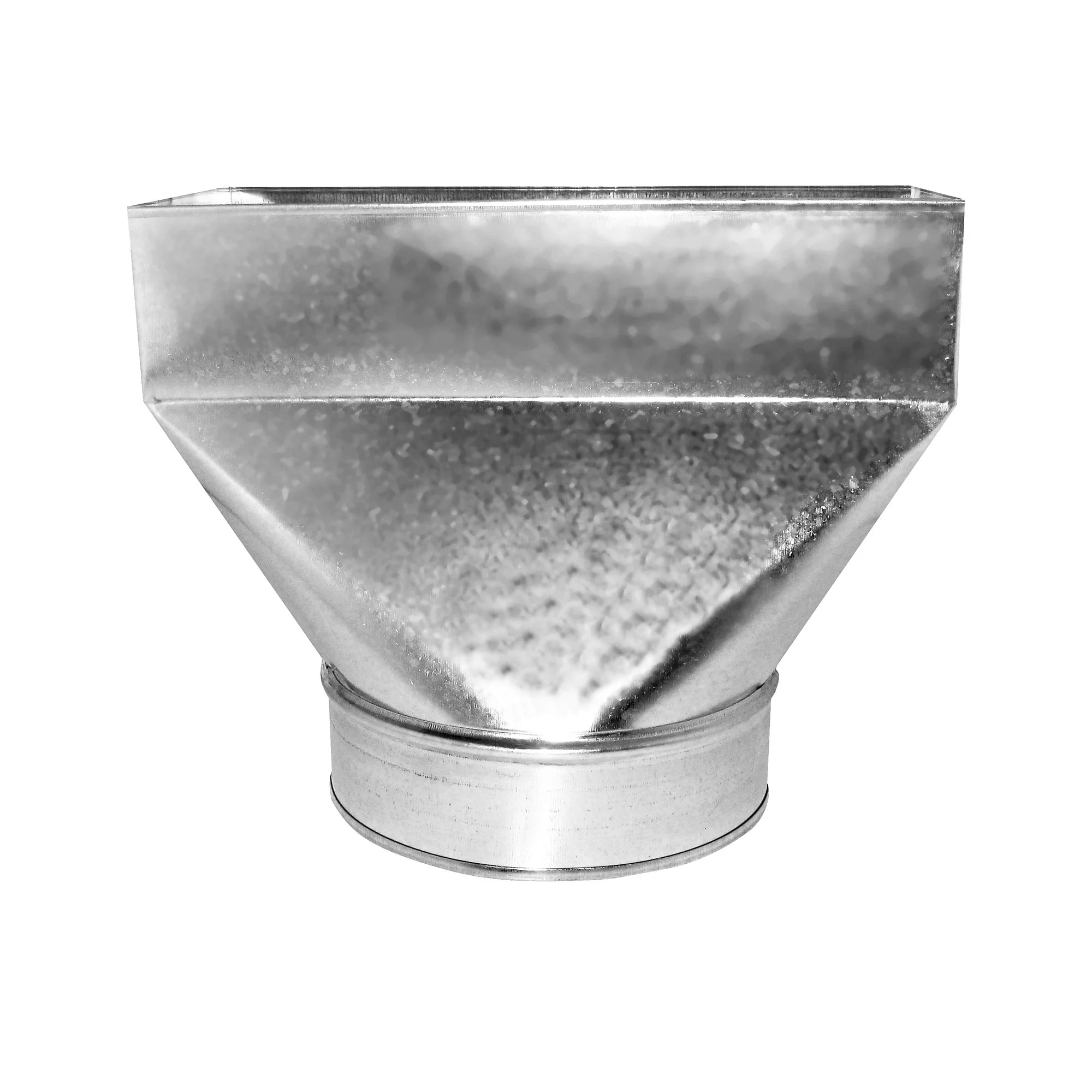

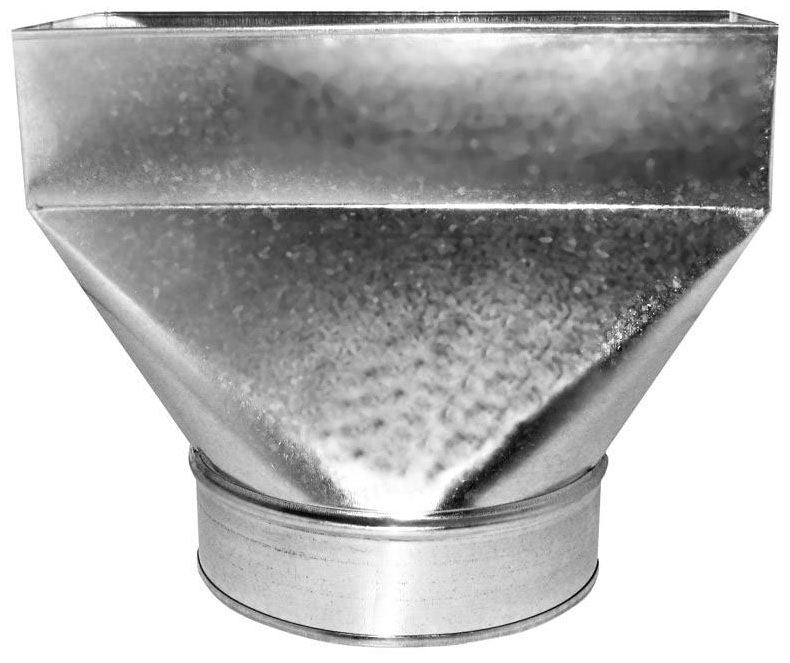

Southwark Metal 27R4105 Straight Register Boot (4 x 10 x 5)

Product Description

Southwark Metal 27R4105 is a straight register boot for HVAC duct transitions with nominal dimensions 4 x 10 x 5 inches. It is constructed of 30 gauge steel with a hot-dipped galvanized finish and G40 coating for corrosion resistance. The boot has a flat back, a 10 x 4 inch register opening, and a 1/2 inch rivet tab (uses 1/8 inch rivets), suitable for residential and light commercial duct connections.

• Nominal size 4 x 10 x 5 in with a 10 in by 4 in register opening and compatible with 5 in duct diameter
• Constructed of 30 ga steel with hot-dipped galvanized finish and G40 coating for corrosion resistance
• Flat back design with hemmed edges and a 1/2 in rivet tab (uses 1/8 in rivets); conforms to ASTM A653 CS Type B and industry standards

Product Highlights

30 ga hot-dipped galvanized steel; 4 x 10 x 5 in; flat back with hemmed edges

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 27R4105
• Country of Origin: United States

Technical Specifications

• Brand: Southwark Metal
• MPN: 27R4105
• Product type: Straight register boot
• Series: 27R
• Dimensions (nominal): 4 x 10 x 5 in
• Register opening length: 10 in
• Register opening width: 4 in
• Compatible duct diameter: 5 in
• Material: Steel (30 ga)
• Finish: Hot-dipped galvanized
• Gauge: 30 ga
• Back style: Flat back
• Hemmed edge (register opening): 3/16 in
• Hemmed edge (collar): 1/8 in
• Rivet tab: 1/2 in
• Rivet size: 1/8 in
• Coating: G40
• Standards: ASTM A653 CS Type B; ACCA; SMACNA
• Application: Residential and light commercial
• Country of origin: Made in the United States
• Weight: 2.0 lb
• UPC: 9927301024
