Southwark Metal 24R_6X10X6 Pipe Boot Elbow 6x10x6

Product Description

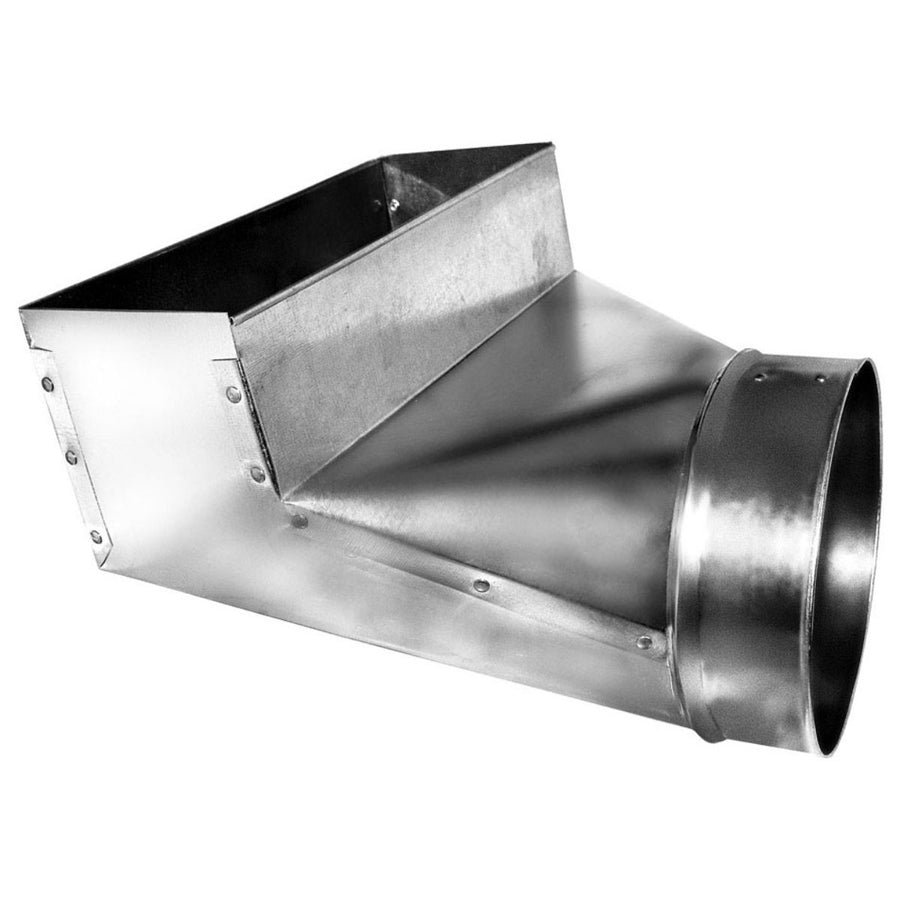

The SOUTHWARK METAL 24R_6X10X6 is a sheet metal pipe boot elbow designed to transition ductwork from a round collar to a rectangular register opening at a 90-degree angle. Fabricated from hot dip galvanized steel, this fitting delivers corrosion resistance suited for residential and light commercial HVAC supply systems. The rectangular opening measures 6 inches by 10 inches, while the round collar measures 6 inches in diameter. HVAC sheet metal installers use this fitting where a floor, wall, or ceiling register connects to round branch duct at a right angle.

This pipe boot elbow is commonly installed in residential forced-air heating and cooling systems as a branch takeoff fitting at the register location. It serves applications where round flexible or rigid duct transitions to a standard register or grille. Typical installations include floor boots in framed floor cavities and wall applications where a 90-degree turn is required between the branch duct and the face of the register. The 6-inch by 10-inch face accommodates a standard register size widely used in residential construction.

Key Features

• Hot dip galvanized steel construction provides corrosion resistance for long-term duct system service
• 90-degree elbow geometry transitions round duct to flat register opening in a single fitting
• 6-inch by 10-inch rectangular opening fits standard residential register and grille sizes
• 6-inch round collar connects directly to standard round branch duct or flexible duct
• Meets ACCA and SMACNA applicable standards for sheet metal ductwork fabrication

Compatibility

Designed as an OEM-style sheet metal fitting compatible with standard 6-inch round branch duct and 6-inch by 10-inch register openings in residential and light commercial forced-air HVAC duct systems.

Installation Notes

Installation should be performed by a licensed HVAC technician or sheet metal installer following SMACNA duct construction standards. Power down the air handler or furnace before accessing ductwork. Secure the round collar to branch duct using sheet metal screws and UL-listed duct tape or mastic sealant per local mechanical code requirements. Avoid restricting airflow by ensuring the fitting is fully seated and sealed at both the round collar and the register opening.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Rectangular Opening (Size A): 6 inches x 10 inches
• Round Collar Diameter (Size B): 6 inches
• Type: Register, 90 Degree Elbow
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 24R_6X10X6
