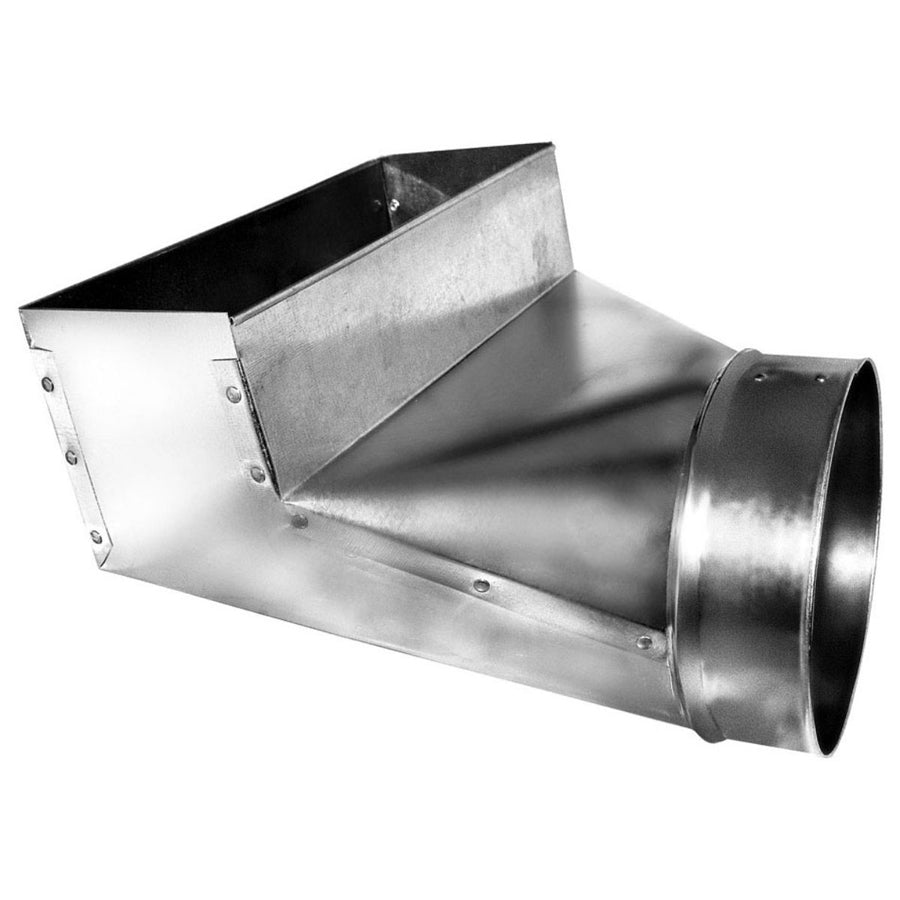

Southwark Metal 24R_2-1/4X12X7 Sheet Metal Pipe Boot Elbow

Product Description

The SOUTHWARK METAL 24R_2-1/4X12X7 is a sheet metal pipe boot elbow designed to transition a round duct run into a floor or wall register opening. Configured as a 90-degree elbow, it converts a 7-inch diameter round duct to a 2-1/4 x 12-inch register face, making it a standard fit for residential forced-air supply systems. Fabricated from hot-dip galvanized steel, this boot provides corrosion resistance suitable for long-term duct system use. HVAC installers and sheet metal contractors use this fitting when terminating supply trunk runs at floor, ceiling, or wall register locations.

This pipe boot elbow is used in residential and light commercial forced-air HVAC duct systems where a round supply branch must connect to a rectangular register opening. The 90-degree bend allows the duct to change direction at the point of termination, which is the typical configuration for floor or low-sidewall register installations. It is sized for a standard 2-1/4 x 12-inch register opening and a 7-inch round duct collar, a common pairing in residential supply layouts.

Key Features

• 90-degree elbow configuration transitions round duct to rectangular register opening in a single fitting
• Hot-dip galvanized steel construction provides corrosion resistance for long-term duct system service
• Register face size of 2-1/4 x 12 inches fits standard residential supply register openings
• 7-inch diameter round collar connects directly to standard round branch duct
• Meets ACCA and SMACNA applicable standards for sheet metal duct fittings

Compatibility

Designed as an OEM-style sheet metal duct fitting for residential and light commercial forced-air supply systems using 7-inch round branch duct terminating at a 2-1/4 x 12-inch register opening.

Installation Notes

Installation is performed by licensed HVAC technicians or sheet metal contractors. Power down the air handling system before making duct connections. Secure the boot collar to the branch duct using sheet metal screws and foil-backed mastic or UL 181-listed tape per SMACNA duct construction standards. Verify register opening dimensions before installation to confirm proper fit at the termination point.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Type: Register, 90 Degree Elbow
• Register Face Size (Size A): 2-1/4 inches x 12 inches
• Round Collar Diameter (Size B): 7 inches
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 24R_2-1/4X12X7
