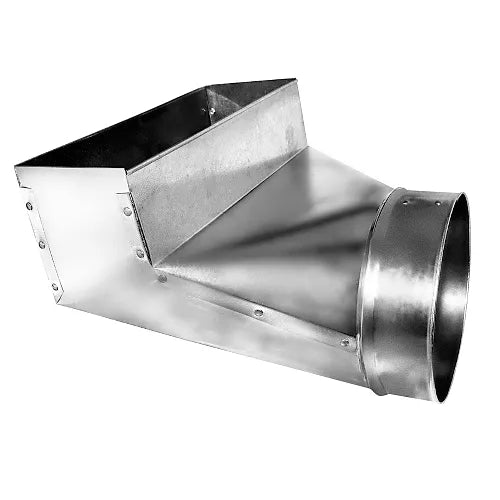

Southwark Metal 24R6149 Register Boot 6 Inches X 14 Inches 9 Inches Collar 90 Degree 30 Gauge Galvanized Steel

Product Description

The Southwark Metal 24R6149 is a 90-degree register boot designed for residential and light commercial HVAC duct systems. It connects rectangular ductwork to floor, wall, or ceiling registers, directing conditioned air from the supply duct into the living space. HVAC installers, sheet metal contractors, and mechanical tradespeople rely on this type of boot to complete supply air distribution runs efficiently and accurately. The 24R6149 features a 6-inch by 14-inch boot opening and a 9-inch round collar, making it compatible with standard 9-inch round flex duct or rigid duct connections. The 90-degree elbow configuration allows the duct run to turn and terminate at the register face in a compact, clean installation. The body is fabricated from 30 gauge hot dipped galvanized steel meeting ASTM A653 CS Type B standards with a G40 coating rating, providing corrosion resistance suitable for in-floor, in-wall, and subfloor applications. The collar is constructed from 28 gauge steel, adding rigidity at the duct connection point. A 1 half inch rise accommodates register placement and maintains proper airflow alignment. The register opening has a 1 quarter inch hemmed edge for a clean, safe finish, while the collar features a 1 eighth inch hemmed edge. Rivet tabs measuring 1 half inch accept 1 eighth inch rivets for secure mechanical attachment to ductwork. The register opening depth is 3 inches, with a plus or minus 1 quarter inch tolerance. This boot ships as a single unit and is manufactured in the USA. It is not insulated and not flanged, keeping installation straightforward for standard duct rough-in work.

• 6 inches by 14 inches boot size with 9 inches round collar for flexible or rigid duct connection
• 30 gauge galvanized steel body with 28 gauge collar, ASTM A653 CS Type B, G40 rated for corrosion resistance
• 90-degree elbow configuration with 3 inches register opening depth and hemmed edges for safe, clean installation

Product Highlights

The Southwark Metal 24R6149 delivers a durable, code-compliant register boot connection for 9-inch round duct systems, built to ASTM standards from USA-manufactured hot dipped galvanized steel. Its 90-degree design and precise dimensions make it a reliable choice for HVAC supply air terminations in residential and commercial construction.

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 24R6149

Technical Specifications

• Boot Size: 6 inches x 14 inches
• Collar Size: 9 inches
• Boot Type: 90 Degree Elbow
• Body Gauge: 30 GA
• Collar Gauge: 28 GA
• Material: Hot Dipped Galvanized Steel, ASTM A653 CS Type B
• Galvanized Coating Rating: G40
• Register Opening Depth: 3 inches (plus or minus 1 quarter inch)
• Rise: 1 half inch
• Rivet Tab: 1 half inch using 1 eighth inch rivets
• Register Opening Hem: 1 quarter inch
• Collar Hem: 1 eighth inch
• Flanged: No
• Insulated: No
• Product Family: 24R
• Weight: 1.95 pounds
• Unit of Measure: Each
• Country of Origin: USA
• UPC: 099274575727
