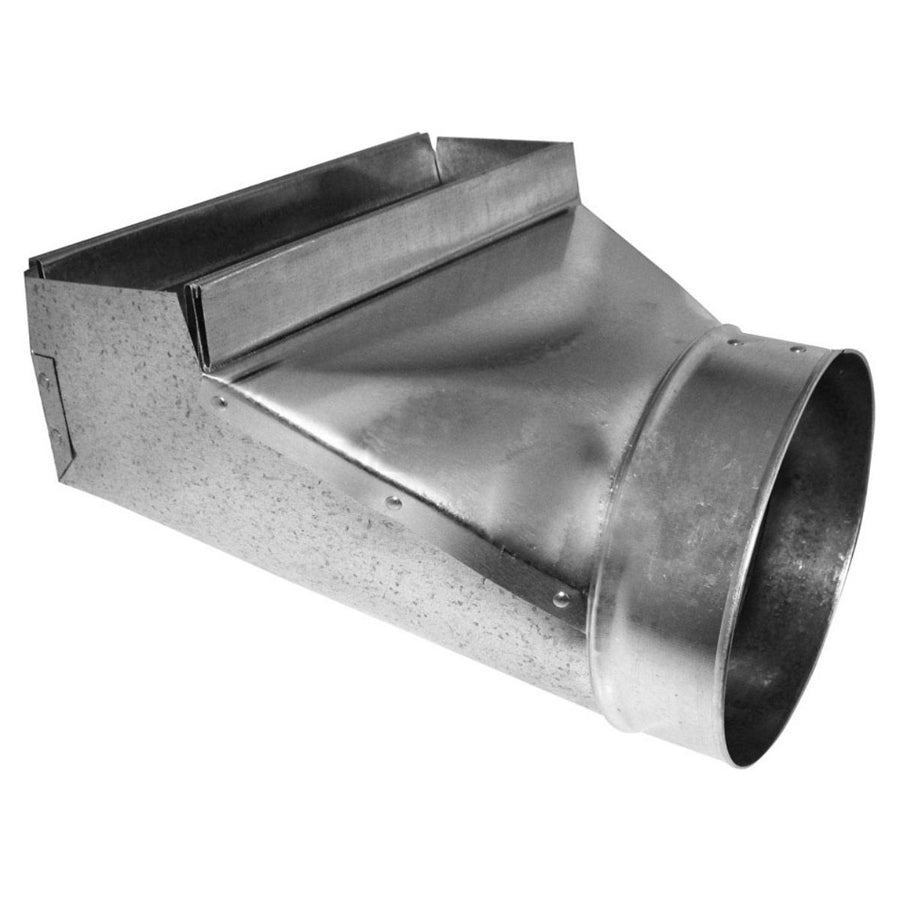

Southwark Metal 24_3-1/4X12X7 Duct Wall Stack Elbow Boot

Product Description

The SOUTHWARK METAL 24_3-1/4X12X7 is a hot dip galvanized steel sheet metal duct boot designed for wall stack applications in residential forced-air HVAC systems. This 90-degree elbow boot transitions airflow from a vertical wall cavity to a horizontal register opening, making it a standard component in new construction and retrofit duct installations. The rectangular inlet measures 3.25 inches by 12 inches, and the outlet is 7 inches in diameter. HVAC sheet metal mechanics and duct installers work with this fitting when building or replacing supply-side ductwork in interior wall stacks. Construction meets ACCA and SMACNA standards.

This boot is used in residential and light commercial forced-air supply duct systems where a wall stack feeds a floor or baseboard register. The 90-degree elbow geometry allows the duct run to turn from vertical to horizontal at the termination point. Typical installations include interior wall cavities in single-family homes and multi-unit residential construction where space-saving flat oval or rectangular duct profiles are required at the supply outlet.

Key Features

• Hot dip galvanized steel construction resists corrosion in conditioned air environments
• 90-degree elbow profile routes airflow from vertical wall stack to horizontal register opening
• 3.25 x 12 inch rectangular inlet matches standard wall stack duct dimensions
• 7 inch diameter outlet provides standard round connection at register end
• Meets ACCA and SMACNA applicable standards for sheet metal duct fittings

Compatibility

Designed as an OEM-style sheet metal fitting for residential and light commercial forced-air supply duct systems using wall stack configurations with a 3.25 x 12 inch rectangular duct profile and a 7 inch round outlet.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal mechanics. Shut down the air handler and confirm the system is de-energized before cutting into or connecting ductwork. Seal all joints with UL 181-listed duct mastic or metal foil tape in accordance with SMACNA installation standards. Secure the boot to the wall framing and duct collar per local mechanical code requirements before installing the register.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Inlet Size (Size A): 3.25 inches x 12 inches
• Outlet Size (Size B): 7 inches diameter
• Type: Wall Stack 90 Degree Elbow Boot
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 24_3-1/4X12X7
