Southwark Metal 20_10X10 Trunk Duct Collar 10x10 in

Product Description

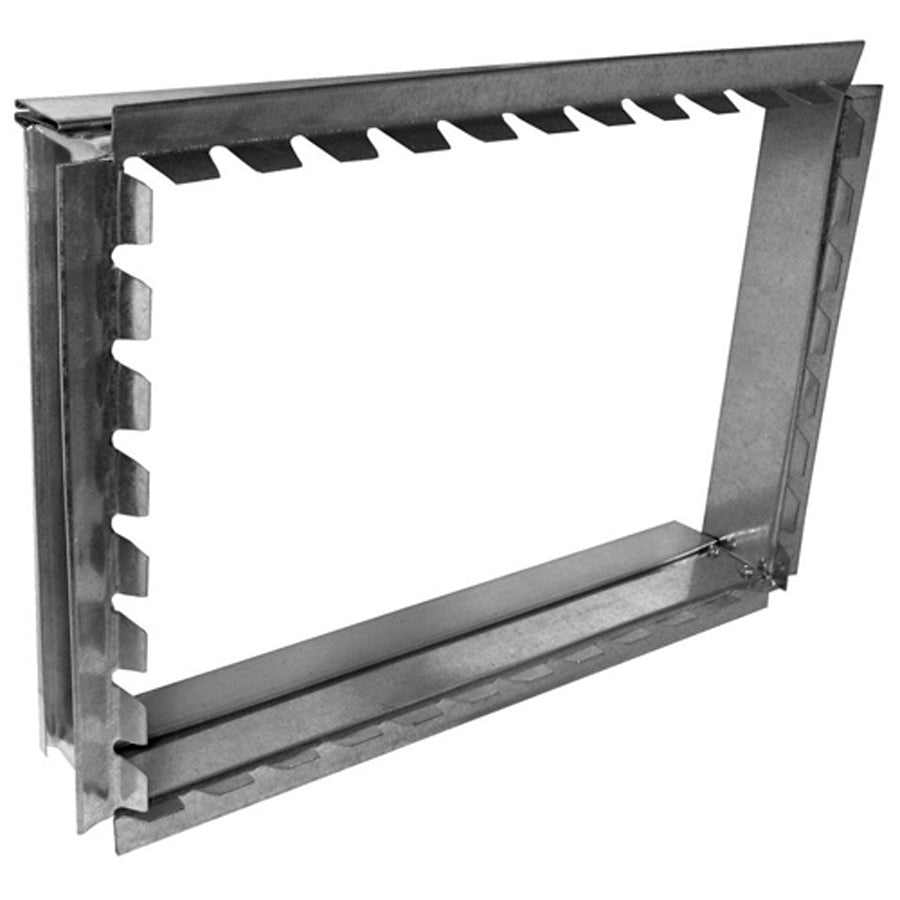

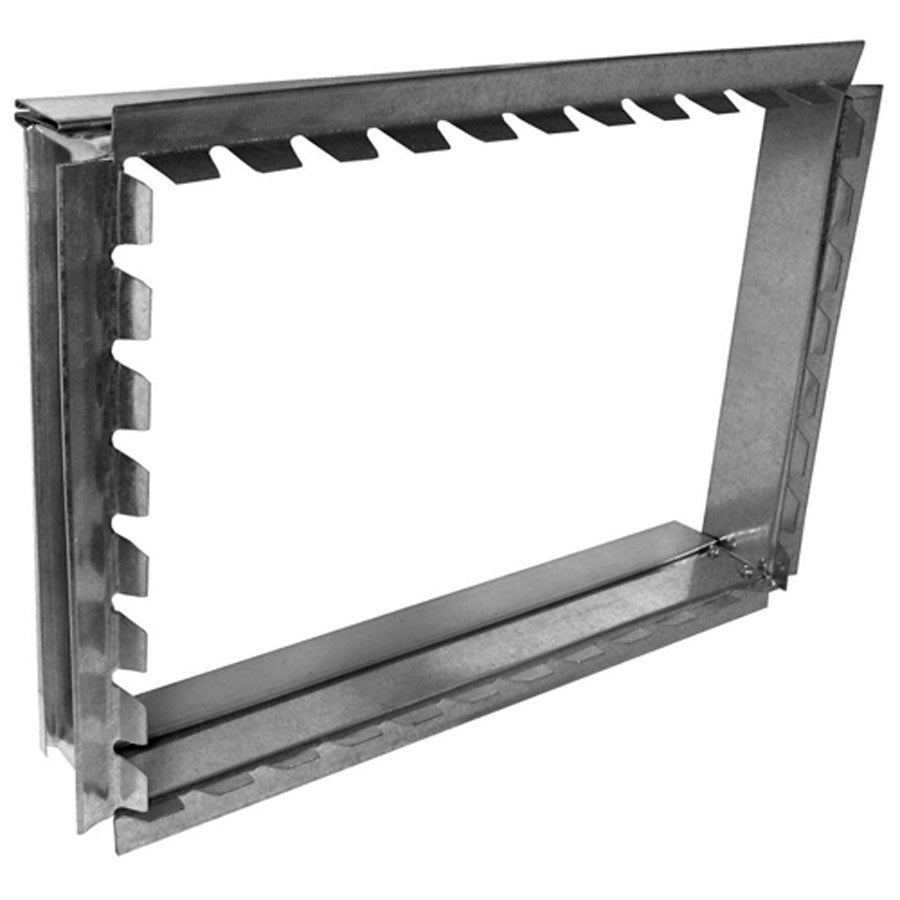

The SOUTHWARK METAL 20_10X10 is a straight rectangular trunk duct collar takeoff fabricated from hot dip galvanized steel. This fitting connects branch ducts to a main trunk line in forced-air HVAC distribution systems. It serves as a starting collar, allowing HVAC installers to transition from a rectangular trunk duct into a branch run. The 10 x 10 inch profile fits standard rectangular duct configurations. Hot dip galvanized construction provides corrosion resistance suited to both conditioned and mechanical spaces. Licensed HVAC technicians and sheet metal workers install this fitting as part of new construction or replacement ductwork assemblies.

This collar is intended for residential and light commercial forced-air duct systems where a straight starting takeoff is required on a rectangular trunk. It is manufactured to ACCA and SMACNA standards, making it appropriate for systems designed and installed under those guidelines. The rectangular body pattern suits trunk-and-branch duct layouts common in gas furnace, air handler, and packaged unit installations.

Key Features

• Hot dip galvanized steel construction for corrosion resistance in HVAC duct environments
• Straight body pattern simplifies installation at trunk duct starting points
• Rectangular profile sized at 10 x 10 inches for standard trunk duct applications
• Manufactured to ACCA and SMACNA applicable standards
• Starting collar design allows direct branch takeoff from main rectangular trunk

Compatibility

Designed as an OEM-style replacement or new-installation fitting for rectangular trunk duct systems requiring a straight 10 x 10 inch starting collar takeoff, in compliance with ACCA and SMACNA duct construction standards.

Installation Notes

Installation is performed by licensed HVAC technicians or journeyman sheet metal workers. The system should be fully powered down and the air handler or furnace shut off before modifying any duct section. Fasten the collar securely to the trunk duct using sheet metal screws and seal all joints with UL-listed duct mastic or metal-backed tape per SMACNA guidelines. Follow local mechanical codes and ACCA Manual D duct design requirements for proper sizing and airflow balance.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Size: 10 inches Length x 10 inches Width
• Body Pattern: Straight
• Type: Starting, Rectangular
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 20_10X10
