Southwark Metal 15_24X12 Trunk Duct Angle 45 Degree 24x12

Product Description

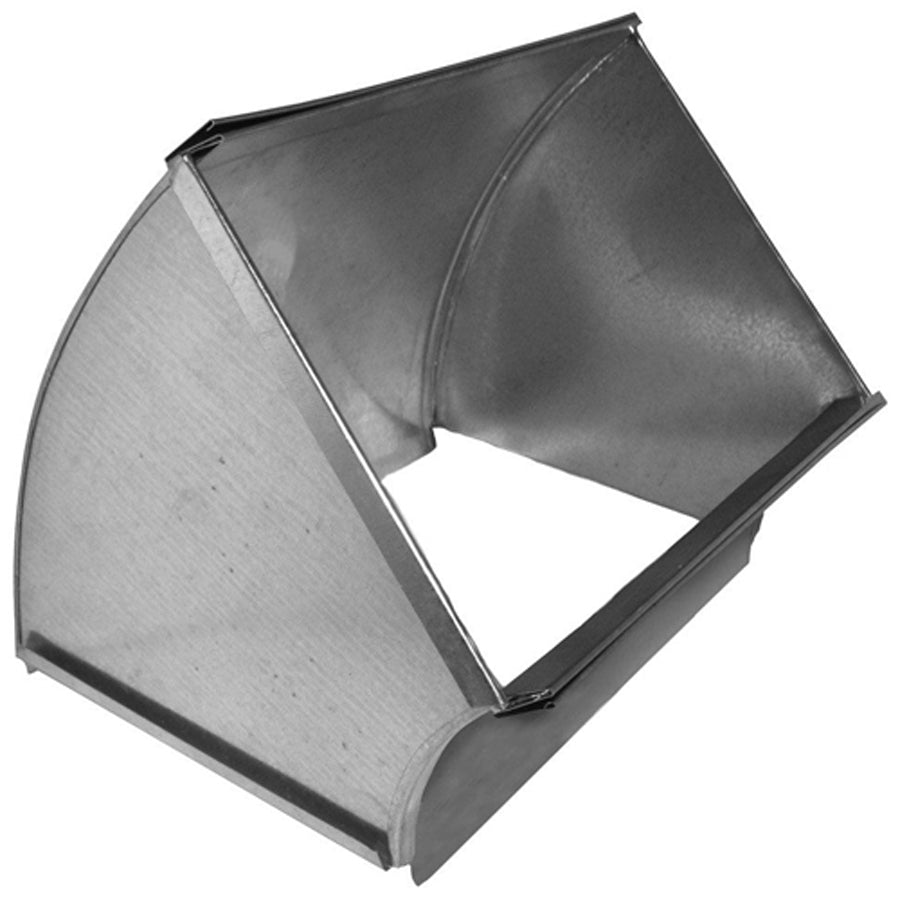

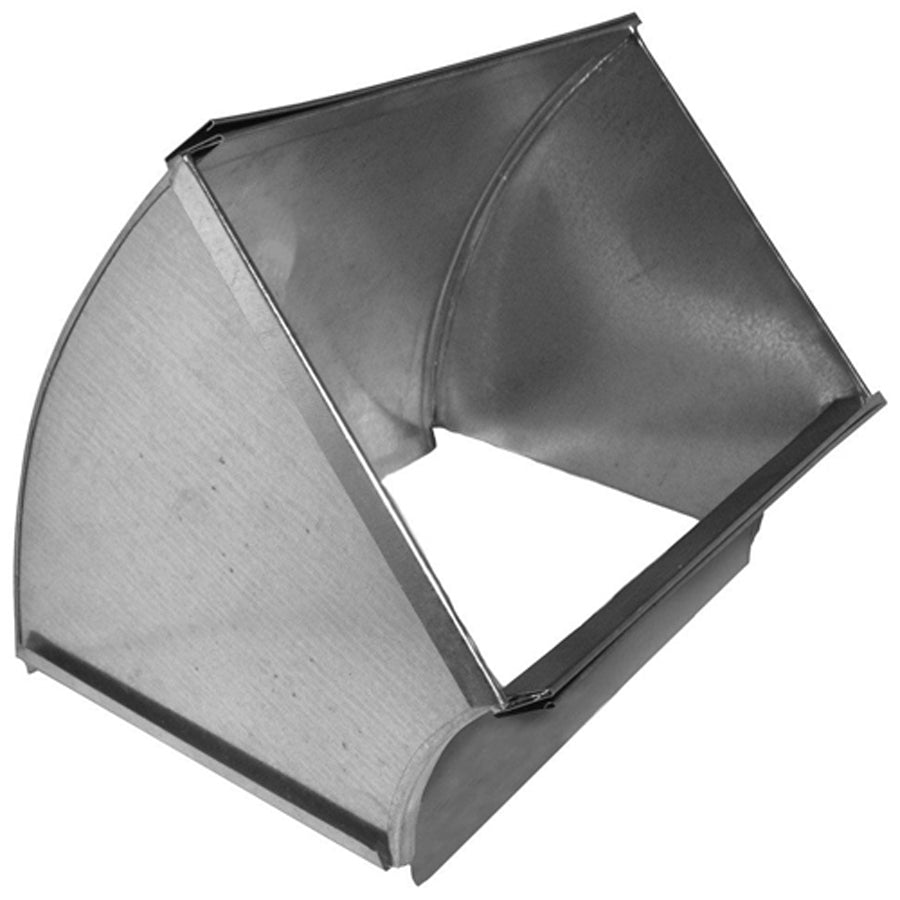

The SOUTHWARK METAL 15_24X12 is a 45-degree shortway trunk duct angle fitting used in rectangular sheet metal ductwork systems. Fabricated from hot-dip galvanized steel, this vertical-orientation elbow is designed for HVAC air distribution systems where a shortway turn is required on a 24-inch by 12-inch trunk duct. It meets ACCA and SMACNA standards, making it suitable for commercial and residential forced-air installations. Sheet metal mechanics and HVAC installers use this fitting when routing rectangular trunk duct through tight spaces or around structural obstructions that require a 45-degree directional change on the short dimension.

This fitting is used in rectangular ducted HVAC systems where the 24-inch by 12-inch duct profile requires a shortway 45-degree angle transition. The vertical orientation is appropriate for horizontal trunk runs that need a direction change without transitioning to a different duct size. Typical applications include residential and light commercial forced-air systems, where SMACNA and ACCA duct construction guidelines govern fabrication and installation standards.

Key Features

• 45-degree shortway angle for directional changes on the short axis of rectangular duct
• Hot-dip galvanized steel construction for corrosion resistance in HVAC environments
• Vertical orientation suits horizontal trunk duct routing
• Rectangular profile maintains consistent 24-inch by 12-inch duct dimensions at both ends
• Meets ACCA and SMACNA applicable standards for sheet metal duct fabrication

Compatibility

Designed for use with rectangular sheet metal trunk duct systems with a 24-inch by 12-inch cross-section, conforming to ACCA and SMACNA duct construction standards.

Installation Notes

Installation should be performed by a qualified sheet metal mechanic or licensed HVAC technician. The air handling system must be powered down and airflow isolated before fitting installation or modification of existing ductwork. Connections should be sealed with approved duct sealant or metal-backed tape and fastened per SMACNA guidelines. Follow all applicable local mechanical codes when integrating this fitting into a ducted system.

Technical Specifications

• Angle: 45 degrees
• Frame Size: 24 inches x 12 inches
• Size A: 24 inches length x 12 inches width
• Size B: 24 inches length x 12 inches width
• Type: Vertical, Shortway, Rectangular
• Material: Hot Dip Galvanized Steel
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 15_24X12
