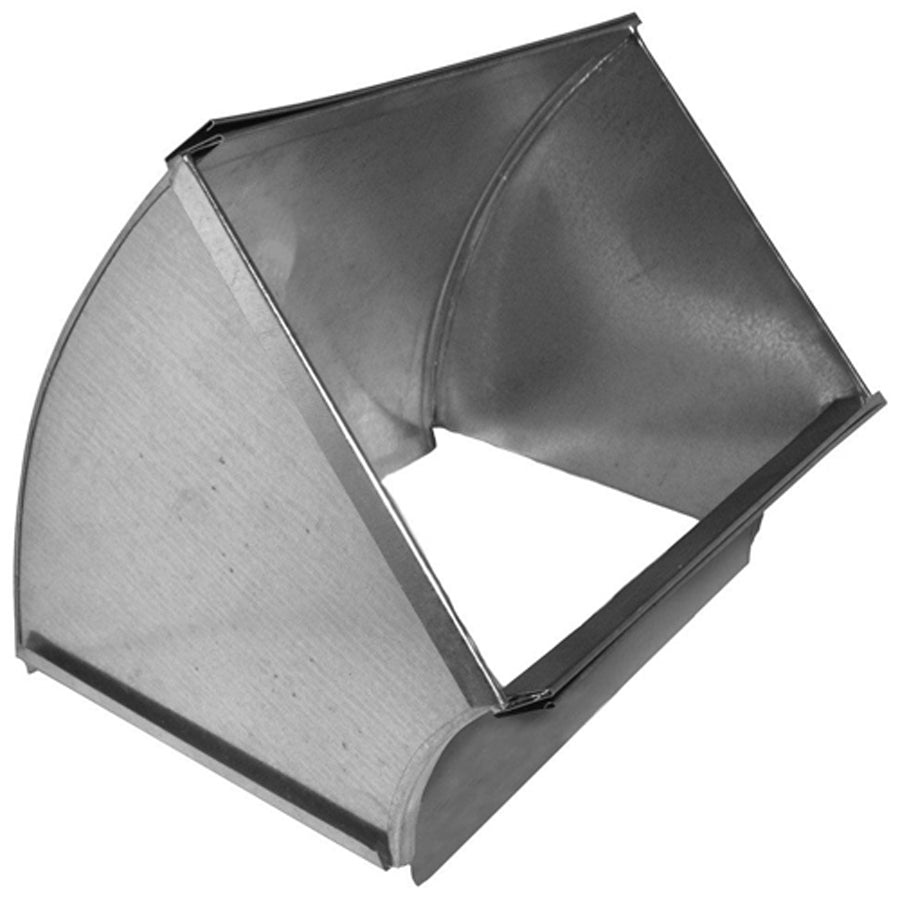

Southwark Metal 15_22X10 Trunk Duct Angle 22x10 in 45 Deg

Product Description

The SOUTHWARK METAL 15_22X10 is a rectangular trunk duct angle fitting designed for use in sheet metal ductwork systems. Constructed from hot dip galvanized steel, this fitting provides a 45-degree shortway turn in vertical duct runs. It measures 22 inches by 10 inches on both the inlet and outlet faces, making it a symmetrical transition piece. HVAC sheet metal installers use this fitting where duct systems require a directional change while maintaining the same cross-sectional duct size. The galvanized steel construction resists corrosion in both residential and light commercial HVAC applications.

This trunk duct angle is suited for rectangular sheet metal duct systems in forced-air heating and cooling installations. It is designed for vertical orientation with a shortway configuration, which positions the turn along the shorter dimension of the duct. Installers working in tight mechanical rooms or attic spaces where duct routing requires controlled directional changes will find this fitting appropriate for standard trunk line applications. Fabricated to ACCA and SMACNA standards, it integrates with conventional rectangular duct systems built to industry guidelines.

Key Features

• 45-degree shortway angle for controlled directional changes in rectangular duct runs
• Hot dip galvanized steel construction for corrosion resistance in HVAC environments
• Symmetrical 22 inch by 10 inch face on both inlet and outlet sides
• Vertical orientation supports typical trunk line routing configurations
• Fabricated to ACCA and SMACNA standards for industry-compliant duct systems

Compatibility

Designed as an OEM-style sheet metal fitting for rectangular trunk duct systems built to ACCA and SMACNA specifications. Compatible with 22 inch by 10 inch rectangular duct sections.

Installation Notes

Installation should be performed by a qualified HVAC technician or sheet metal mechanic familiar with SMACNA duct construction standards. Power down the air handling system before connecting or sealing duct fittings. Seal all joints with approved duct sealant or mastic and secure connections with sheet metal screws per local mechanical code requirements. Support the duct run per SMACNA hanger spacing guidelines to prevent sagging or joint stress.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Angle: 45 degrees
• Type: Vertical, Shortway, Rectangular
• Size A: 22 inches x 10 inches
• Size B: 22 inches x 10 inches
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 15_22X10
