Southwark Metal 15_10X10 Trunk Duct Angle 45 Degree 10x10

Product Description

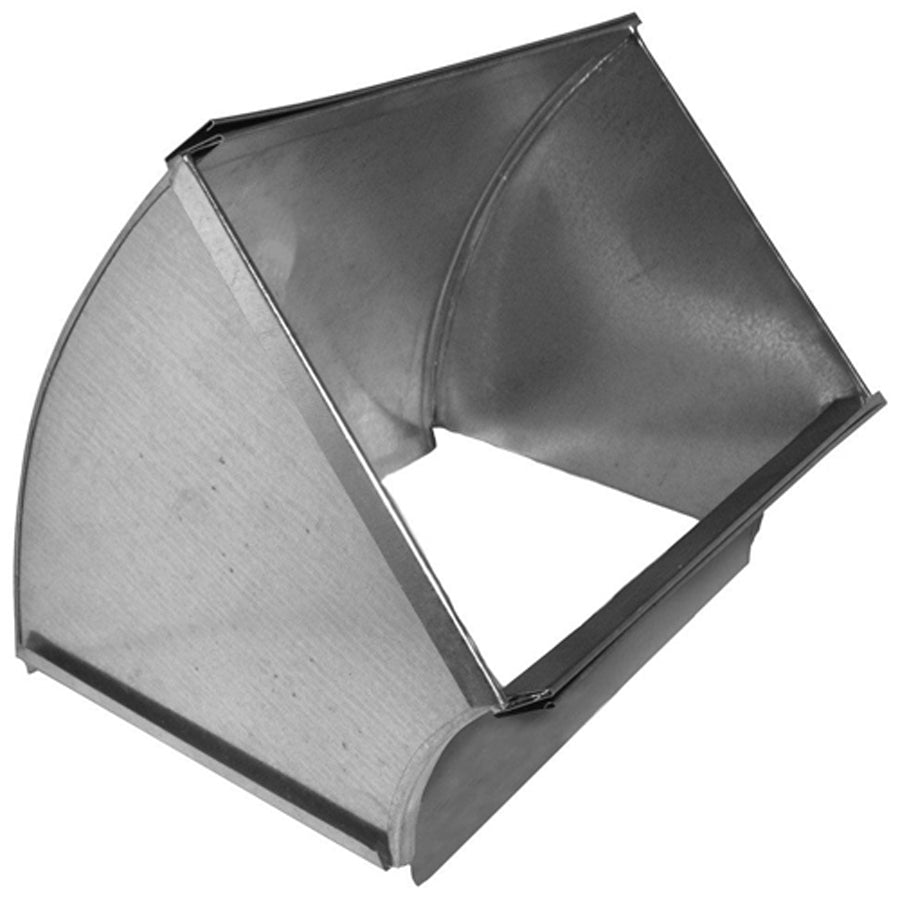

The SOUTHWARK METAL 15_10X10 is a 45-degree shortway trunk duct angle fabricated from hot dip galvanized steel for use in rectangular sheet metal duct systems. This fitting is oriented vertically and is designed to make a 45-degree directional change in the shortway plane of a trunk duct run. It is sized at 10 inches by 10 inches on both the inlet and outlet. HVAC sheet metal installers and duct fabricators use this fitting during new construction and retrofit ductwork installations where space constraints require a shortway turn rather than a longway configuration.

This trunk duct angle fits residential and light commercial forced-air HVAC systems using rectangular sheet metal ductwork. It is suited for supply or return trunk lines where a 45-degree vertical shortway transition is required. The fitting meets ACCA and SMACNA standards, making it appropriate for duct systems designed and installed to those widely adopted industry guidelines. Installers working on systems requiring code-compliant duct construction will find this fitting consistent with standard sheet metal practice.

Key Features

• 45-degree angle provides a gradual directional change to reduce static pressure loss in the duct system
• Shortway vertical orientation suited for installations with limited overhead or lateral clearance
• Hot dip galvanized steel construction resists corrosion in typical conditioned-air environments
• 10 inch by 10 inch inlet and outlet sizing on both Size A and Size B ends
• Meets ACCA and SMACNA applicable standards for duct fabrication and system design
• Rectangular profile integrates directly into standard rectangular trunk duct runs

Compatibility

Designed as an OEM-style sheet metal fitting for rectangular trunk duct systems requiring a 45-degree shortway vertical angle transition at a 10 inch by 10 inch duct size.

Installation Notes

This fitting is installed by licensed HVAC technicians or sheet metal mechanics as part of a duct fabrication or replacement project. Power down the air handling unit and close the system before modifying any duct section. Connections should be sealed with listed duct sealant and mechanically fastened per SMACNA standards to maintain system integrity and meet local mechanical code requirements. Do not modify the fitting geometry in the field, as altering the angle or cross-section will affect system airflow performance.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Angle: 45 degrees
• Type: Vertical, Shortway, Rectangular
• Size A: 10 inches x 10 inches
• Size B: 10 inches x 10 inches
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 15_10X10
