Southwark Metal 13_24X8 Trunk Duct Angle 45 Degree 24x8

Product Description

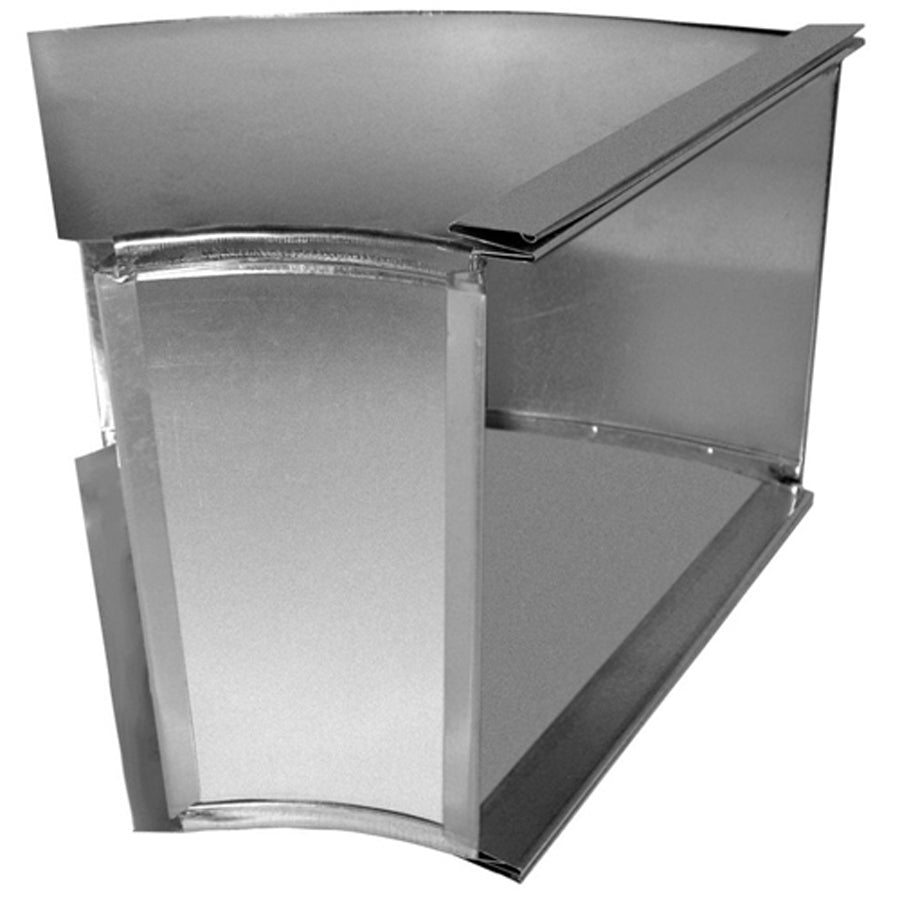

The SOUTHWARK METAL 13_24X8 is a 45-degree flat Broadway rectangular trunk duct angle fabricated from hot dip galvanized steel. This fitting is used to change direction in rectangular sheet metal duct trunk systems, providing a clean 45-degree turn while maintaining the full duct cross-section. It measures 24 inches by 8 inches on both the A and B connections. Sheet metal contractors and HVAC installers use this fitting in forced-air distribution systems where trunk lines require an angled transition rather than a straight run.

This trunk duct angle is suited for residential and light commercial HVAC ductwork installations where rectangular trunk duct is the primary distribution method. The flat Broadway profile is a standard configuration compatible with conventional sheet metal trunk runs. Fabrication meets ACCA and SMACNA standards, making it appropriate for installations that require conformance to those industry specifications.

Key Features

• 45-degree angle for directional trunk duct transitions
• Hot dip galvanized steel construction for corrosion resistance
• Flat Broadway rectangular profile for standard trunk duct integration
• 24 x 8 inch sizing on both A and B connections
• Fabricated to ACCA and SMACNA applicable standards

Compatibility

Designed as an OEM-style replacement and new-construction fitting for rectangular sheet metal trunk duct systems following ACCA and SMACNA duct construction standards.

Installation Notes

Installation is performed by licensed sheet metal contractors or qualified HVAC technicians. Shut down the air handling unit and de-energize the system before modifying any ductwork. Secure connections with appropriate sheet metal screws and seal all joints with UL 181-listed mastic or foil tape per local mechanical code requirements. Follow SMACNA duct construction standards for support spacing and hanger intervals.

Technical Specifications

• Angle: 45 degrees
• Size A: 24 inches x 8 inches
• Size B: 24 inches x 8 inches
• Type: Flat, Broadway, Rectangular
• Material: Hot Dip Galvanized Steel
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 13_24X8
