Southwark Metal 13_24X10 Trunk Duct Angle 45 Degree

Product Description

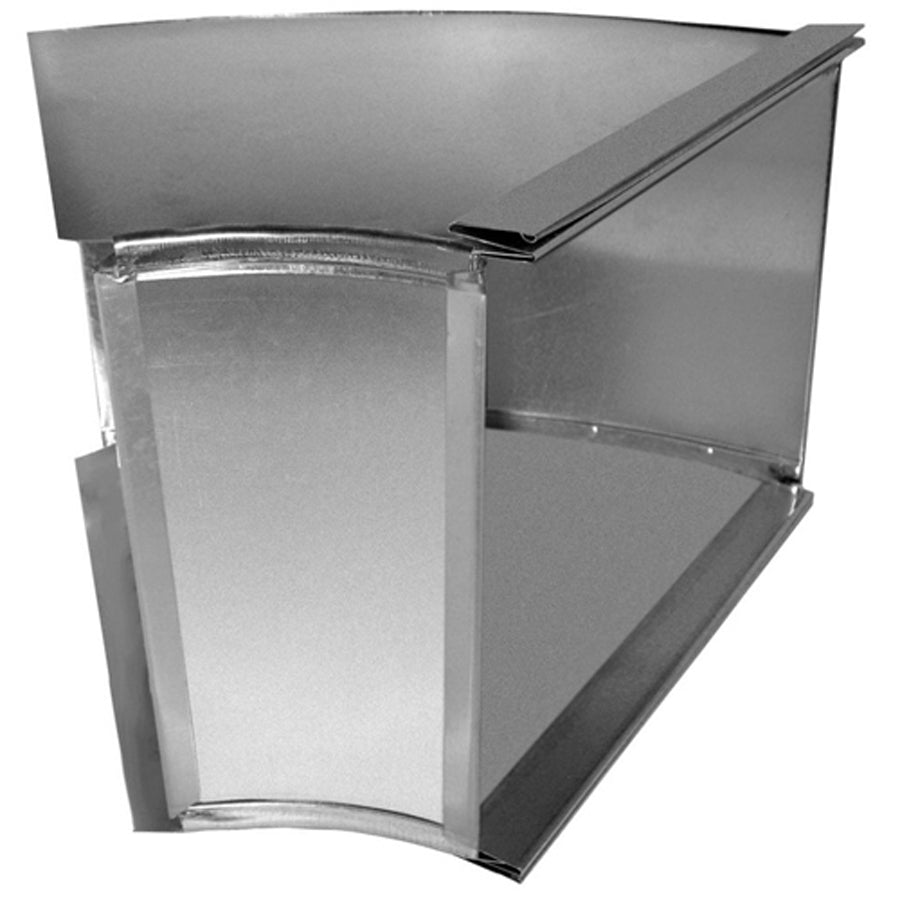

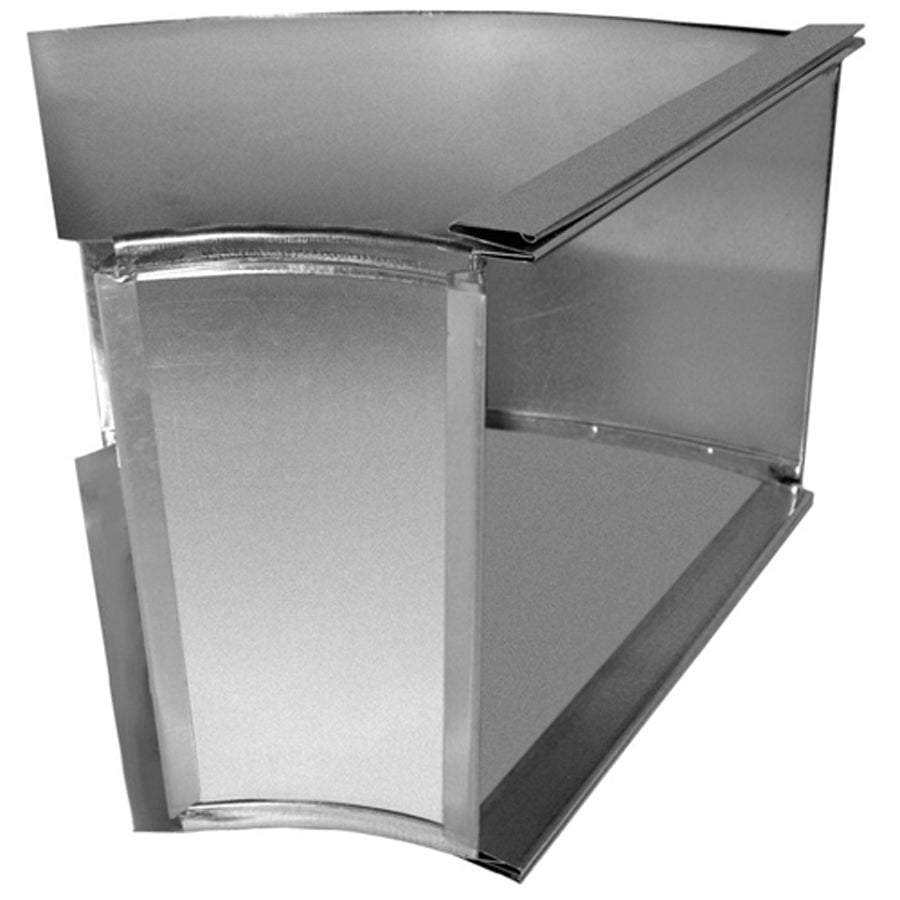

The SOUTHWARK METAL 13_24X10 is a 45-degree flat trunk duct angle used in rectangular sheet metal ductwork systems. Fabricated from hot dip galvanized steel, this Broadway-style angle fitting provides a durable, corrosion-resistant connection point where trunk ducts change direction. The 45-degree angle configuration allows HVAC installers to make directional transitions in tight mechanical spaces without field-fabricating custom fittings. It measures 24 inches by 10 inches and meets ACCA and SMACNA standards for residential and light commercial duct construction.

This fitting is suited for rectangular trunk duct assemblies in forced-air heating and cooling systems. Sheet metal mechanics and HVAC installers use it during new construction and retrofit duct installations where a 45-degree directional change is required in a flat, Broadway-profile trunk line. The galvanized finish makes it appropriate for conditioned and semi-conditioned spaces where moisture resistance is a standard requirement.

Key Features

• 45-degree angle for directional trunk duct transitions
• Hot dip galvanized steel construction for corrosion resistance
• Flat, Broadway, rectangular profile for standard trunk duct systems
• 24 x 10 inch sizing fits common residential and light commercial trunk lines
• Meets ACCA and SMACNA applicable standards

Compatibility

Designed for use in flat, Broadway-style rectangular trunk duct assemblies conforming to ACCA and SMACNA ductwork standards.

Installation Notes

Installation should be performed by a qualified sheet metal mechanic or licensed HVAC technician. Power down the air handling system before connecting or sealing any duct sections. Joints should be sealed with approved duct sealant or mastic in accordance with local mechanical codes and SMACNA guidelines. Secure fittings with appropriate sheet metal screws at all connection points before applying insulation or vapor barriers.

Technical Specifications

• Angle: 45 degrees
• Material: Hot Dip Galvanized Steel
• Size A: 24 inches x 10 inches
• Size B: 24 inches x 10 inches
• Type: Flat, Broadway, Rectangular
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 13_24X10
