Southwark Metal 13_22X10 Trunk Duct Angle 45 Degree

Product Description

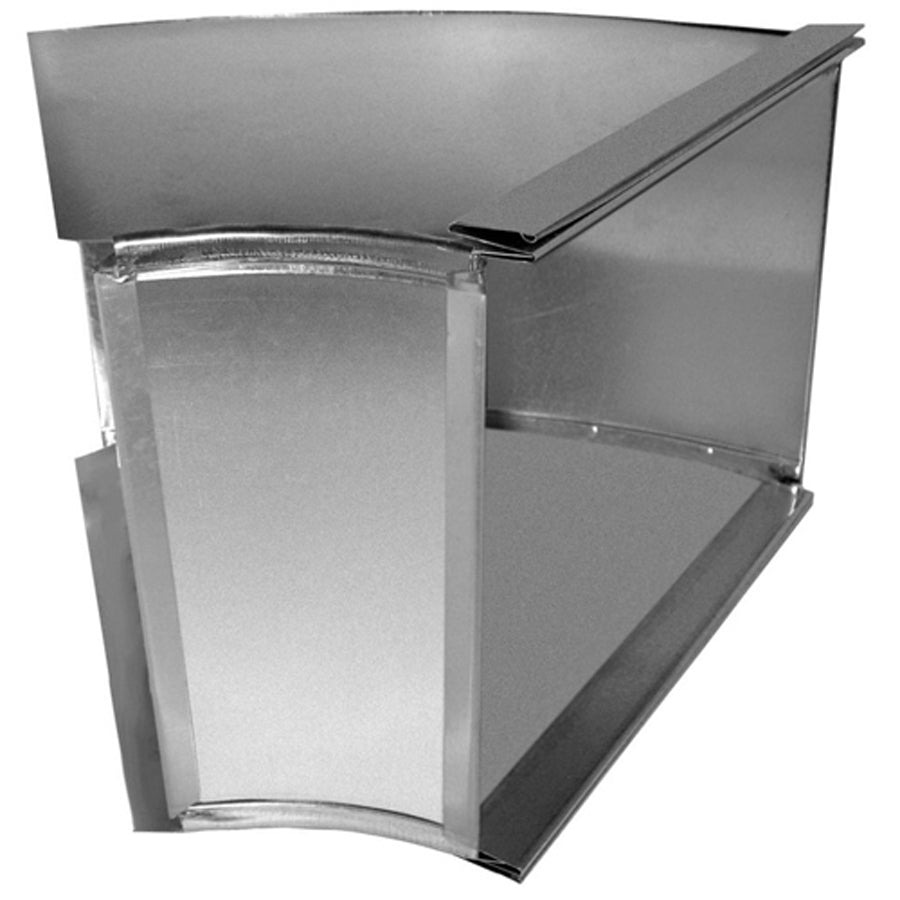

The SOUTHWARK METAL 13_22X10 is a 45-degree flat trunk duct angle fitting designed for rectangular sheet metal ductwork systems. Fabricated from hot dip galvanized steel, this Broadway-style angle fitting delivers corrosion-resistant performance in forced-air HVAC distribution systems. It measures 22 inches by 10 inches on both the A and B sides, making it suitable for main trunk transitions and directional changes in residential and light commercial duct installations. Licensed HVAC technicians and sheet metal contractors install this fitting as part of engineered duct systems built to ACCA and SMACNA standards.

This trunk duct angle fitting is used in rectangular duct assemblies where a 45-degree directional change is required along the main supply or return trunk. The flat, Broadway-style profile suits installations where low-clearance routing is a priority. At 22 inches by 10 inches, it fits mid-size trunk duct runs common in residential systems and small commercial applications. Fabrication and installation should conform to ACCA Manual D duct design guidelines and SMACNA duct construction standards for sheet metal systems.

Key Features

• 45-degree angle for precise trunk duct directional transitions
• Hot dip galvanized steel construction for corrosion resistance in HVAC duct systems
• Flat Broadway rectangular profile suits low-clearance or space-constrained installations
• 22 x 10 inch sizing fits mid-range residential and light commercial trunk duct runs
• Compliant with ACCA and SMACNA applicable standards for duct fabrication

Compatibility

Designed as an OEM-style sheet metal fitting for rectangular trunk duct systems built and installed to ACCA and SMACNA duct construction standards.

Installation Notes

Installation should be performed by a licensed sheet metal contractor or HVAC technician familiar with SMACNA duct construction standards. Power down the air handling unit and close dampers before cutting into or modifying an existing duct system. Secure all seams with appropriate sheet metal screws and approved duct sealant per local mechanical code requirements. Do not use this fitting in applications outside its rated rectangular duct profile dimensions.

Technical Specifications

• Angle: 45 degrees
• Size A: 22 inches length x 10 inches width
• Size B: 22 inches length x 10 inches width
• Material: Hot Dip Galvanized Steel
• Type: Flat, Broadway, Rectangular
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 13_22X10
