Southwark Metal 13_10X10 Trunk Duct Angle 10x10 in 45 Deg

Product Description

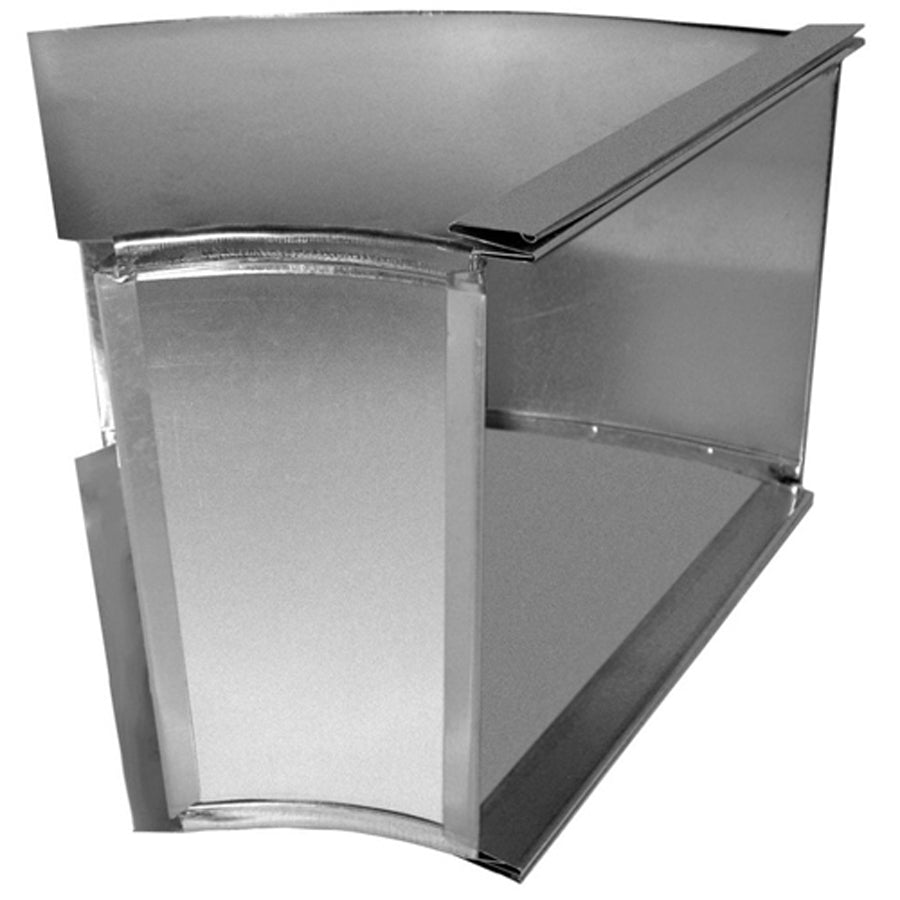

The SOUTHWARK METAL 13_10X10 is a 45-degree flat Broadway rectangular trunk duct angle fabricated from hot dip galvanized steel. This fitting is used to transition or redirect rectangular sheet metal ductwork at a 45-degree angle within forced-air HVAC trunk and branch distribution systems. The flat Broadway style provides a low-profile bend profile suited for tight mechanical spaces. Sized at 10 inches by 10 inches on both the A and B ends, this angle fitting maintains consistent duct cross-section through the turn. Installation is performed by licensed sheet metal workers and HVAC technicians working on residential or light commercial duct systems.

This trunk duct angle is appropriate for rectangular sheet metal duct systems where a 45-degree direction change is required along the main trunk run. The flat Broadway rectangular profile is a standard configuration in forced-air heating and cooling distribution systems built to ACCA and SMACNA standards. Both the A and B duct connections measure 10 inches by 10 inches, making this a straight-size fitting with no transition in cross-sectional area through the elbow. It is well suited for new construction duct fabrication and retrofit or repair work on existing galvanized duct systems.

Key Features

• 45-degree angle for directing rectangular trunk duct runs without a full 90-degree turn
• Flat Broadway rectangular profile provides a compact, low-profile elbow geometry
• Hot dip galvanized steel construction resists corrosion in conditioned air applications
• Uniform 10-inch by 10-inch duct size on both A and B ends — no cross-sectional reduction
• Fabricated to ACCA and SMACNA applicable standards for sheet metal ductwork

Compatibility

Designed as an OEM-style sheet metal fitting for rectangular galvanized trunk duct systems conforming to ACCA and SMACNA standards with a 10-inch by 10-inch duct opening on both connection ends.

Installation Notes

Installation is performed by qualified sheet metal workers or licensed HVAC technicians. Shut down the air handling unit and isolate the system before cutting into or modifying an existing duct trunk. Secure the fitting with sheet metal screws and seal all joints with UL 181-listed duct sealant or foil tape per local mechanical code requirements. Follow SMACNA installation guidelines for support spacing and hanger placement when integrating this fitting into the trunk run.

Technical Specifications

• Angle: 45 degrees
• Size A: 10 inches x 10 inches
• Size B: 10 inches x 10 inches
• Type: Flat Broadway Rectangular
• Material: Hot Dip Galvanized Steel
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 13_10X10
