Southwark Metal 137ND23472 Galvanized Drain Pan 34x72 in

Product Description

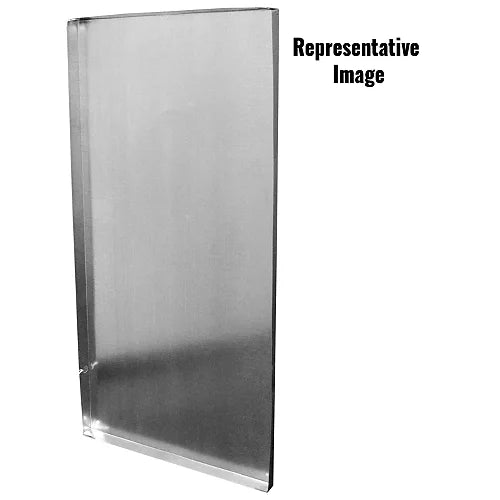

The SOUTHWARK METAL 137ND23472 is a galvanized steel drain pan designed to catch condensate and prevent water damage beneath HVAC air handlers, fan coils, and similar mechanical equipment. Fabricated from hot-dipped galvanized steel conforming to ASTM A653 CS Type B, this pan measures 34 inches wide by 72 inches long with a 2-inch depth. The no-drain configuration provides a sealed basin, making it well-suited for installations where a secondary containment pan is required without a piped condensate outlet. It is installed by licensed HVAC technicians and sheet metal contractors as part of a compliant mechanical equipment installation.

This drain pan is used in residential and light commercial HVAC applications where a large-footprint secondary pan is needed beneath air-handling units or coil cabinets. The 34 by 72 inch footprint accommodates a range of larger equipment configurations. The 2-inch depth provides adequate volume to contain incidental condensate or minor equipment leaks. The no-drain design suits installations where the pan is monitored or where local code allows for a sealed secondary containment approach.

Key Features

• Hot-dipped galvanized steel per ASTM A653 CS Type B for corrosion resistance
• 34 inches x 72 inches footprint to fit large air handlers and fan coils
• 2-inch depth provides meaningful secondary containment volume
• No-drain configuration for sealed secondary containment installs
• 24-gauge construction for structural rigidity
• Folded corners for a watertight, leak-resistant pan body

Compatibility

Designed as an OEM-style replacement or new-installation drain pan for residential and light commercial HVAC equipment requiring a 34 by 72 inch secondary containment pan with no drain outlet.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal contractor. Shut down and de-energize all associated mechanical equipment before placing or repositioning the pan. Verify that the pan is level to ensure proper condensate containment across the full surface area. Check applicable local mechanical codes for secondary drain pan requirements, as many jurisdictions follow IMC or ASHRAE guidelines for equipment installed above occupied spaces.

Technical Specifications

• Material: Hot-dipped galvanized steel per ASTM A653 CS Type B
• Length: 72 inches
• Width: 34 inches
• Depth: 2 inches
• Gauge: 24 gauge
• Drain Configuration: No drain
• Corner Construction: Folded corners

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 137ND23472
