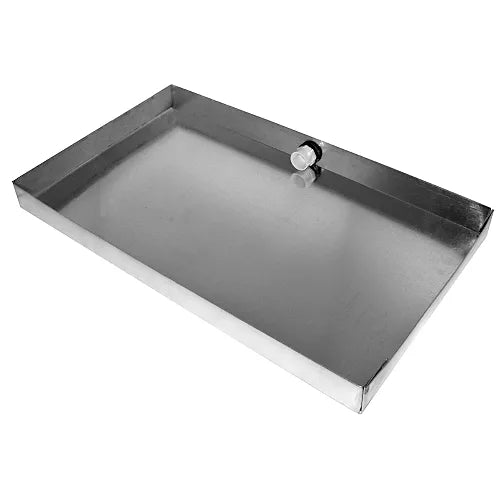

Southwark Metal 137ND23060 Drain Pan No Drain 30 Inches X 60 Inches 2 Inches Deep 26 Gauge

Product Description

The Southwark Metal 137ND23060 is a galvanized steel drain pan designed to collect condensation from air handlers and furnaces with coils. It measures 30 inches wide by 60 inches long and sits 2 inches deep, giving it enough capacity to catch drips and prevent water damage to walls, ceilings, and floors. This pan is built without a drain connection, making it a straightforward secondary containment solution where a drain line is not required or practical. HVAC technicians and installers rely on drain pans like this one during equipment installation and replacement to meet code requirements and protect building structures from moisture damage. The 137ND23060 is manufactured from 26-gauge hot-dipped galvanized steel, which resists rust and corrosion over years of continuous exposure to condensation. The folded corners and hemmed edges add structural rigidity, helping the pan hold its shape under the weight of equipment and collected water. At 12.25 pounds, this pan is heavy enough to stay in place but manageable for one or two technicians to position during installation. It ships as a single unit and is made in the USA, which matters to contractors working on projects with domestic sourcing requirements. The 26-gauge construction falls within the standard range used for HVAC drain pans and provides a solid balance of durability and weight. This pan fits under large residential or light commercial air handlers and coil units. It is a practical, code-friendly component for any HVAC system installation where condensate containment is needed without a drain outlet.

• Measures 30 inches x 60 inches with a 2-inch depth for reliable condensate containment
• Constructed from 26-gauge hot-dipped galvanized steel with folded corners and hemmed edges for durability
• No drain connection design suits installations where a drain line is not required

Product Highlights

The Southwark Metal 137ND23060 drain pan provides dependable condensate containment for air handlers and furnaces with coils. Its hot-dipped galvanized steel construction and reinforced edges deliver long-lasting corrosion resistance in demanding HVAC environments.

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 137ND23060

Technical Specifications

• Size: 30 inches x 60 inches
• Depth: 2 inches
• Gauge: 26 GA
• Material: Steel
• Galvanized: Yes
• Drain Connection Quantity: 0
• Drain Connection Size: No Drain
• For Use With: Air Handler or Furnace with Coil
• Weight: 12.25 pounds
• Country of Origin: USA
• UPC: 099274637401
• Prop 65: Yes
