Southwark Metal 137ND22424 Drain Pan 2 Inches Deep 26 Gauge 24 Inches X 24 Inches No Drain

Product Description

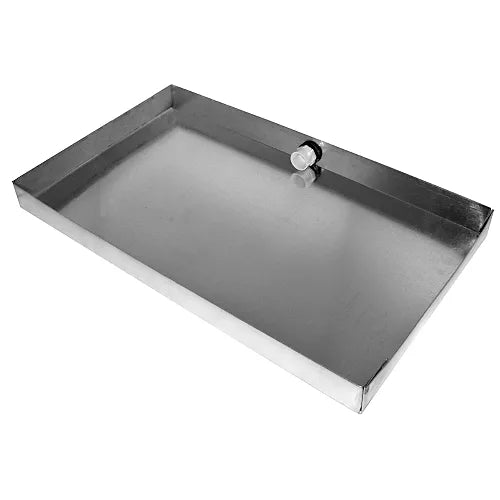

The Southwark Metal 137ND22424 is a 24 inches x 24 inches galvanized steel drain pan designed for use beneath air handlers and furnaces with coils. Built to 26 gauge steel and formed 2 inches deep, this pan provides a sturdy, corrosion-resistant barrier that collects condensate and protects the surrounding structure from water damage. HVAC technicians and installers rely on drain pans like this one to meet code requirements and safeguard equipment installations in both residential and commercial settings. The no-drain configuration means this pan has no pre-punched or fitted drain connection, making it well suited for situations where the installer needs to field-fabricate a drain outlet or where the pan is used as a secondary containment layer without a direct drain line. Manufactured in the USA, this pan carries a Prop 65 designation and ships as a single unit. The galvanized coating applied to the steel surface resists rust and moisture, extending the service life of the pan even in high-humidity environments typical of cooling season operation. At 4.22 pounds, it is lightweight enough for one-person handling during installation. The 137 product family from Southwark Metal covers a broad range of sheet metal HVAC components trusted by professional contractors across the trade. Whether you are replacing a failed or rusted existing pan, installing a new air handler, or adding secondary containment under an attic or closet coil unit, this 24 inches x 24 inches drain pan delivers the depth, gauge, and material quality that the job demands. Proper drain pan installation helps prevent mold growth, structural water damage, and equipment failure caused by uncollected condensate.

• 24 inches x 24 inches footprint fits standard air handler and furnace with coil installations
• 2 inches deep galvanized 26 gauge steel construction resists corrosion and retains condensate securely
• No-drain design allows field customization of the drain outlet location

Product Highlights

The Southwark Metal 137ND22424 is a USA-made, galvanized 26 gauge steel drain pan sized at 24 inches x 24 inches with a 2 inches depth, built for professional HVAC installation under air handlers and furnaces with coils. Its no-drain configuration gives installers full flexibility for field-applied drain connections.

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 137ND22424

Technical Specifications

• Size: 24 inches x 24 inches
• Length: 24 inches
• Width: 24 inches
• Height (Depth): 2 inches
• Gauge: 26 GA
• Material: Steel
• Galvanized: Yes
• Weight: 4.22 pounds
• Drain Connection Quantity: 0
• Drain Connection Size: No Drain
• For Use With: Air Handler or Furnace with Coil
• Product Family: 137
• Country of Origin: USA
• Prop 65: Yes
• UPC: 099274660553
