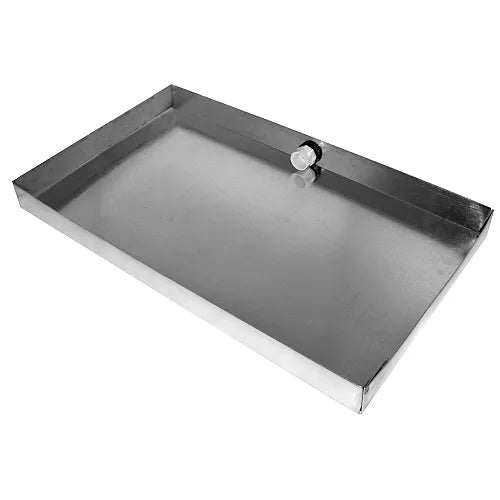

Southwark Metal 137MD23036 Drain Pan 2 Inches Deep 30 X 36 Inches Middle Short Side Drain

Product Description

The Southwark Metal 137MD23036 is a galvanized steel drain pan designed for use beneath air handlers and furnaces with coils. It measures 30 inches in length by 36 inches in width and stands 2 inches deep. This pan is built to catch condensate and prevent water damage in HVAC installations where a reliable, code-compliant drip pan is required. The drain connection is positioned in the middle of the short side, making it easy to route condensate lines without awkward bends or fittings. HVAC technicians and installers rely on this type of drain pan during new equipment installs and system replacements to protect ceilings, floors, and structural components from moisture intrusion. The 137MD23036 is fabricated from hot dipped galvanized steel conforming to ASTM A653 CS Type B standards. This galvanizing process provides strong corrosion resistance, which is critical in environments where the pan is constantly exposed to water and humidity. The steel is 26 gauge, offering a solid balance of rigidity and manageable weight at 7.32 pounds. A single 3/4 inch drain connection allows for straightforward condensate line hookup using standard PVC or copper fittings commonly found on any HVAC service truck. The pan ships as a single unit and is manufactured in the USA, meeting Proposition 65 compliance requirements. For contractors working on residential or light commercial HVAC systems, this pan fits into the Southwark 137 product family, which is a well-known line of sheet metal HVAC accessories. Whether you are installing a new air handler in an attic, a basement, or a utility closet, this drain pan provides the containment and durability needed for a professional, long-lasting installation.

• 30 inches x 36 inches footprint with 2 inches of depth for reliable condensate containment
• Hot dipped galvanized steel per ASTM A653 CS Type B for corrosion resistance in high-humidity environments
• Single 3/4 inch drain connection centered on the short side for easy condensate line routing

Product Highlights

The Southwark Metal 137MD23036 drain pan delivers durable, corrosion-resistant condensate containment for air handlers and furnaces with coils. Its center-short-side drain placement and 26 gauge galvanized steel construction make it a dependable choice for professional HVAC installations.

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 137MD23036

Technical Specifications

• Length: 30 inches
• Width: 36 inches
• Depth: 2 inches
• Gauge: 26 GA
• Material: Hot Dipped Galvanized Steel
• ASTM Standard: A653 CS Type B
• Drain Connection Quantity: 1
• Drain Connection Size: 3/4 inches
• Drain Position: Middle of Short Side
• Weight: 7.32 pounds
• For Use With: Air Handler or Furnace with Coil
• Galvanized: Yes
• Country of Origin: USA
• Prop 65: Yes
