Southwark Metal 137243060 Drain Pan 30 X 60 Inches 24 Gauge Long Side

Product Description

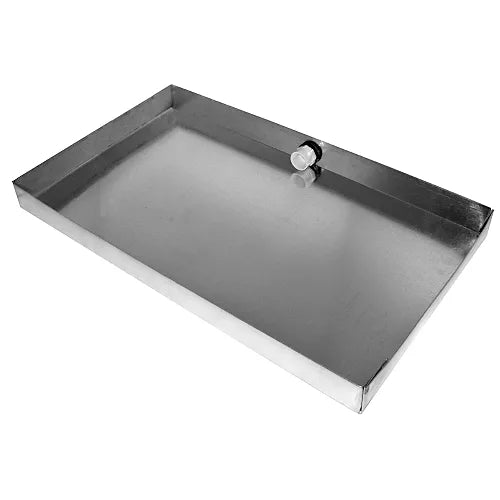

The Southwark Metal 137243060 is a 24-gauge galvanized steel drain pan designed for use with air handlers and furnaces with coils. It measures 30 inches wide by 60 inches long and 2 inches deep, giving HVAC technicians a reliable condensate containment solution for large equipment installations. The pan is constructed from 24-gauge steel with a galvanized finish, which helps resist corrosion from standing water and condensate that accumulates during normal cooling system operation. This drain pan is oriented with the long side configuration, making it well suited for horizontal air handler setups where the coil sits lengthwise above the pan. It includes a single 3/4 inch drain connection for routing condensate to a drain line. HVAC professionals rely on drain pans like this one to catch condensate drip from evaporator coils, preventing water damage to ceilings, floors, and mechanical rooms. A properly sized and installed drain pan is a critical part of any split system or packaged unit installation. The 30 by 60 inch footprint accommodates larger residential and light commercial air handlers and coil cabinets that would not fit a standard-sized pan. At 24 gauge, the steel is thick enough to hold its shape under load and resist denting during installation and service calls. This pan is manufactured in the USA, which meets the sourcing requirements for many commercial and government projects. It is sold individually and weighs approximately 14.82 pounds, making it manageable for one technician to position during installation. Whether you are replacing a rusted or damaged existing pan or installing a new system, the Southwark Metal 137243060 provides a straightforward, code-compatible condensate management solution.

• Galvanized 24-gauge steel construction resists corrosion from condensate exposure
• 30 inches by 60 inches footprint with 2-inch depth accommodates large air handlers and furnace coil assemblies
• Single 3/4 inch drain connection for easy tie-in to condensate drain lines

Product Highlights

The Southwark Metal 137243060 drain pan offers a durable, USA-made galvanized steel solution for condensate containment on large air handler and furnace-with-coil installations. Its 30 by 60 inch long-side configuration and 3/4 inch drain outlet make it a practical fit for standard and oversized horizontal HVAC equipment.

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 137243060

Technical Specifications

• Size: 30 inches x 60 inches
• Height: 2 inches
• Width: 30 inches
• Length: 60 inches
• Gauge: 24 GA
• Material: Steel
• Galvanized: Yes
• Drain Connection Quantity: 1
• Drain Connection Size: 3/4 inches
• For Use With: Air Handler or Furnace with Coil
• Country of Origin: USA
• Weight: 14.82 pounds
• Prop 65: Yes
