Southwark Metal 137242424NH Galvanized Drain Pan No Drain 24 Inches X 24 Inches 2 Inches Deep 24 Gauge

Product Description

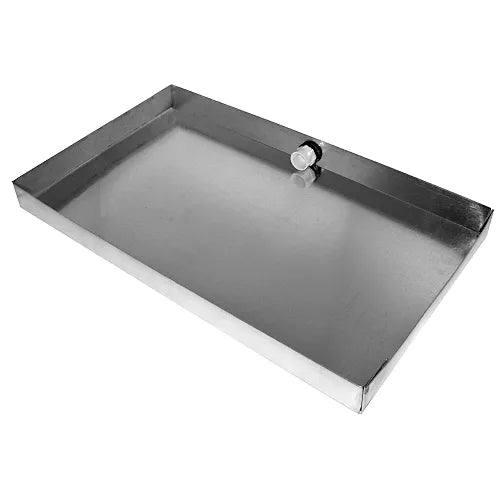

The Southwark Metal 137242424NH is a galvanized steel drain pan designed for use beneath air handlers and furnaces with coils. It measures 24 inches long by 24 inches wide and stands 2 inches deep, giving it enough capacity to catch condensate and prevent water damage to floors, ceilings, and equipment below. The pan is fabricated from hot-dipped galvanized steel meeting ASTM A653 CS Type B standards, which means it resists rust and corrosion in the damp conditions common to HVAC installations. The 24-gauge construction provides a solid, rigid structure that holds its shape under the weight of standard residential and light commercial air handling equipment. Folded corners add structural integrity and help contain any water that collects inside the pan. This model does not include a drain connection, making it a straightforward no-drain pan suitable for installations where a separate overflow solution is used or where a drain port is not required by local code. HVAC technicians and installers rely on drain pans like this one to meet building code requirements and protect property from condensate overflow. The 137242424NH is made in the USA, which supports faster availability through domestic supply chains. It ships as a single unit and is compatible with a wide range of residential and light commercial air handler and furnace-with-coil configurations. Southwark Metal is a recognized name in HVAC sheet metal products, and the 137 product family covers a broad range of drain pan sizes to fit standard equipment footprints. Whether you are replacing a corroded pan, installing a new system, or bringing an existing installation up to code, this drain pan provides a reliable, code-compliant solution.

• Hot-dipped galvanized steel construction per ASTM A653 CS Type B for long-lasting corrosion resistance
• Folded corners add rigidity and help contain condensate water securely within the pan
• Made in the USA and compatible with standard air handlers and furnaces with coils

Product Highlights

The Southwark Metal 137242424NH delivers a durable, 24-gauge galvanized no-drain pan in a 24 inches x 24 inches footprint with a 2-inch depth, built to protect HVAC installations from condensate damage in residential and light commercial applications.

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 137242424NH

Technical Specifications

• Length: 24 inches
• Width: 24 inches
• Depth: 2 inches
• Gauge: 24 GA
• Material: Hot-Dipped Galvanized Steel, ASTM A653 CS Type B
• Drain Connection: No Drain
• For Use With: Air Handler or Furnace with Coil
• Galvanized: Yes
• Weight: 5.108 pounds
• Country of Origin: USA
• Prop 65: Yes
• Unit of Measure: Each
