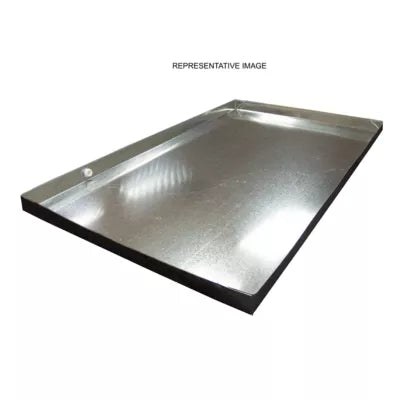

Southwark Metal 13723050nh Drain Pan 30x50 in 26 Gauge

Product Description

The SOUTHWARK METAL 13723050nh is a galvanized steel drain pan designed to collect condensate beneath HVAC equipment and prevent water damage to walls, ceilings, and structural components. Measuring 30 inches by 50 inches with a 2-inch depth, it provides ample capacity for typical residential and light commercial applications. Constructed from 26-gauge hot-dipped galvanized steel, the pan features folded corners and a hemmed edge for added rigidity and a leak-resistant profile. This is a no-drain configuration, meaning there is no pre-punched or threaded drain port. Licensed HVAC technicians and sheet metal tradespeople are the primary installers of this product.

This drain pan is suited for installation beneath air handlers, fan coils, and similar HVAC equipment mounted in attics, closets, or mechanical rooms where secondary condensate containment is required. The 30-inch by 50-inch footprint accommodates a wide range of residential and light commercial air-handling units. Its no-drain design is appropriate for installations where the authority having jurisdiction or the installer specifies a solid-bottom pan without a drain connection.

Key Features

• 30 inches x 50 inches footprint for wide equipment coverage
• 2-inch depth for substantial condensate containment capacity
• 26-gauge hot-dipped galvanized steel construction for corrosion resistance
• Folded corners and hemmed edges for structural rigidity and leak resistance
• No-drain configuration for solid-bottom containment applications

Compatibility

Designed as an OEM-style replacement or new-installation drain pan for residential and light commercial HVAC air handlers and fan coil units requiring a 30-inch by 50-inch secondary condensate pan.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal tradesperson. Disconnect and lock out all electrical power to the air-handling unit before positioning or servicing the drain pan. Ensure the unit is properly supported and level so condensate drains toward the pan and does not pool against equipment. Local mechanical codes, including applicable sections of the IMC or IRC, may specify minimum pan depth and secondary drain requirements for the jurisdiction.

Technical Specifications

• Length: 50 inches
• Width: 30 inches
• Depth: 2 inches
• Gauge: 26
• Material: Hot-dipped galvanized steel
• Drain: None (no-drain configuration)

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 13723050nh
