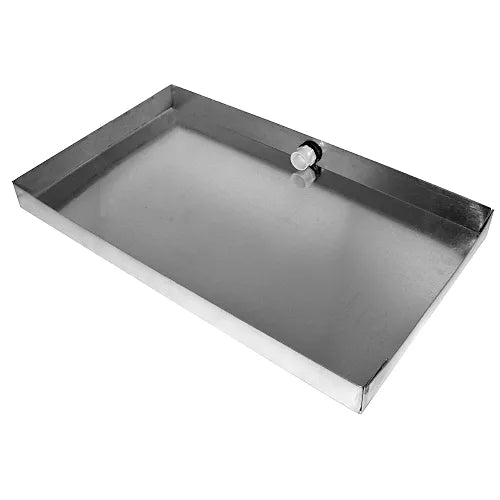

Southwark Metal 13722432 Galvanized Drain Pan 24 Inches X 32 Inches 2 Inches Deep

Product Description

The Southwark Metal 13722432 is a galvanized steel drain pan designed for use beneath air handlers and furnaces with coils. It catches condensate and prevents water damage to floors, ceilings, and equipment. HVAC technicians and installers rely on drain pans like this one during new installations and equipment replacements. This pan measures 24 inches in length by 32 inches in width and stands 2 inches deep on the short side. That depth gives it enough capacity to hold condensate during normal operation without overflow. The pan is formed from 26-gauge galvanized steel, which resists rust and corrosion in humid environments. The galvanized coating is critical in HVAC applications where standing water and condensation are constant concerns. A single 3/4 inch PVC drain fitting is included, making it easy to connect to a condensate drain line without sourcing a separate fitting. The drain connection is positioned for straightforward plumbing to a floor drain, condensate pump, or P-trap. This pan is manufactured in the USA, which is relevant for contractors working on projects with domestic sourcing requirements. It is sold as a single unit and is part of the Southwark Product Family 137, a line of sheet metal HVAC components. The 26-gauge construction offers a solid balance between rigidity and weight, keeping the pan at approximately 5.4 pounds. That makes it manageable for a single installer working in a tight mechanical room or attic space. HVAC technicians, mechanical contractors, and equipment installers will find this pan compatible with a wide range of residential and light commercial air handler setups.

• Measures 24 inches x 32 inches with a 2-inch depth for reliable condensate containment
• Constructed from 26-gauge galvanized steel for corrosion resistance in humid HVAC environments
• Includes a single 3/4 inch PVC drain fitting for quick condensate line connection

Product Highlights

The Southwark Metal 13722432 galvanized drain pan provides durable, rust-resistant condensate protection for air handlers and furnaces with coils. Its included 3/4 inch PVC drain fitting and 26-gauge galvanized steel construction make it a reliable, ready-to-install solution for HVAC professionals.

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 13722432

Technical Specifications

• Length: 24 inches
• Width: 32 inches
• Depth: 2 inches
• Material: Steel
• Gauge: 26 GA
• Galvanized: Yes
• Drain Connection Quantity: 1
• Drain Connection Size: 3/4 inches
• For Use With: Air Handler or Furnace with Coil
• Weight: 5.426 pounds
• Country of Origin: USA
• Prop 65: Yes
• UPC: 099274578049
