Southwark Metal 124_8IN Oval to Round Pipe Boot 8x8 Inch

Product Description

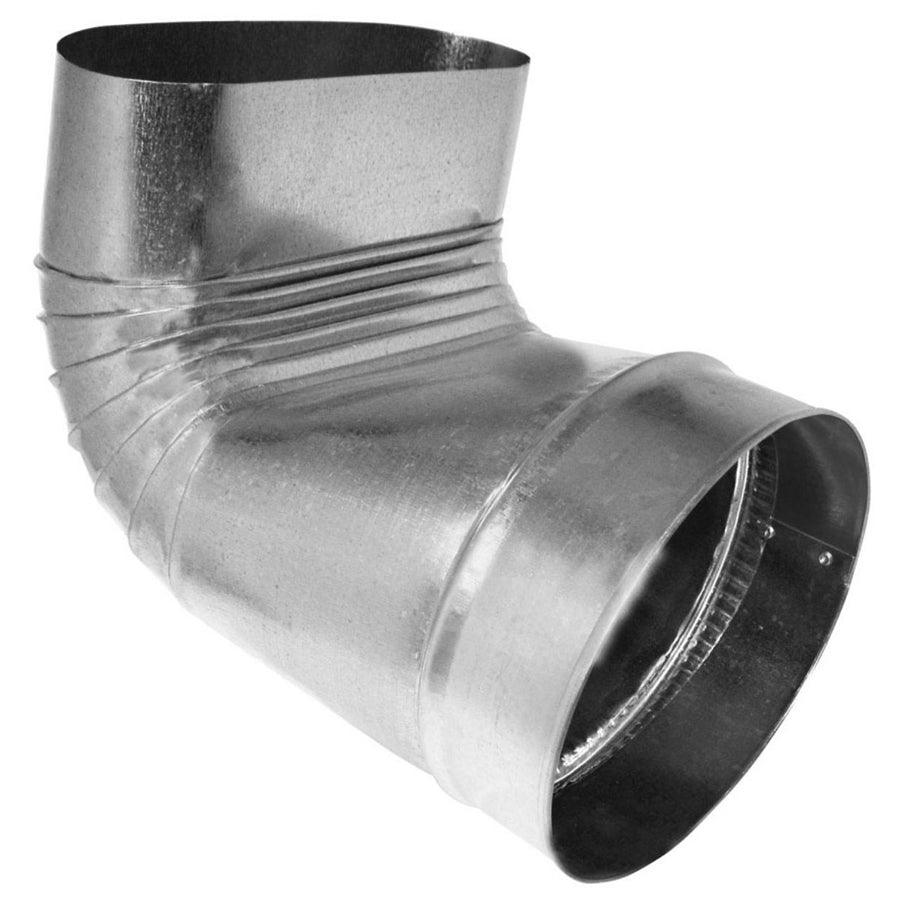

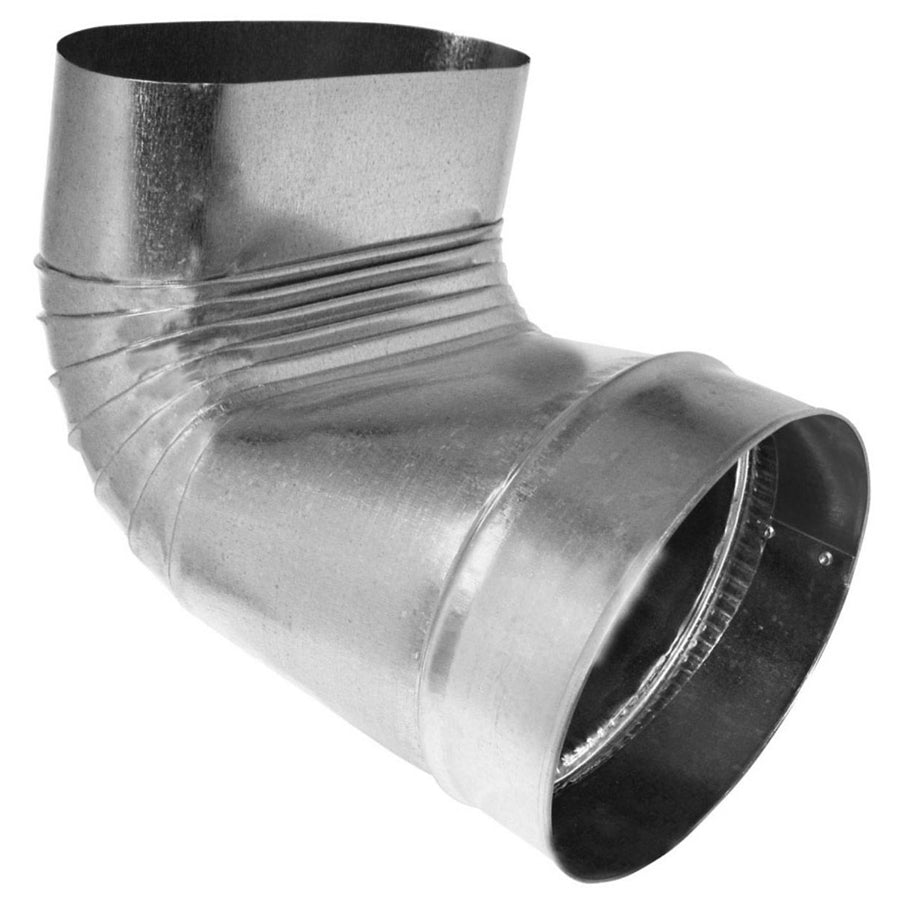

The SOUTHWARK METAL 124_8IN is a sheet metal pipe boot designed to transition ductwork from an oval profile to a round profile at a 90-degree elbow. Fabricated from hot dip galvanized steel, this fitting resists corrosion in attic, crawl space, and mechanical room environments. The crimp end allows direct connection to standard round duct without additional adapters. With an 8-inch by 8-inch diameter configuration, it fits common residential and light commercial duct runs where a direction change and shape transition are needed at the same fitting point. HVAC sheet metal mechanics and duct installers rely on this type of boot to simplify layout and reduce fitting count in tight installations.

This fitting is suited for forced-air HVAC duct systems in residential and light commercial applications where oval supply or return ductwork must transition to a round duct collar at a 90-degree offset. It is typically installed in trunk-and-branch layouts, wall stack assemblies, or floor plenum connections where space constraints require a combined elbow-and-transition fitting. The crimp end seats into round duct or takeoffs without special tooling beyond standard sheet metal hand tools.

Key Features

• Oval-to-round transition integrated with a 90-degree elbow in a single fitting
• Hot dip galvanized steel construction for corrosion resistance in humid or unconditioned spaces
• Crimp end for direct connection to 8-inch round duct without additional adapters
• 8-inch by 8-inch diameter sizing fits common residential trunk duct configurations
• Manufactured to ACCA and SMACNA applicable standards for duct fabrication

Compatibility

Designed as an OEM-style sheet metal fitting for forced-air HVAC duct systems requiring an oval-to-round, 90-degree elbow transition at an 8-inch by 8-inch diameter connection point.

Installation Notes

Installation should be performed by a qualified HVAC technician or sheet metal mechanic following SMACNA duct construction standards and local mechanical code requirements. Power down the air handler or furnace before working in the duct system. Seal all joints with UL 181-rated mastic or foil tape per local code after the fitting is secured. Do not use this fitting as a structural support for duct runs without independent hanger support.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Size A: 8 inches
• Size B: 8 inches diameter
• Type: Oval to Round, 90 Degree Elbow, Crimp
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 124_8IN
