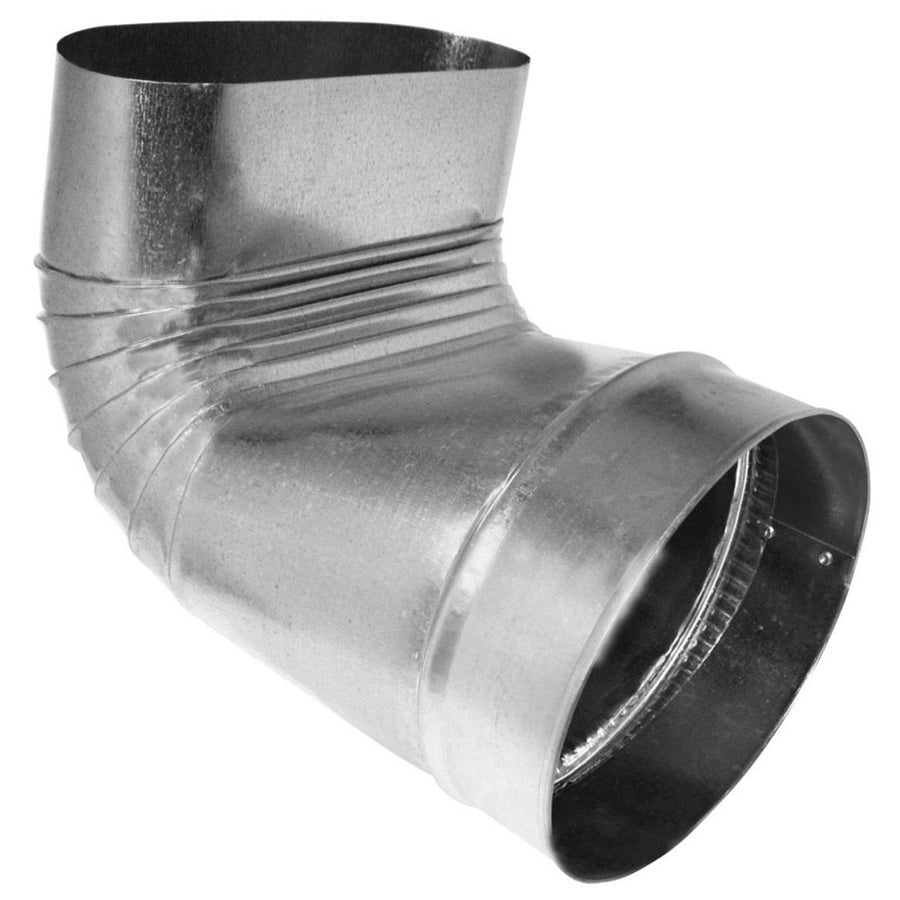

Southwark Metal 124-NC_6IN Oval Round Pipe Boot No Crimp 6 in

Product Description

The SOUTHWARK METAL 124-NC_6IN is a sheet metal pipe boot designed to transition from an oval duct profile to a round pipe in a single 90-degree elbow. Built from hot-dip galvanized steel, it resists corrosion in both exposed and concealed duct installations. The no-crimp end simplifies assembly by eliminating the need for separate crimping before connecting to adjacent fittings. This fitting is a standard component in low-pressure HVAC duct systems and is typically installed by licensed HVAC technicians or sheet metal contractors during new construction or duct retrofit work.

This pipe boot is suited for residential and light commercial HVAC duct installations where an oval supply or return trunk must transition to a 6-inch round branch run at a 90-degree offset. The 6-inch by 6-inch configuration matches common branch sizing used in forced-air heating and cooling systems. It is appropriate for use in above-ceiling, wall-cavity, and exposed mechanical room applications where galvanized steel duct fittings are specified.

Key Features

• Hot-dip galvanized steel construction for corrosion resistance in duct applications
• Oval-to-round transition with 90-degree elbow geometry for space-efficient routing
• No-crimp end design allows direct connection to standard round duct fittings without pre-crimping
• 6-inch by 6-inch sizing fits common residential and light commercial branch duct runs
• Meets ACCA and SMACNA applicable standards for sheet metal duct fabrication

Compatibility

Designed as an OEM-style sheet metal fitting for use in low-pressure forced-air HVAC duct systems requiring an oval-to-round 90-degree branch transition at 6-inch sizing.

Installation Notes

Installation should be performed by a licensed HVAC technician or sheet metal contractor in accordance with SMACNA duct construction standards. Shut down the air handling unit and isolate the duct section before cutting in or connecting this fitting. Secure all joints with sheet metal screws and seal with approved duct mastic or UL 181-rated tape per local mechanical code requirements. Avoid over-driving screws into the galvanized material, which can compromise the corrosion-resistant coating at the joint.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Size A: 6 inches
• Size B (Diameter): 6 inches
• Type: Oval to Round, 90 Degree Elbow, No Crimp
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 124-NC_6IN
