Southwark Metal 121SC10 Snaplock Collar 10 Inches

Product Description

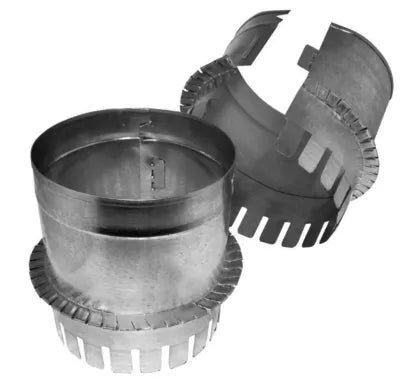

The SOUTHWARK METAL 121SC10 is a 10-inch snaplock collar used to connect round duct sections in forced-air HVAC systems. The snaplock design allows the collar to be assembled and locked into position without tools, reducing installation time on residential and light commercial ductwork runs. HVAC sheet metal installers and duct fabricators use this collar to create secure, low-leakage connections at duct takeoffs, transitions, and branch points throughout a duct system.

This snaplock collar is suited for residential and light commercial forced-air applications where a 10-inch round duct connection is required. It fits into standard trunk-to-branch connections, plenum takeoffs, and inline duct fittings. The collar is designed for use with standard 10-inch round spiral or snap-lock duct and is a common component in new construction and retrofit ductwork installations.

Key Features

• 10-inch diameter fits standard round duct connections
• Snaplock construction allows tool-free field assembly
• Designed for low-leakage duct connections in forced-air systems
• Suitable for residential and light commercial HVAC ductwork
• Compatible with trunk-to-branch, plenum takeoff, and inline applications

Compatibility

Designed as an OEM-style replacement and standard-fit component for 10-inch round duct systems in residential and light commercial forced-air HVAC installations.

Installation Notes

Installation is performed by licensed HVAC technicians or sheet metal installers. Power down the air handling unit before working on any connected ductwork. Ensure duct sections are properly aligned before engaging the snaplock mechanism, and seal all joints with code-compliant duct sealant or UL 181-rated tape per local mechanical code requirements.

Technical Specifications

• Diameter: 10 inches
• Connection Type: Snaplock

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 121SC10
