Southwark Metal 116_7IN Oval Duct Elbow 90 Degree 7x7

Product Description

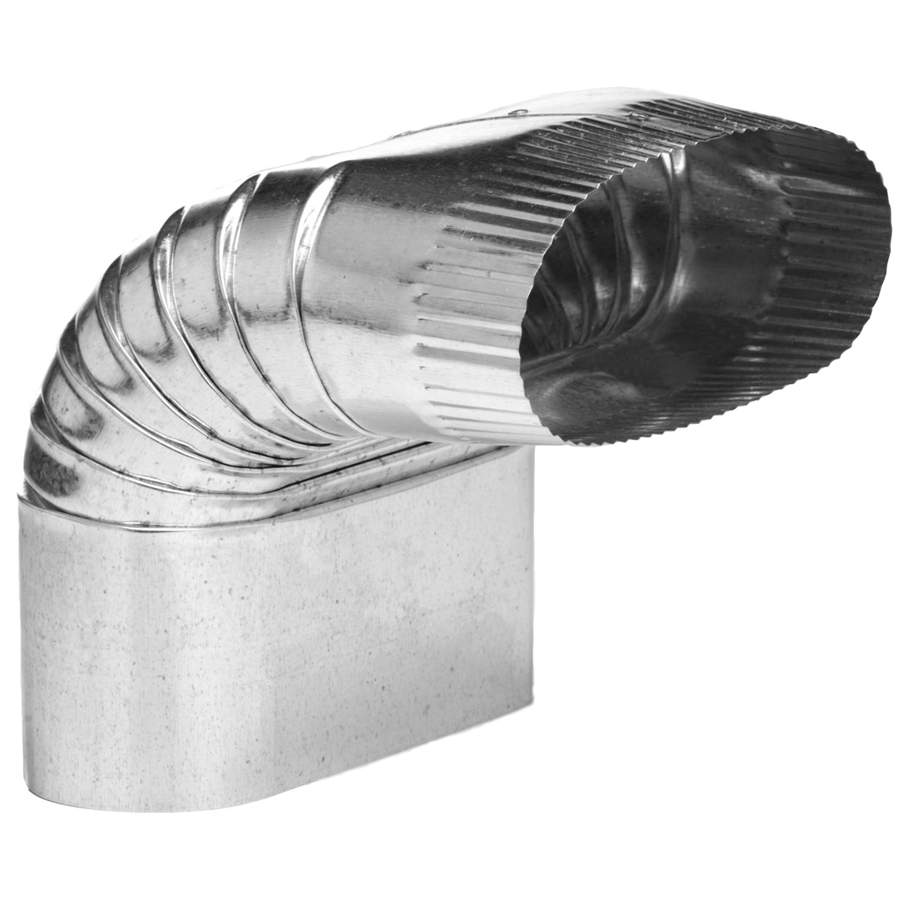

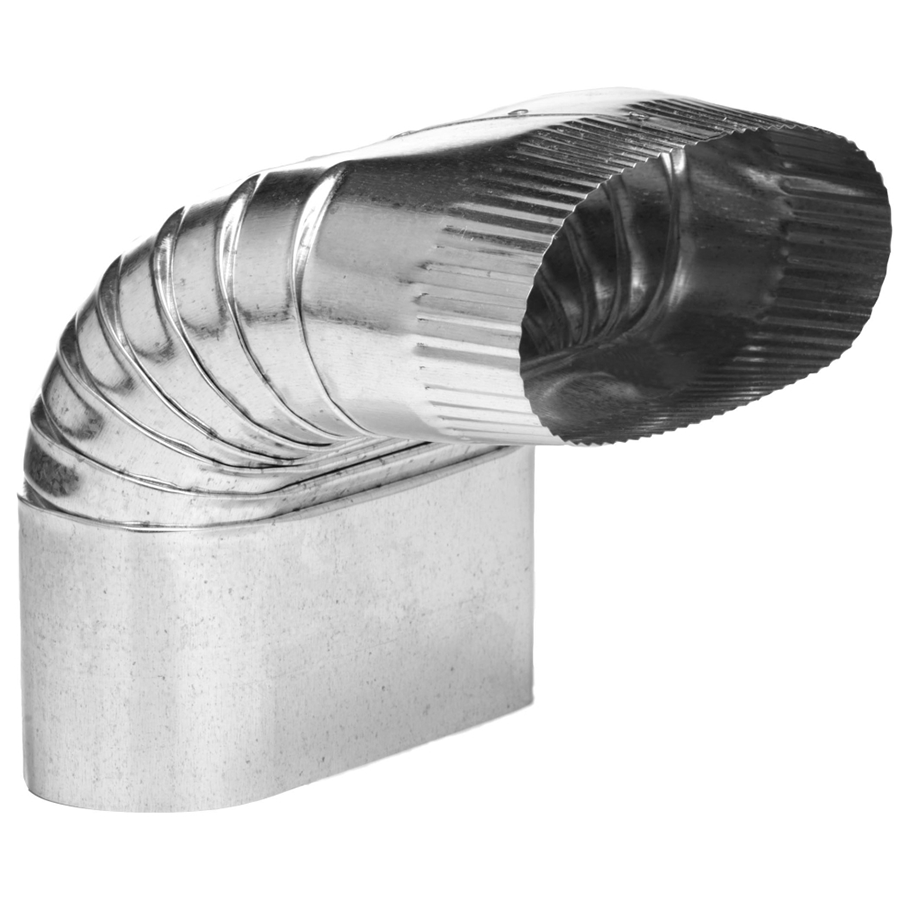

The SOUTHWARK METAL 116_7IN is a 90-degree oval sheet metal duct elbow designed for vertical shortway transitions in residential and light commercial HVAC duct systems. Fabricated from hot dip galvanized steel, this fitting delivers corrosion resistance and structural integrity in forced-air distribution applications. The oval profile and shortway configuration make it well suited for tight-clearance installations where a standard radius elbow will not fit. HVAC sheet metal mechanics and duct installers use this fitting to redirect airflow at 90-degree turns in oval duct runs without fabricating custom transitions on site.

This elbow is used in supply and return duct systems where oval ductwork is specified for low-profile ceiling, wall, or floor applications. The shortway orientation reduces the depth required at the turn, which is useful in framed cavities and mechanical rooms with limited space. Both dimensions measure 7 inches, making this a square-throat fitting for uniform oval cross-sections throughout the duct run. It meets ACCA and SMACNA standards for sheet metal duct fittings.

Key Features

• 90-degree angle for standard right-angle duct transitions
• Shortway configuration reduces installation depth in tight spaces
• Oval profile compatible with low-profile oval duct systems
• Hot dip galvanized steel construction resists corrosion in conditioned air environments
• Meets ACCA and SMACNA applicable standards for sheet metal duct fittings
• 7 inches x 7 inches throat dimensions for consistent cross-section through the turn

Compatibility

Designed as an OEM-style sheet metal fitting for oval duct systems requiring a 90-degree vertical shortway elbow at a 7 inch by 7 inch throat size.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal mechanic following SMACNA duct construction standards and local mechanical code requirements. Power down the air handling unit before connecting duct fittings and sealing joints. Use approved duct sealant or mastic and mechanical fasteners at all seams and connections per ACCA and SMACNA guidelines. Verify that duct sizing and fitting orientation match the system design before securing the fitting in place.

Technical Specifications

• Angle: 90 degrees
• Size A: 7 inches
• Size B: 7 inches
• Type: Shortway, Vertical, Oval
• Material: Hot Dip Galvanized Steel
• Applicable Standard: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 116_7IN
