Southwark Metal 116_6IN Duct Angle Oval Vertical 90 Degree 6x6

Product Description

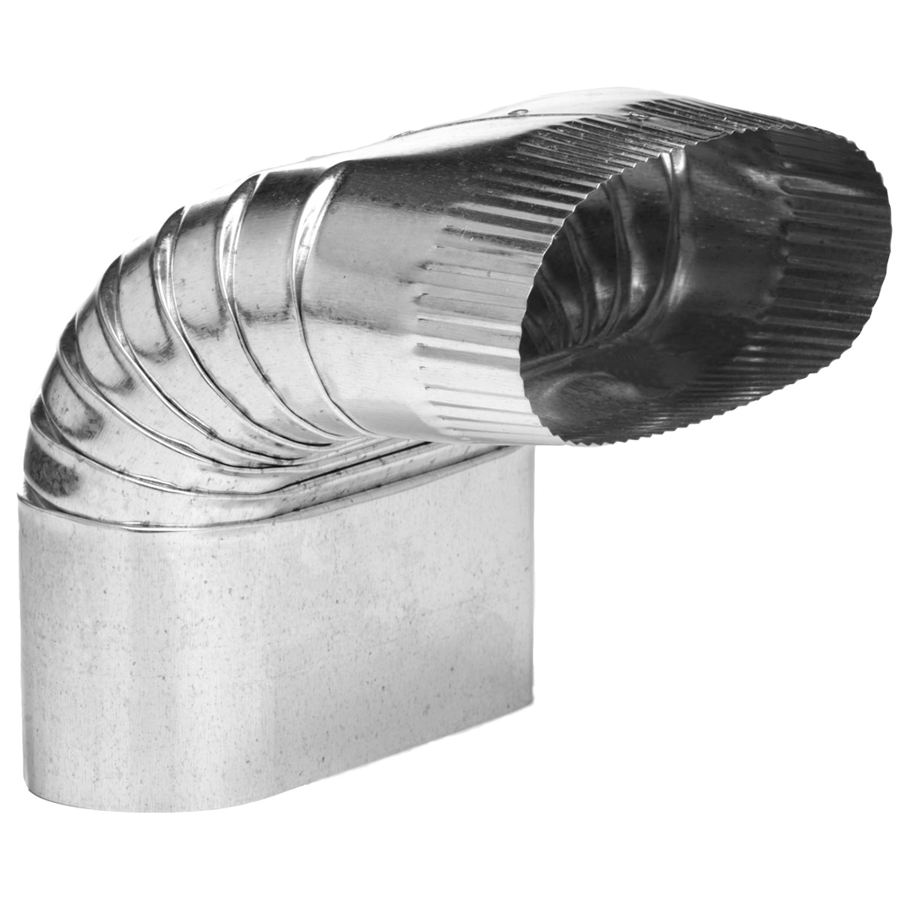

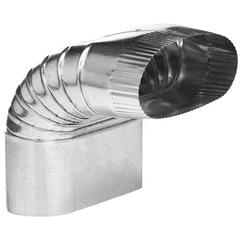

The SOUTHWARK METAL 116_6IN is a shortway, vertical, oval 90-degree duct angle fitting fabricated from hot dip galvanized steel. It measures 6 inches by 6 inches and is designed to redirect airflow in low-clearance ductwork installations where a shortway turn is required. This fitting meets ACCA and SMACNA standards, making it suitable for use in code-compliant residential and commercial HVAC systems. Sheet metal fabricators, HVAC installers, and mechanical contractors typically specify this type of fitting when routing oval duct through tight vertical transitions.

This duct angle is used in forced-air HVAC ductwork systems where an oval configuration is required at a 90-degree vertical turn. The shortway geometry is chosen when installation space is limited in the direction of the turn. It is appropriate for new construction and retrofit applications in residential and light commercial buildings. Installers working with oval trunk lines or branch runouts will find this fitting suited to vertical drops and transitions where rectangular or round fittings are not an option.

Key Features

• Hot dip galvanized steel construction provides corrosion resistance for long service life
• 90-degree angle for precise directional changes in ductwork layout
• Shortway configuration allows installation in space-constrained areas
• Vertical oval profile designed for low-clearance duct routing
• Meets ACCA and SMACNA applicable standards for sheet metal ductwork
• 6 inch by 6 inch sizing integrates with standard oval duct sections

Compatibility

Designed as an OEM-style sheet metal fitting for use with 6 inch by 6 inch oval ductwork systems in residential and light commercial HVAC installations built to ACCA and SMACNA standards.

Installation Notes

Installation is performed by licensed HVAC technicians or sheet metal mechanics. Shut down and de-energize the air handling unit before modifying any duct section. Secure the fitting with sheet metal screws and seal all joints with UL-listed duct mastic or foil tape in accordance with SMACNA guidelines. Use appropriate sheet metal tools including aviation snips and a hand seamer for field adjustments.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Angle: 90 Degree
• Type: Shortway, Vertical, Oval
• Size A: 6 inches
• Size B: 6 inches
• Applicable Standard: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 116_6IN
