Southwark Metal 115_8IN Oval Duct Angle 45 Degree 8 Inch

Product Description

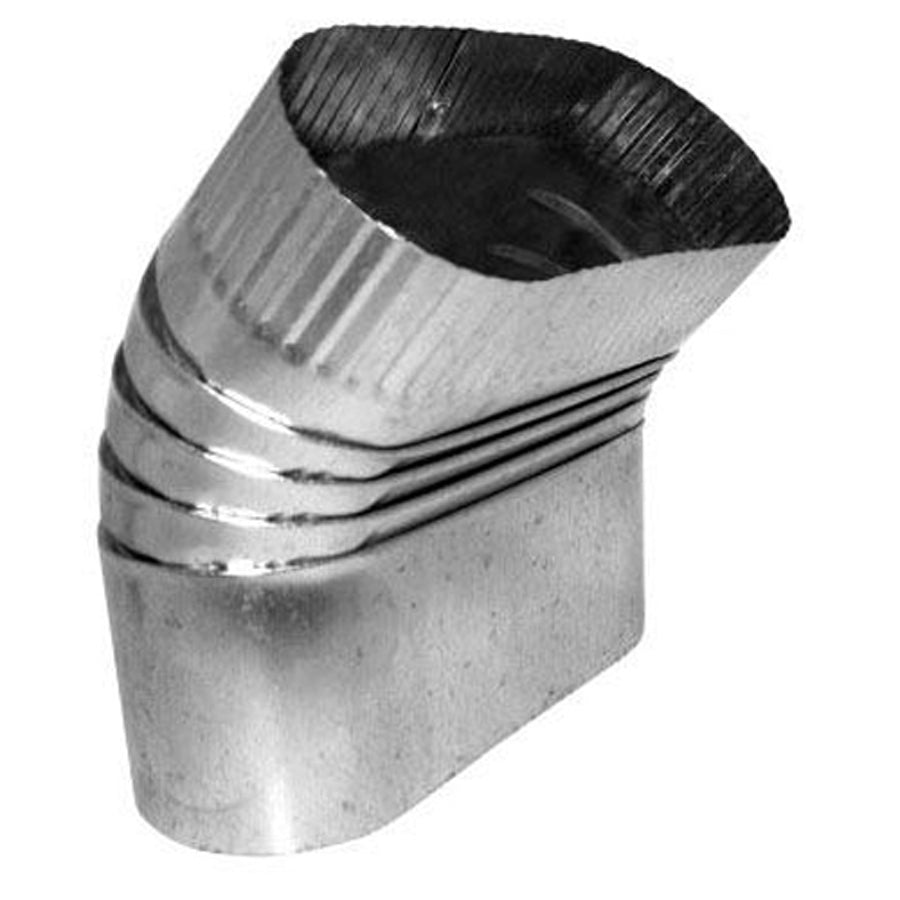

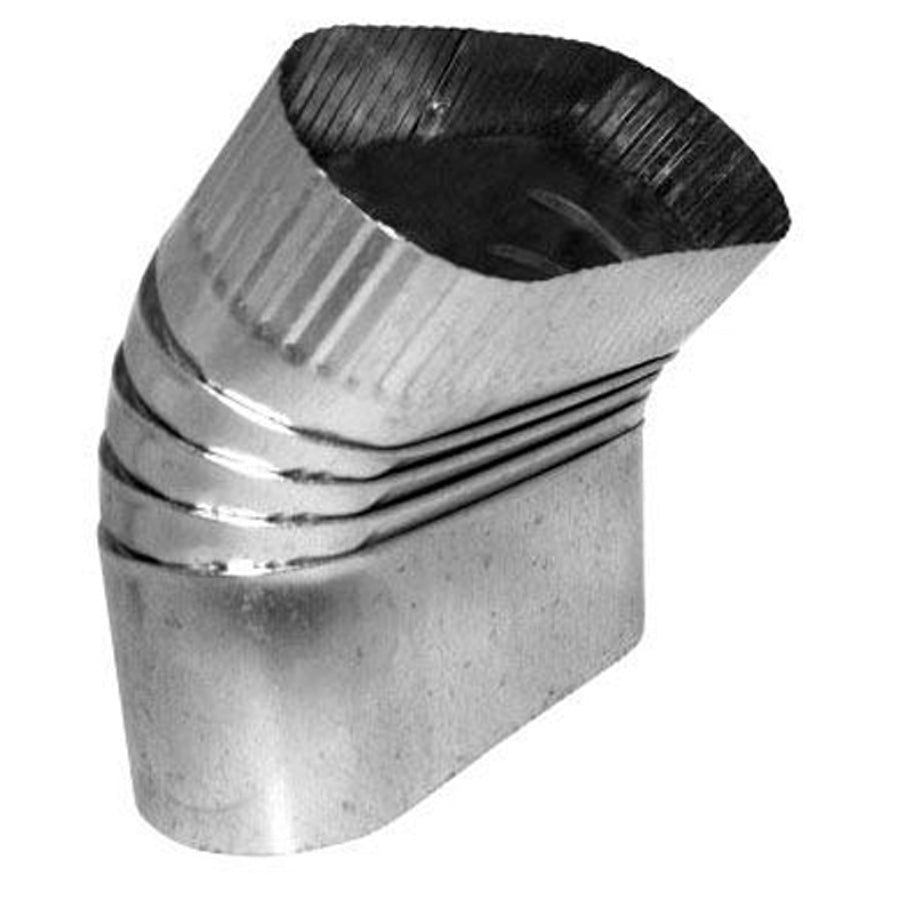

The SOUTHWARK METAL 115_8IN is a 45-degree sheet metal duct angle fitting designed for oval vertical ductwork installations. Fabricated from hot-dip galvanized steel, this shortway oval angle connects and redirects airflow in low-pressure residential and light commercial HVAC duct systems. The 45-degree angle allows for direction changes where a full 90-degree elbow is not required. Both Size A and Size B measure 8 inches in diameter. Licensed HVAC technicians and sheet metal contractors install this fitting as part of supply or return air trunk and branch duct assemblies.

This fitting is suited for vertical shortway oval duct configurations in forced-air heating and cooling systems. The oval geometry is commonly used in applications where ceiling or wall cavity depth is limited. The hot-dip galvanized steel construction provides corrosion resistance appropriate for conditioned-space ductwork. This angle fitting is manufactured to ACCA and SMACNA standards, making it compatible with duct systems designed and installed to those industry specifications.

Key Features

• 45-degree angle for direction changes in oval duct runs
• Hot-dip galvanized steel construction for corrosion resistance
• Shortway oval configuration for space-constrained installations
• 8-inch diameter on both inlet and outlet (Size A and Size B)
• Manufactured to ACCA and SMACNA applicable standards

Compatibility

Designed as an OEM-style sheet metal duct fitting for vertical shortway oval duct systems built to ACCA and SMACNA standards in residential and light commercial forced-air HVAC applications.

Installation Notes

Installation should be performed by a licensed sheet metal contractor or HVAC technician in accordance with SMACNA duct construction standards and local mechanical codes. Shut down the air handler or furnace and ensure the system is de-energized before working on ductwork connections. Seal all joints with listed duct sealant or UL 181-rated tape per applicable code requirements. Do not exceed the pressure class rating of the duct system when selecting fittings.

Technical Specifications

• Angle: 45 degrees
• Type: Vertical, Shortway, Oval
• Size A: 8 inches diameter
• Size B: 8 inches diameter
• Material: Hot-Dip Galvanized Steel
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 115_8IN
