Southwark Metal 115_6IN Duct Angle Oval 45 Degree 6x6

Product Description

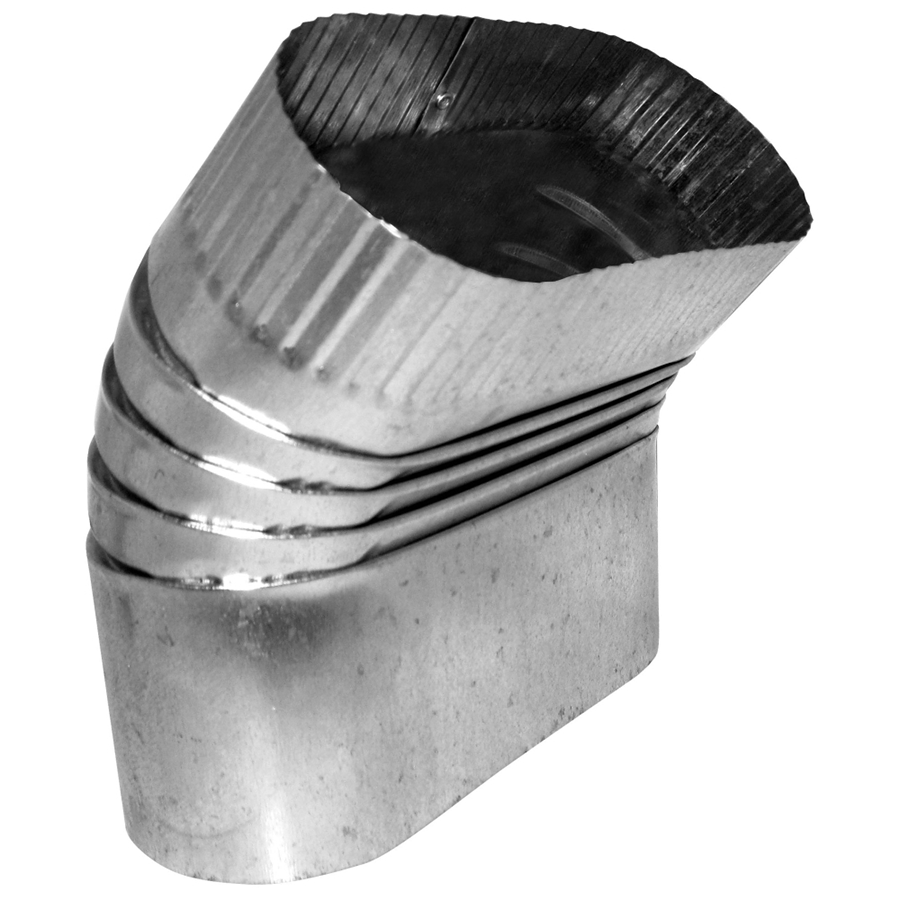

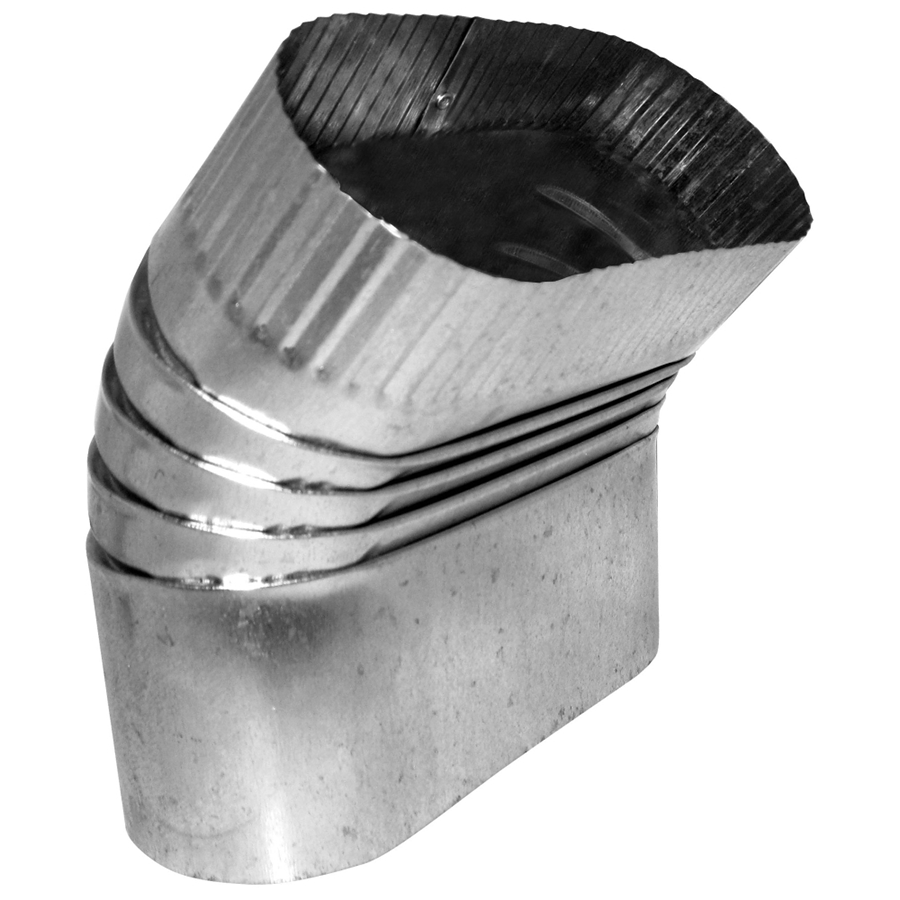

The SOUTHWARK METAL 115_6IN is a 45-degree sheet metal duct angle fitting designed for shortway, vertical oval duct transitions. Fabricated from hot dip galvanized steel, this fitting delivers corrosion resistance suited to both new construction and retrofit duct installations. Sized at 6 inches by 6 inches, it conforms to ACCA and SMACNA standards, making it an appropriate choice for duct systems that must meet recognized industry specifications. HVAC sheet metal mechanics and duct installers work with this type of fitting when routing supply or return ductwork through tight vertical angles in residential and light commercial applications.

This fitting is used in oval duct systems where a shortway 45-degree vertical turn is required. Shortway configurations direct airflow through a tighter radius bend, which is often necessary when navigating framing bays, floor joists, or confined mechanical chases. The hot dip galvanized steel construction holds up in attic, crawlspace, and basement environments where moisture and temperature swings are common. Sheet metal contractors and HVAC installers specify this fitting when building or modifying duct runs that must conform to ACCA Manual D layout requirements or SMACNA duct construction standards.

Key Features

• 45-degree angle for shortway vertical oval duct transitions
• Hot dip galvanized steel construction for corrosion resistance
• 6 inch x 6 inch sizing fits standard oval duct dimensions
• Conforms to ACCA and SMACNA applicable standards
• Shortway design suited for space-constrained duct routing

Compatibility

Designed as an OEM-style sheet metal fitting for use in residential and light commercial oval duct systems requiring a shortway vertical 45-degree angle transition.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal mechanic. The duct system should be fully de-energized and any associated air handling equipment shut off before fitting installation or modification. Secure connections with sheet metal screws and seal all joints with UL 181-rated mastic or foil tape in accordance with SMACNA duct construction guidelines. Follow local mechanical codes and ACCA Manual D requirements for duct layout and airflow balancing.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Angle: 45 degrees
• Size A: 6 inches
• Size B: 6 inches
• Type: Shortway, Vertical, Oval
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 115_6IN
