Southwark Metal 114_6IN 90 Degree Oval Elbow 6 Inch

Product Description

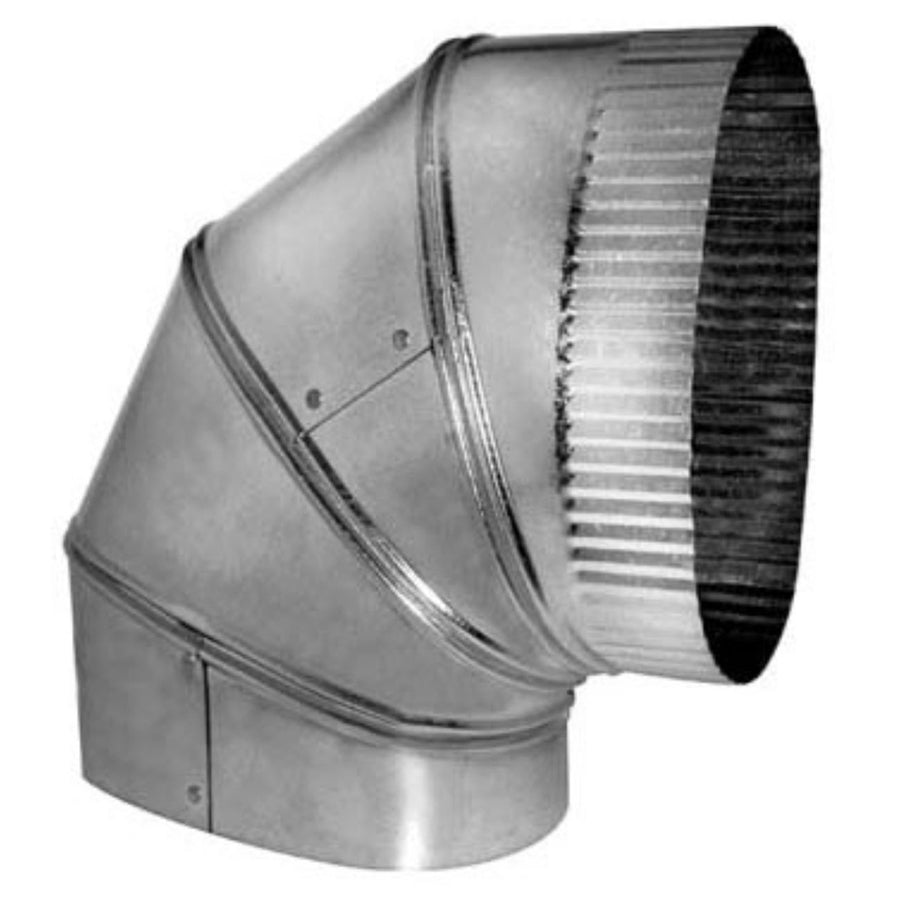

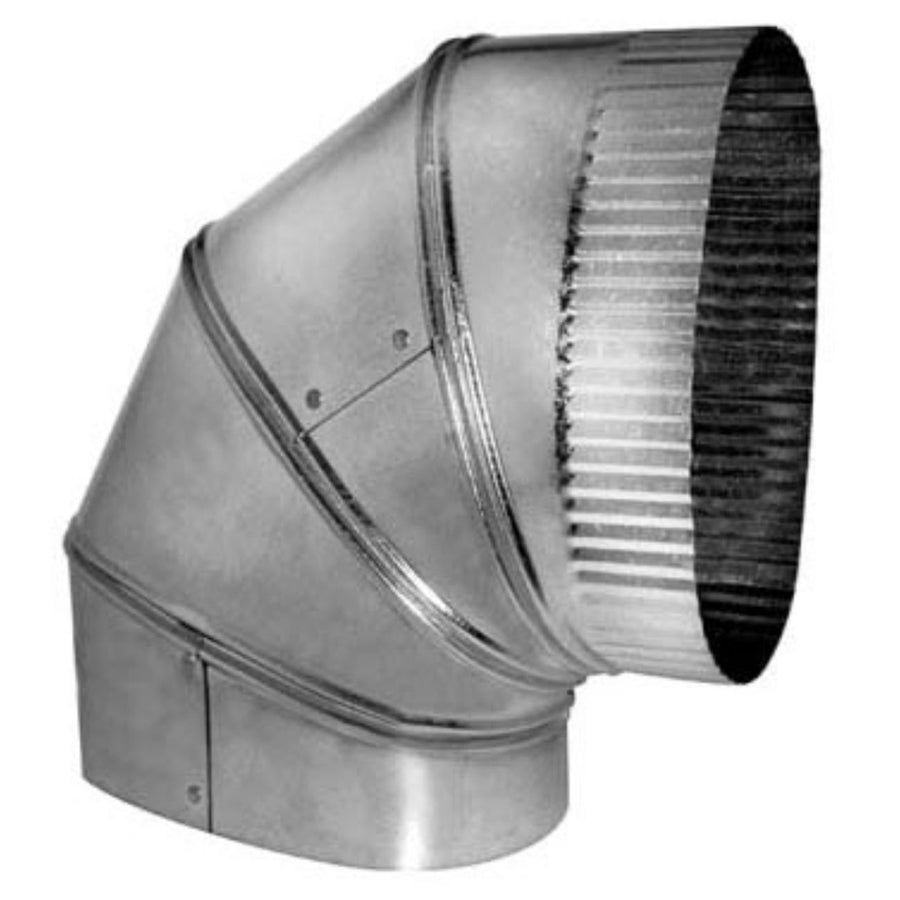

The SOUTHWARK METAL 114_6IN is a 90-degree oval duct elbow fabricated from hot dip galvanized steel. It is designed for use in sheet metal ductwork systems where a flat-oval profile is required to navigate directional changes within a horizontal run. This fitting ships in a 6 inch by 6 inch size and is built to the Broadway longway oval configuration, making it suitable for low-clearance ceiling and wall chase installations. Licensed HVAC sheet metal technicians and mechanical contractors are the primary installers of this type of fitting.

This elbow is used in residential and light commercial forced-air HVAC duct systems where space constraints require a flat oval duct profile rather than round. It is appropriate for supply and return air trunk lines routed through floor joists, dropped ceilings, or tight mechanical spaces. The 90-degree turn angle allows direct direction changes in horizontal duct runs without field fabrication. Compliance with ACCA and SMACNA standards makes it suitable for use on projects requiring documented duct system performance.

Key Features

• 90-degree angle for direct horizontal directional changes in oval duct runs
• Hot dip galvanized steel construction for corrosion resistance in conditioned air applications
• Flat oval Broadway longway profile accommodates low-clearance installation environments
• 6 inch by 6 inch sizing fits standard oval duct trunk dimensions
• Meets ACCA and SMACNA applicable standards for duct system fabrication

Compatibility

Designed as an OEM-style sheet metal duct fitting for use with flat oval duct systems conforming to ACCA and SMACNA fabrication standards in residential and light commercial forced-air HVAC applications.

Installation Notes

Installation should be performed by a licensed HVAC technician or sheet metal mechanic in accordance with SMACNA duct construction standards and applicable local mechanical codes. The air handling system should be powered down and the supply fan disabled before connecting or sealing fittings into the duct system. Joints should be secured with sheet metal screws and sealed with UL 181-listed mastic or metal foil tape as required by the project specification. Do not use cloth-backed duct tape as a primary sealant on galvanized sheet metal duct fittings.

Technical Specifications

• Angle: 90 degrees
• Size A: 6 inches
• Size B: 6 inches
• Type: Flat, Broadway, Longway, Oval
• Material: Hot Dip Galvanized Steel
• Applicable Standard: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: 114_6IN
